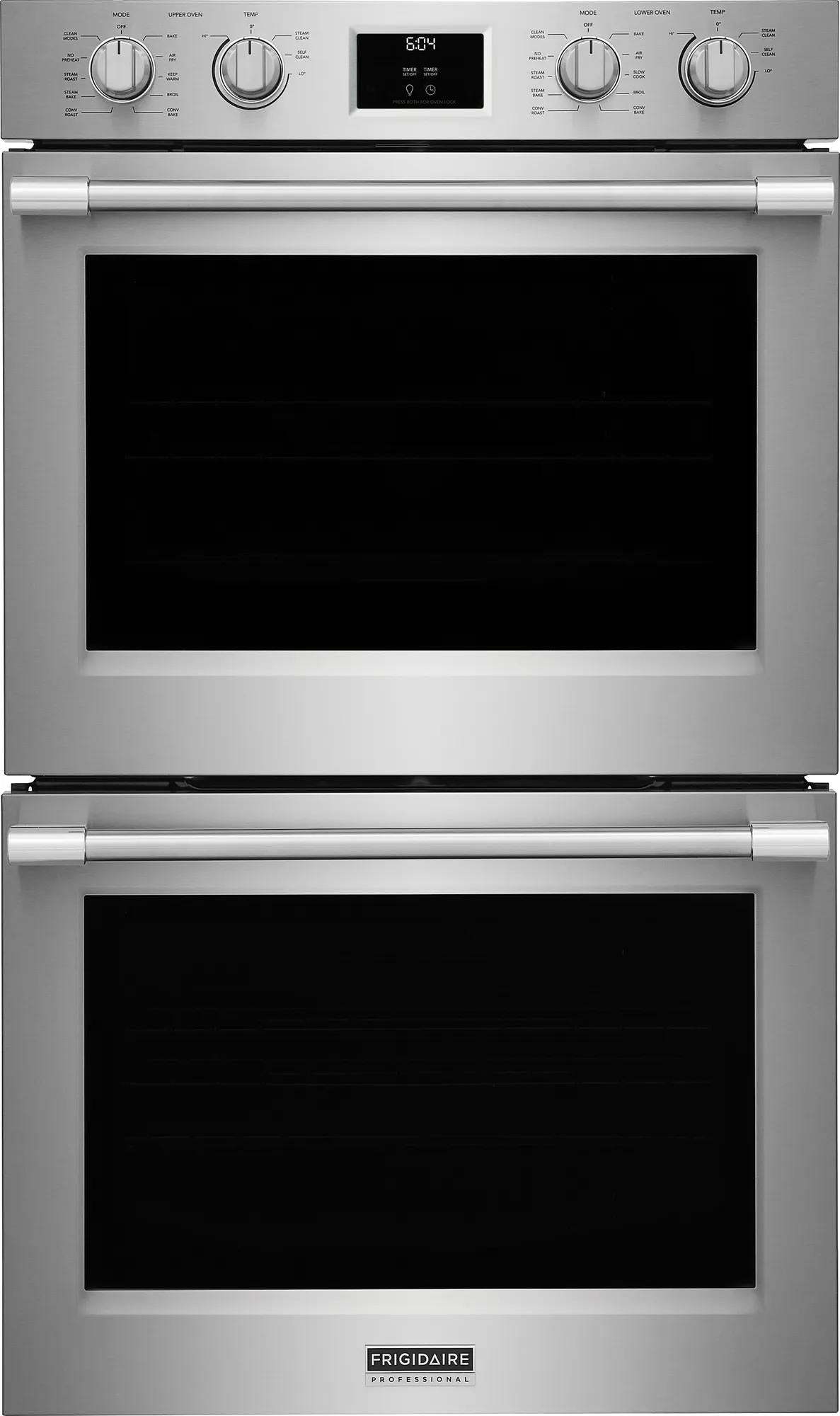

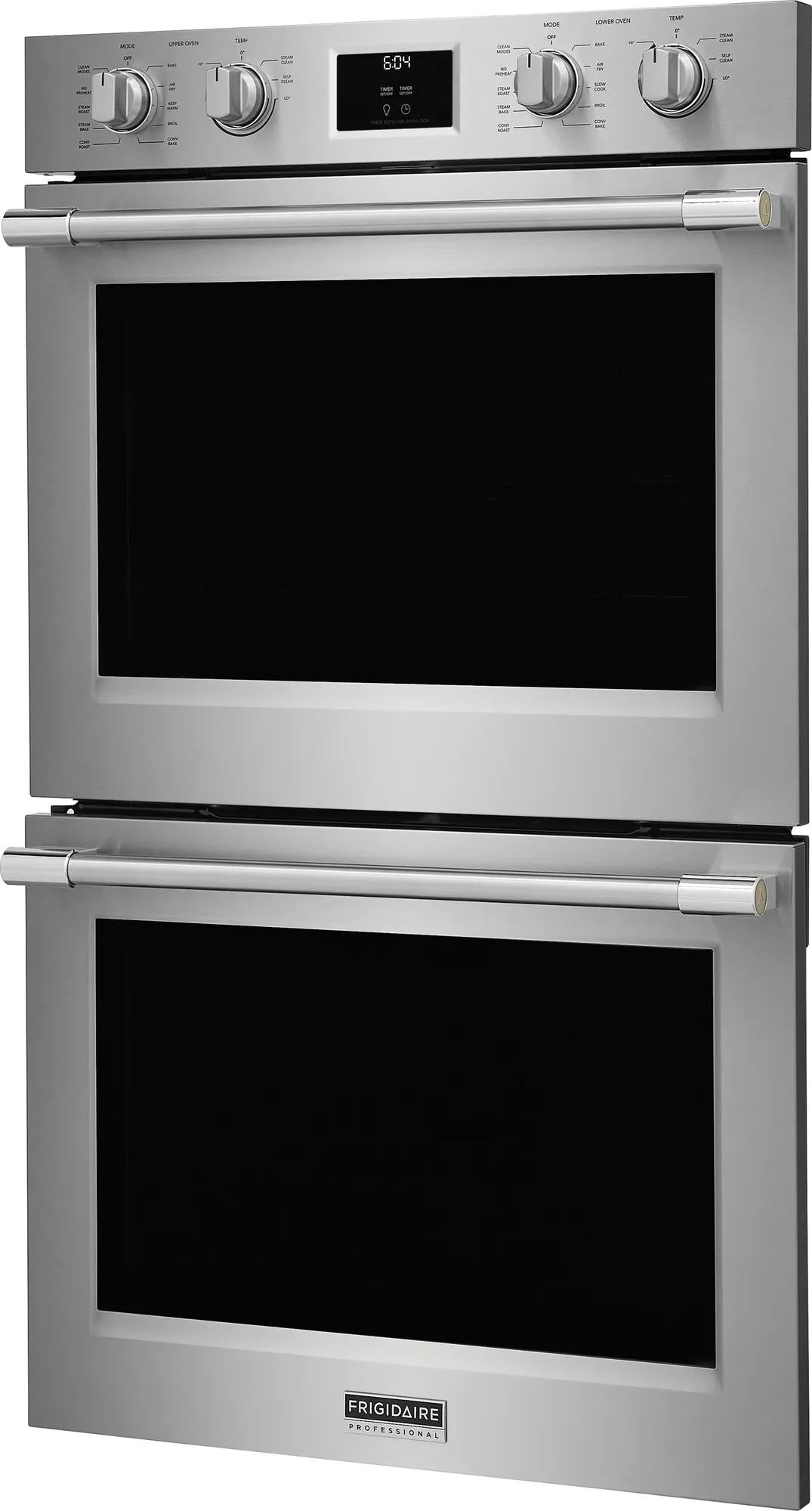

Frigidaire PCWD3080AF 30 inches Double Wall Oven with Total Convection

Product Description

The Frigidaire PCWD3080AF 30" Double Wall Oven with Total Convection features the Total Convection system, enabling cooking modes like Air Fry, No Preheat, Slow Cook, Steam Bake, and Convection Bake. It includes a temperature probe and the ReadyCook Air Fry Tray. The oven has a combined 10.6 cu. ft. capacity and a Smudge-Proof Stainless Steel finish.

• Features Total Convection system for versatile cooking modes.
• Includes temperature probe and ReadyCook Air Fry Tray.
• Offers a combined 10.6 cu. ft. oven capacity.

Product Highlights

This Frigidaire double wall oven provides multiple cooking options and a large capacity, with convenient features for ease of use and cleaning.

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: PCWD3080AF

Technical Specifications

• Controls Control Lock: Yes
• Controls Sabbath Mode: Yes
• Cooking Controls Air Fry: Yes
• Cooking Controls Bake: Yes
• Cooking Controls Broil: Yes
• Cooking Controls Cancel: Yes
• Cooking Controls Child Lock: Yes
• Cooking Controls Clear Off: Yes
• Cooking Controls Clock: Yes
• Cooking Controls Convection Bake: Yes
• Cooking Controls Convection Roast: Yes
• Cooking Controls Delay Clean: Yes
• Cooking Controls Delay Start: Yes
• Cooking Controls Fast Preheat: Yes
• Cooking Controls Keep Warm: Yes
• Cooking Controls Kitchen Timer: Yes
• Cooking Controls Light: Yes
• Cooking Controls My Favorite: Yes
• Cooking Controls No Preheat: Yes
• Cooking Controls Off: Yes
• Cooking Controls Oven Light: Yes
• Cooking Controls Preheat: Yes
• Cooking Controls Probe: Yes
• Cooking Controls Quick Preheat: Yes
• Cooking Controls Self Clean: Yes
• Cooking Controls Set Clock: Yes
• Cooking Controls Slow Cook: Yes
• Cooking Controls Start: Yes
• Cooking Controls Steam Bake: Yes
• Cooking Controls Steam Clean: Yes
• Cooking Controls Steam Roast: Yes
• Cooking Controls Stop: Yes
• Cooking Controls Temperature Display: Yes
• Cooking Controls Timer On / Off: Yes
• Cooking Controls User Preferences: Yes
• Cooking Controls Function Change between Continuous Bake Setting or 12-Hour Energy Saving Feature: Yes
• Cooking Controls Function Delayed Bake: Yes
• Cooking Controls Function Program Fahrenheit or Celsius: Yes
• Cooking Controls Function Silent Control Panel: Yes
• Dimensions and Volume Depth With Door 90° Open: 48 3/16"
• Dimensions and Volume Depth With Handle: 27 3/5"
• Dimensions and Volume Lower Oven Interior Height: 18 1/8"
• Dimensions and Volume Lower Oven Interior Width: 25 1/5"
• Dimensions and Volume Lower Oven Interior Depth: 19 7/8"
• Dimensions and Volume Upper Oven Interior Height: 18 1/8"
• Dimensions and Volume Upper Oven Interior Width: 25 1/5"
• Dimensions and Volume Upper Oven Interior Depth: 19 7/8"
• Dimensions and Volume Minimum Cutout Height: 48 7/8"
• Dimensions and Volume Minimum Cutout Width: 28 1/2"
• Dimensions and Volume Maximum Cutout Height: 50 1/4"
• Dimensions and Volume Maximum Cutout Width: 29"
• Dimensions and Volume Oven Lower Capacity: 5.3 Cu. Ft.
• Dimensions and Volume Oven Upper Capacity: 5.3 Cu. Ft.
• Dimensions and Volume Total Capacity: 10.6 Cu. Ft.
• Display Display Interface Color: White
• Display Display Light Color: White
• Display Display Type: Capacitive Touch
• Electrical Specifications Amps @ 240 Volts: 40 Amps
• Electrical Specifications Connected Load @ 240V: 9 kW
• Electrical Specifications Minimum Circuit Required: 40 Amps
• Electrical Specifications Voltage Rating: 240 V
• Exterior Exterior Finish: Smudge-Proof® Stainless Steel
• General Specifications Frigidaire Fit Promise: Yes
• General Specifications Prop 65 Label: Yes
• Installation Power Supply Connection Location: Top Left
• Oven Bake Element: 2500 Watts
• Oven Bake Element Pass: 8
• Oven Bake Element Type: Hidden
• Oven Broil Element: 4000 Watts
• Oven Broil Element Pass: 6
• Oven Broil System: Yes
• Oven Cleaning System: Yes
• Oven Convection: Yes
• Oven Convection Element: 3800 Watts
• Oven Convection Type: Total
• Oven Number of Convection Fans: 1
• Oven Number of Rack Positions: 6
• Oven Interior Color: Midnight Black
• Oven Oven Light Quantity: 2
• Oven Oven Light Type: Halogen
• Oven Oven Light Watts: 40 Watts
• Oven Rack Position Type: Embossed
• Oven Rack Type 1: Handle
• Oven Rack Type 1 Quantity: 4
• Oven Rack Type 2: Glide
• Oven Rack Type 2 Quantity: 1
• Oven Rack Type 3: Air Fry Tray
• Oven Rack Type 3 Quantity: 1
• Safety Certifications and Approvals CSA Listed: Yes
• Safety Certifications and Approvals RoHS: Yes
• Safety Certifications and Approvals UL Listed: Yes
• Brand Name: Electrolux
• Model Info: PCWD3080AF
• Capacity: 5.3 Cubic Feet
• Installation Type: Wall Mount
• Special Features: Double Wall
• Oven Cooking Mode: Convection
• Voltage: 240 Volts
• Wattage: 9000 watts
• Fuel type: Electric
• Defrost: Auto Defrost
• Material Type: Stainless Steel
• Included Components: Stainless Steel
• Batteries Required?: No
• Style: Double Wall Electric Oven
• Energy Star: No
• ADA Compliant: No
• Nominal Width In Inches: 30"
• Cooking Oven Has Hidden Bake Elmt: True
• Cooking Oven Has Self Clean: True
• Cooking Oven Convection: True
• Cooking Oven Has Proof Mode: True
• Appliance Oven Rack Type: Roller
• Has Sabbath Mode: True
• Power Type: Electric 240v
• Product Line: Double Wall Oven
• Size: 30"
