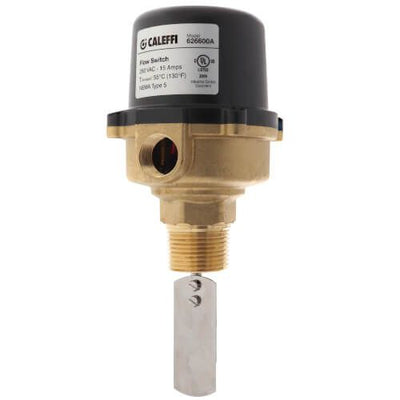

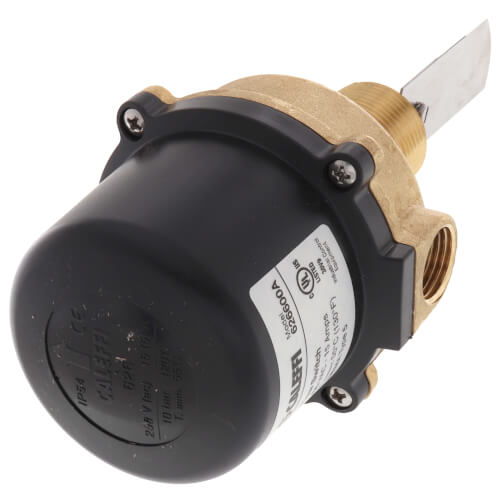

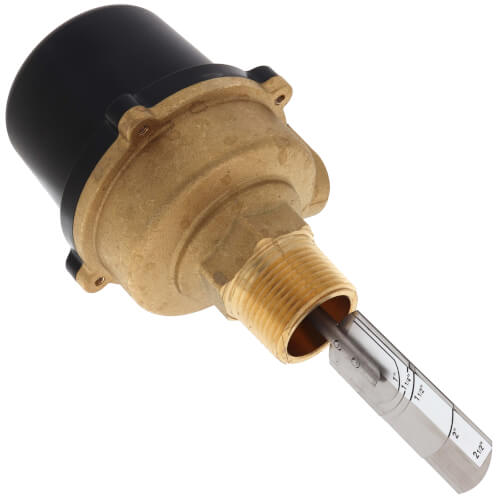

Caleffi 626600A Flow Switch 1 MNPT UL Listed

Product Description

The Caleffi 626600A flow switch is a critical component for controlling the flow of liquids in industrial and commercial applications. It features a 1 MNPT connection and is UL listed for safety and reliability.

• 1 MNPT connection for easy installation
• UL listed for safety and compliance
• Rugged construction for durability

Product Highlights

This flow switch is designed for use in chilled water systems, heating systems, HVAC equipment, industrial machinery, and water treatment systems. It helps prevent damage to pumps and other equipment by monitoring flow rates, provides accurate flow measurement for process control, protects against dry running and cavitation, and saves energy by optimizing pump operation.

Product Information

Standard Information

• Brand: Caleffi
• Item Number: 626600A

Technical Specifications

• Connection Type: Male Threaded
• Switch Rating: 15 A
• Max Pressure: 150 psi
• Min Flow: 5.7 GPM
• Max Temp: 250°F
• Working Pressure: 150 psi
• Working Temperature Range: -20 to 250°F
• Switch Contacts: NO or NC
• Certifications: cUL, NEMA Type 5, IP 54
