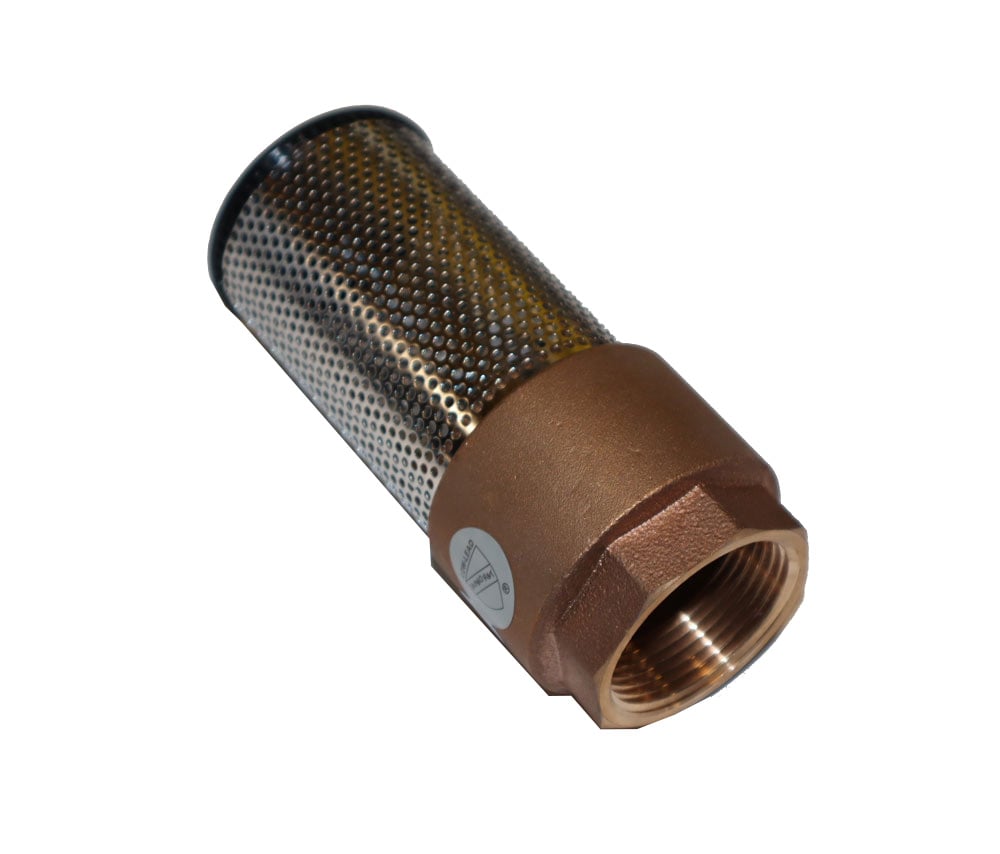

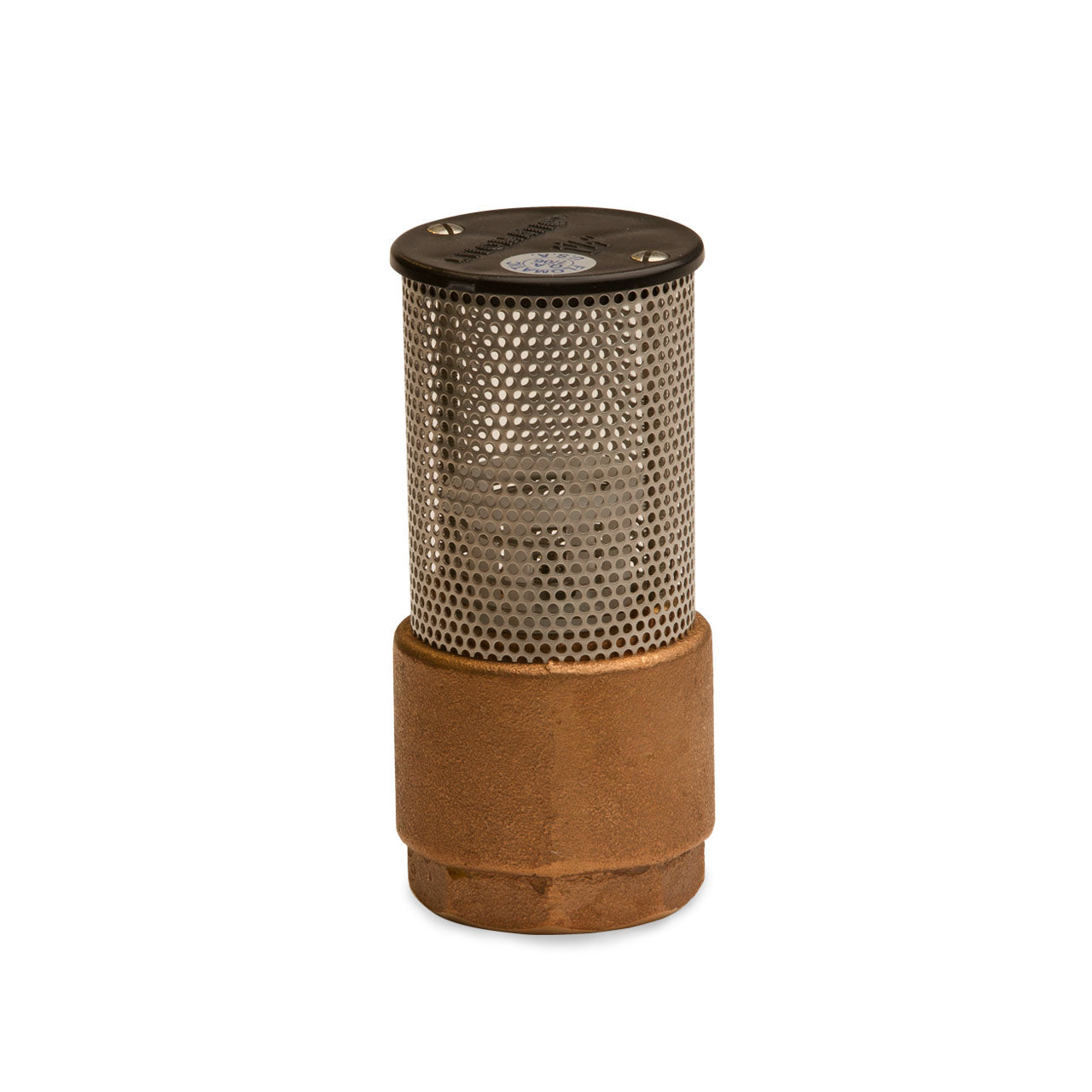

Flomatic 4101E Enviro Foot Check Valve 1 inches

Product Description

The Flomatic 4101E 1" 60SE Enviro foot valve is a stainless-steel spring-loaded foot valve designed to help maintain pump prime, prevent backflow, and protect suction lines from debris. This model features a Nitrile (Buna-N) seal, an acetal poppet, and a stainless-steel spring. It has a corrosion resistant strainer and is rated for a maximum working pressure of 250 psi.

• Stainless-steel body, spring, and hardware provide excellent resistance to corrosion and wear
• Spring-loaded poppet closes quickly to reduce reverse flow and loss of prime
• Integral strainer helps keep larger debris out of the suction line

Product Highlights

The Flomatic 4101E foot valve helps maintain pump prime, prevent backflow, and protect suction lines from debris.

Product Information

Standard Information

• Brand: FLOMATIC
• Manufacturer Part Number: 4101E
• Country of Origin: Unknown

Technical Specifications

• Max PSI: 250 (1/2" 150psi max)
• Max Temp: 180°F (80°C)
• Seal Material: NITRILE (Buna-N)
• Poppet Material: acetal (2-1/2", 3" and 4" has bronze poppets)
• Spring and Strainer Material: stainless steel
• Max Pressure: 250 psi
• Max Temperature: 180°F (80°C)
• Body Material: Bronze
• Seal: Nitrile (Buna-N)
• Poppet: Acetal
• Connection: 1" FNPT female
• Size: 1"
• Check Valve Type: Spring
• Depth: 2.000
• Width: 2.000
• Length: 5.200
• Diameter: 1 in
