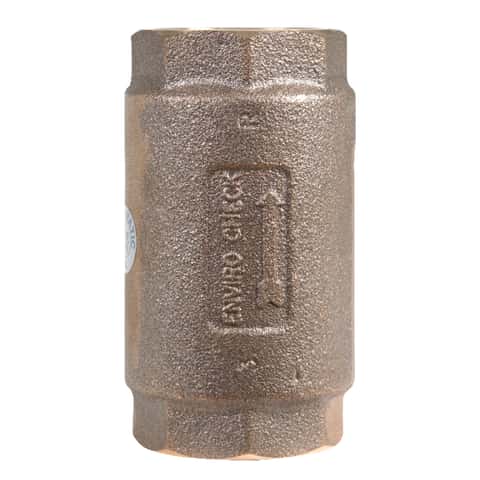

Flomatic 4033E 80E Enviro Check Valve 1-1/2 inches

Product Description

The FLOMATIC 4033E 80E Enviro Check Valve limits flow to one direction, preventing process flow from reversing. The valve features a non-spin acetal or unleaded bronze poppet with a Nitrile seal and a stainless steel spring. It is crafted from A-grade material for enhanced durability and is resistant to corrosion and rust.

• Stemless Design: Eliminates Sticking
• Radius Valve Seat: Self Cleaning Valve Seat
• Stable Poppet: Drop Shaped Poppet System, Reduced Friction Loss

Product Highlights

The Flomatic check valve is designed for durability and efficient flow control, ensuring reliable performance in various applications.

Product Information

Standard Information

• Brand: FLOMATIC
• Manufacturer Part Number: 4033E

Technical Specifications

• SIZE RANGE: ¼ - 4 inch (8mm - 100mm)
• MAX TEMP: 180°F (80°C)
• MAX PRESSURE: 400 PSI
• Max PSI: 400
• Temperature: 180*F
• Connection Type: Fipt x Fipt
• Pressure Rating: 400 PSI
• Connection Size: 1-1/2 in. x 1-1/2 in.
• Body Material: Brass
• Item: Valve
• Type: Check
• Series: 80E Series
• Operating Type: Manual
• Regulated: No
• Brand Name: Flomatic
