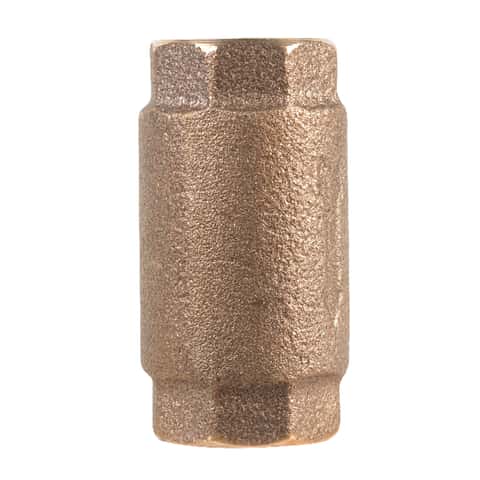

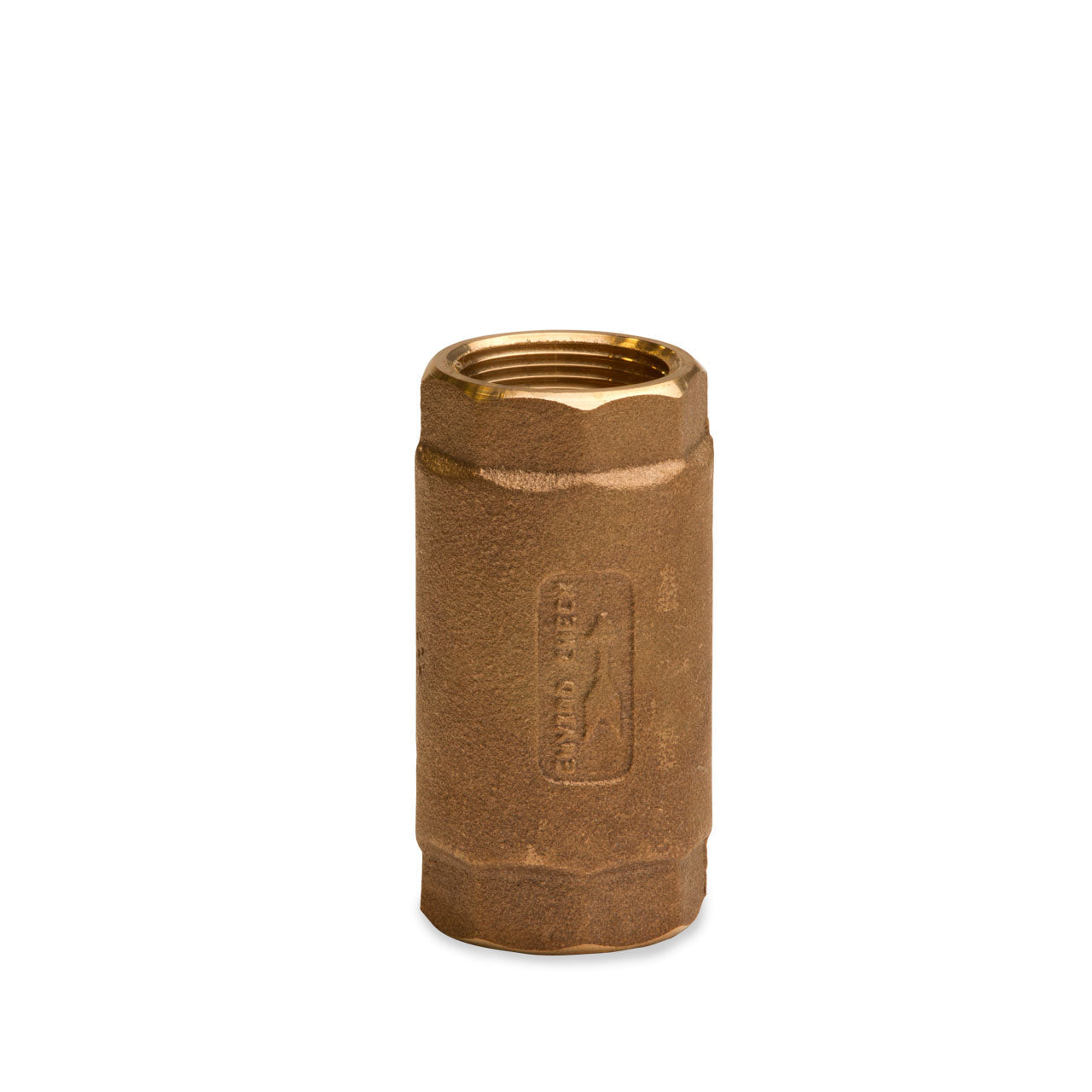

Flomatic 4030E 80E-Enviro Check Valve 3/4 inches

Product Description

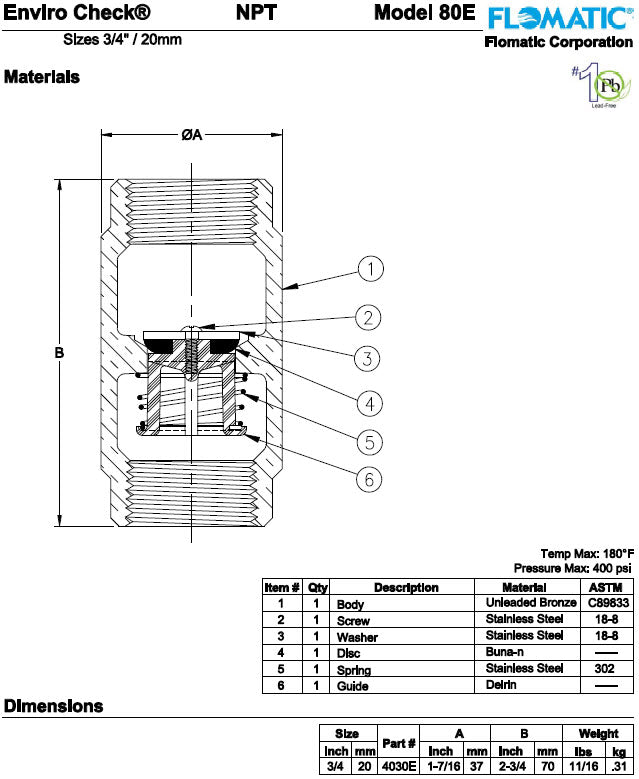

The Flomatic 4030E 80E-Enviro Check valve features a body cast from unleaded bronze with threaded female connections. It features a non-spin acetal or unleaded bronze poppet with a Nitrile seal and a stainless steel spring. It can handle pressures up to 400 psi and temperatures up to 180

• Limits flow to only one direction.
• Prevent process flow from reversing.
• NSF/ANSI 61 approved

Product Highlights

The Flomatic 4030E is an 80E-Enviro check valve with unleaded bronze body casting with threaded female connections. It has a non-spin acetal or unleaded bronze poppet with a Nitrile seal and a stainless steel spring.

Product Information

Standard Information

• Brand: FLOMATIC
• Manufacturer Part Number: 4030E
• Country of Origin: United States

Technical Specifications

• Max PSI: 400
• SIZE RANGE: \u00bc - 4 inch (8mm - 100mm)
• MAX TEMP: 180°F (80°C)
• MAX PRESSURE: 400 psi
• NSF/ANSI 61 and 372 Approved: NSF/ANSI 61 and 372 Approved
• Body: Unleaded Bronze
• Inlet / Outlet: 3/4" FNPT
• Weight: 0.6 lbs
• Case Qty: 100
• Brand: Flomatic
• Model: 80E
• MPN: 4030E
• Country of Origin: United States
• UPC: NA
