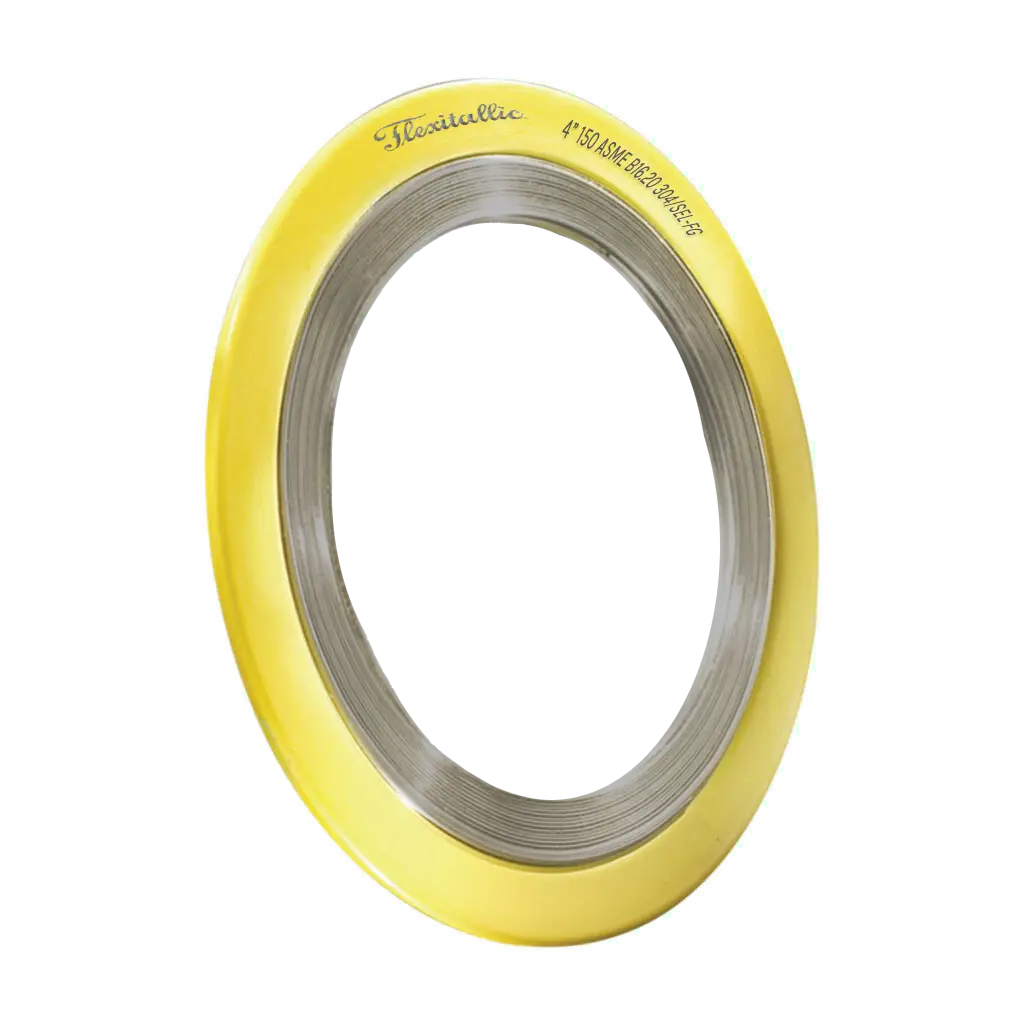

FLEXITALLIC CG Flexible Graphite Filler Gasket

Product Description

The FLEXITALLIC CG is a spiral wound gasket featuring a flexible graphite filler and an external ring that centers it on the flange face. This design helps to increase radial strength, preventing gasket blowout and serving as a compression stop. It is suitable for both flat face and raised face flanges.

• Spiral wound gasket design
• External ring ensures proper centering on flange face
• Constructed with flexible graphite filler material

Product Highlights

The FLEXITALLIC CG is designed for high performance in demanding applications.

Product Information

Standard Information

• Approval: BAM for Oxygen, TA Luft
• Flange Face: Flat, Raised

Technical Specifications

• Maximum Temperature: 450 degrees Celsius / 842 degrees Fahrenheit
• Media: Hazardous
• Minimum Temperature: -240 degrees Celsius / -400 degrees Fahrenheit
• Pressure: 431 Bars / 6251.14 PSI
• Pressure Class: 150, 300, 600, 1500, 2500, 400, 900
• Pressure Rating: PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250
