Flexco 65X 65 Alligator Transmission Lacing

Product Description

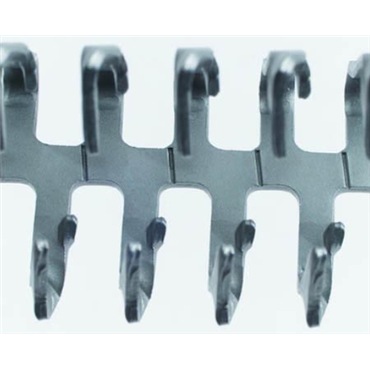

The Flexco 65X is a reliable alligator transmission lacing designed for use with various belt types. This product is manufactured from steel and can accommodate a belt thickness range of seven-sixteenths inch to one-half inch. The 65X can support a maximum belt tension of two hundred pounds per inch, ensuring strong performance under demanding conditions.

• Belt thickness range: 7/16 inch to 1/2 inch
• Material: Steel
• Maximum belt tension: 200 lb/in

Product Highlights

This transmission lacing is ideal for use in various industrial applications, providing durability and strength to keep operations running smoothly.

Product Information

Standard Information

• Brand: Flexco
• Part Number: 101887470
• Minimum Pulley Diameter: 14 inches
• Strip Length: 12 inches

Technical Specifications

• Alternate Part No.: 10014
• Fastener Series: 65
• Belt Thickness Range: 7/16 inch to 1/2 inch
• Hinge Pin Diameter: 0.203125 inches
• Hinge Pin Included: Yes
• Hinge Pin Material: Steel Rocker
• Weight: 5.846 pounds
• EAN or UPC: 697598100146
