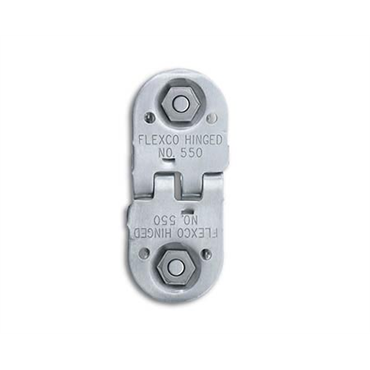

Flexco 550SJ24NCS Bolt Hinged Fastener

Product Description

The Flexco 550SJ24NCS is a bolt hinged fastener designed for extendable belts with smaller pulley diameters. This fastener provides reliability and accommodates various sizes. It is made of stainless steel, offering strength and protection against mild corrosion due to its zinc plating.

• Compatible with belt widths of twenty-four inches
• Suitable for belt thicknesses ranging from one-quarter inches to five-eighths inches
• Maximum belt tension of three hundred pounds per inch

Product Highlights

This fastener is ideal for material handling applications, ensuring secure and efficient operation in conveyor systems.

Product Information

Standard Information

• Brand: Flexco
• Part Number: 550SJ24NCS

Technical Specifications

• Minimum Pulley Diameter: nine inches
• Belt Width: twenty-four inches
• Hardware Type: fastener
• Hinge Pin Diameter: zero point twenty-five inches
• Fastener Type: bolt hinged
• Fastener Series: 550
• Hinge Pin Material: nylon covered stainless steel cable
• Belt Thickness Range: one-quarter inches to five-eighths inches
• Material: stainless steel
• Hinge Pin Included: yes
• Weight: eleven point two one one pounds
• EAN or UPC: 697598401656
