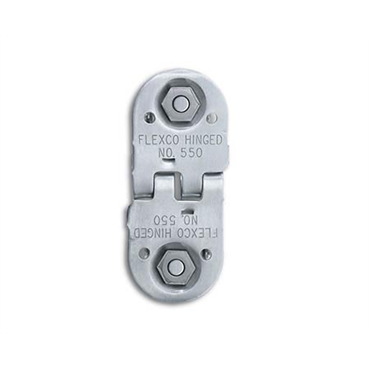

Flexco 550MAJ24SSC Bolt Hinged Fastener

Product Description

The Flexco Bolt Hinged Fastener with MPN 550MAJ24SSC is designed for extendable belts, especially in applications using smaller pulley diameters. This fastener provides reliability across various sizes and materials. Plated steel is generally recommended and is readily available in all sizes to ensure versatility and dependability. Zinc plating offers protection against mild corrosion.

• 24 in belt width
• 1/4 in to 5/8 in belt thickness range
• 300 lb/in maximum belt tension

Product Highlights

This fastener is suitable for conveyor systems requiring secure and dependable connections. It is widely used in material handling and conveyor components.

Product Information

Standard Information

• Brand: Flexco
• Part Number: 550MAJ24SSC

Technical Specifications

• Belt Thickness Range: 1/4 in to 5/8 in
• Fastener Type: Bolt Hinged
• Minimum Pulley Diameter: 9 in
• Fastener Series: 550
• Hinge Pin Material: Bare Stainless Steel Cable
• Hardware Type: Fastener
• Material: MegAlloy
• Hinge Pin Included: Yes
• Belt Width: 24 in
• Hinge Pin Diameter: 0.21875
• Weight: 0.98 lbs
• EAN or UPC: 697598395771
