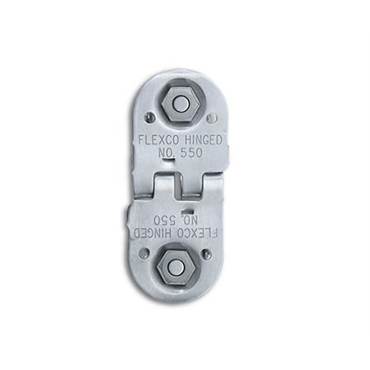

Flexco 550MAJ18SSC Bolt Hinged Fastener

Product Description

The Flexco Bolt Hinged Fastener with MPN 550MAJ18SSC is designed for use with extendable belts that require smaller pulley diameters. This fastener ensures reliable performance and offers various sizes to meet specific application needs. The recommended material for most applications is plated steel, available in all sizes, with zinc plating to provide enhanced protection against mild corrosion.

• Compatible with belt widths of eighteen inches.
• Handles belt thickness from one-quarter inch to five-eighths inch.
• Maximum belt tension rating of three hundred pounds per inch.

Product Highlights

The Flexco Bolt Hinged Fastener is ideal for applications necessitating durability and strength in conveyor systems.

Product Information

Standard Information

• Type: Bolt Hinged Fastener
• Material: MegAlloy

Technical Specifications

• Fastener Series: 550
• Belt Width: 18 inches
• Belt Thickness Range: 1/4 inch to 5/8 inch
• Hinge Pin Diameter: 0.21875 inches
• Minimum Pulley Diameter: 9 inches
• Hinge Pin Included: Yes
• Weight: 0.84 pounds
• EAN or UPC: 697598395740
