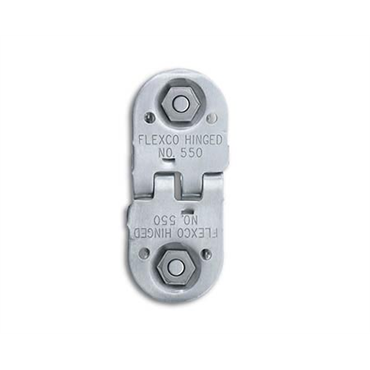

Flexco 550J48NCS Bolt Hinged Fastener

Product Description

The Flexco Bolt Hinged Fastener with MPN 550J48NCS is designed for heavy-duty applications in conveyor systems. This fastener supports belts with a width of forty-eight inches and can accommodate belt thicknesses from one-quarter inch to five-eighths inch. Constructed from durable steel, it ensures reliability under high tension, with a maximum capacity of three hundred pounds per inch.

• Compatible with various belt thicknesses
• Features nylon-covered stainless steel hinge pin
• Minimum pulley diameter requirement of nine inches

Product Highlights

This fastener provides secure fastening for conveyor belts, streamlining maintenance and improving operational efficiency.

Product Information

Standard Information

• Brand: Flexco
• MPN: 550J48NCS

Technical Specifications

• Fastener Series: 550
• Hardware Type: Fastener
• Belt Width: 48 inches
• Material: Steel
• Belt Thickness Range: 1/4 inch to 5/8 inch
• Hinge Pin Included: Yes
• Fastener Type: Bolt Hinged
• Hinge Pin Material: Nylon Covered Stainless Steel Cable
• Hinge Pin Diameter: 0.25 inches
• Minimum Pulley Diameter: 9 inches
• Alternate Part No. or Item Code: 40063
• Weight: 0.1 pounds
• EAN or UPC: 697598400635
