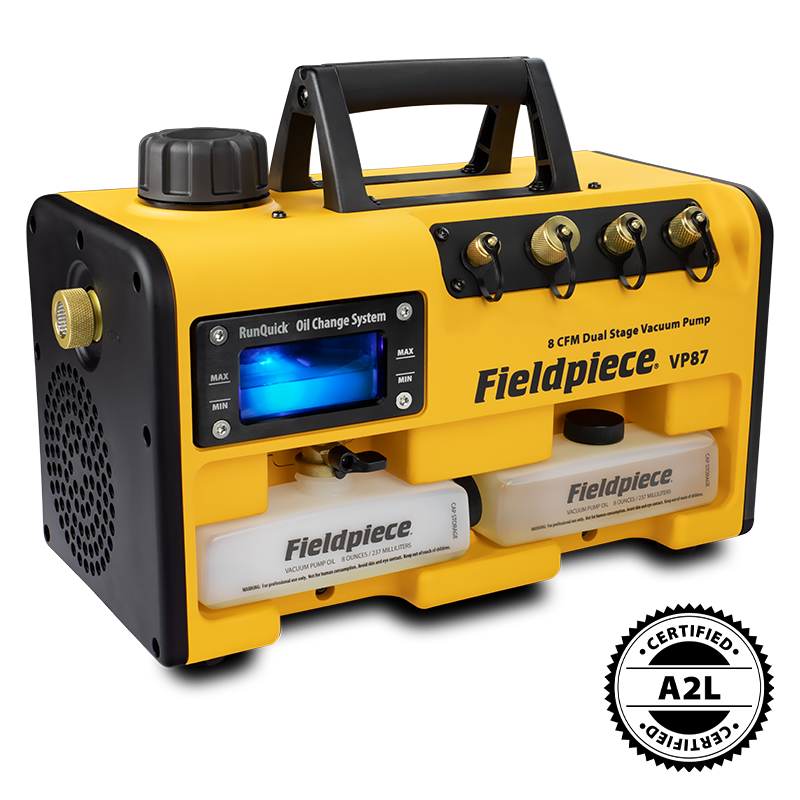

Fieldpiece FP-VP87 RunQuick 8 CFM Dual Stage Vacuum Pump

Product Description

The Fieldpiece FP-VP87 RunQuick 8 CFM Dual Stage Vacuum Pump is designed for efficient system evacuations. This pump offers a flow rate of eight CFM and can achieve an ultimate vacuum of fifteen microns. It is powered by a three-quarter HP DC motor, ensuring reliable performance. The unique RunQuick Oil Change System allows for convenient oil changes. The pump features a backlit oil reservoir to easily monitor oil condition and has integrated storage for an extra oil bottle. Its port connections include one quarter inch, two three-eighths inches, and one half inch, making it versatile for different hose setups. The pump is certified for A2L refrigerants and includes error messages for power or system issues.

• RunQuick Oil Change System for easy oil maintenance.
• Multiple port sizes for versatile hose connections.
• Compact design with a footprint of 1,346 cubic inches.

Product Highlights

This vacuum pump supports quick oil changes, features multiple connection ports, and has a compact design suitable for various applications in HVAC services.

Product Information

Standard Information

• Brand: Fieldpiece

Technical Specifications

• Flow Rate: 8 CFM
• Oil Capacity: 8 oz
• Oil Compatibility: Fieldpiece Vacuum Pump Oil
• Oil Backlight: Blue LED
• Oil Drain: Ball Valve
• Port Sizes: (1) 1/4, (2) 3/8, (1) 1/2
• Compressor: Rotary vane, two stage
• Motor: 3/4 HP Brushless DC
• RPM: 2500
• Power Source: 120 VAC @ 50/60 Hz
• Nominal Current Draw: 6 AAC
• Ultimate Vacuum at Input Ports: 15 microns
• Dimensions: 7.9 inch x 11.7 inch x 16.0 inch
• Weight: 27 lb
• Operating Environment: 30°F to 122°F
