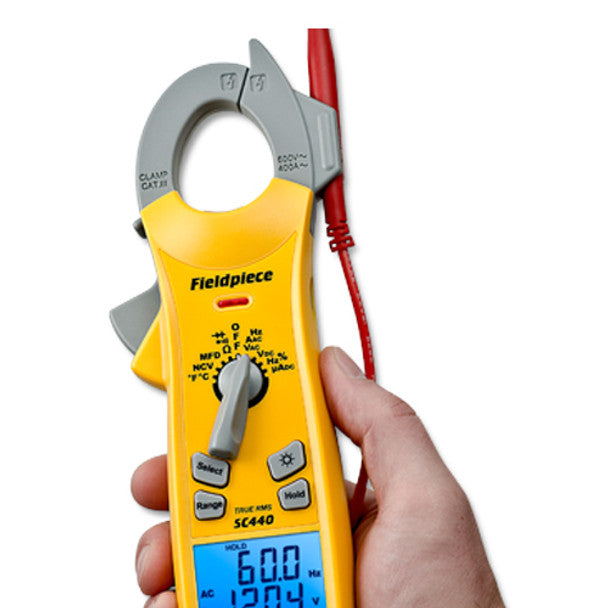

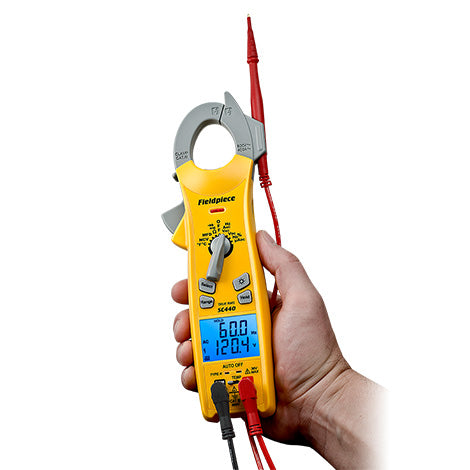

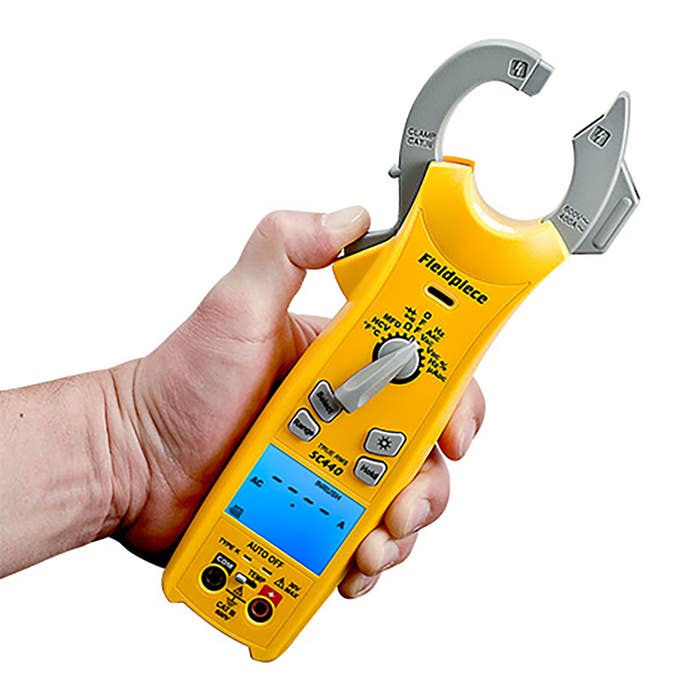

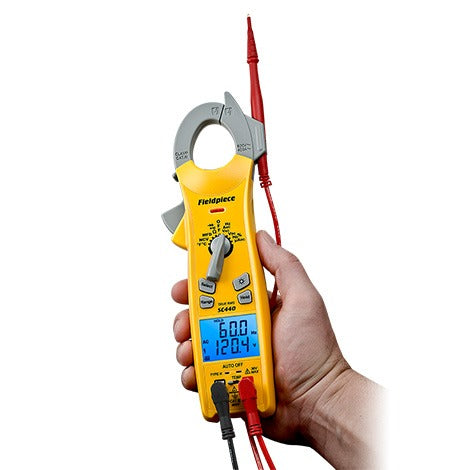

Fieldpiece FP-SC440 True-RMS Clamp Meter

Product Description

The FIELDPIECE FP-SC440 is a clamp meter designed to measure AC current up to four hundred Amps with True RMS accuracy. This functionality makes it suitable for precise AC measurements in various applications. The meter is equipped with an inrush current measurement feature that helps analyze motor startups.

• Measures AC/DC voltage and DC microamps.
• Dual display allows for simultaneous readings.
• Backlight for enhanced visibility in low-light conditions.

Product Highlights

This clamp meter provides comprehensive measurement options, including temperature in both Fahrenheit and Celsius, capacitance, resistance, and frequency measurements using leads or clamp. Non-contact voltage detection and continuity testing capabilities are integral to this device, making it an essential tool for HVAC technicians, electricians, and plumbing professionals.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: FP-SC440

Technical Specifications

• Display: 5000 count dual display
• Backlight: 60-second duration with auto-off
• Measurement Rate: 3.3 times per second
• Operating Environment: 32°F to 122°F
• Storage Temperature: -4°F to 140°F
• Accuracy: Stated accuracy @ 73°F ±9°F
• Battery Life: 100 hours typical alkaline
• Dimensions: 233mm (H) x 79mm (W) x 45mm (D)
• Weight: Approx. 315g including battery
• Voltage AC Range: 500 mV to 600V
• Voltage DC Range: 500 mV to 600V
• Inrush Current Measurement Period: 100 ms
• Temperature Range: -30°F to 932°F
• Resistance Range: Up to 50 Mega Ohms
• Frequency Range: 10 Hz to 1 MHz
