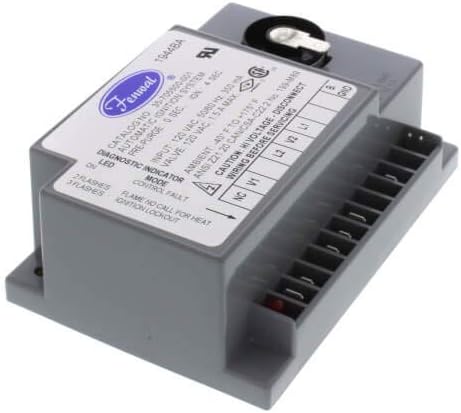

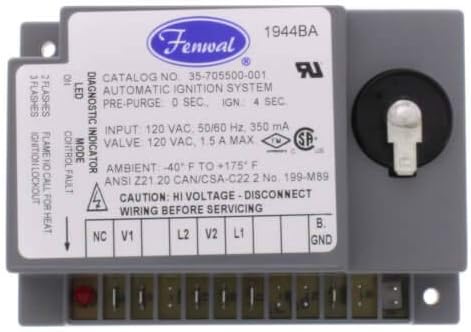

Fenwal 35-705500-001 Direct Spark Ignition Control 120V

Product Description

The Fenwal 35-705500-001 Direct Spark Ignition Control offers advanced technology for reliable ignition of natural gas, propane, and manufactured gases. It incorporates a microprocessor for precise control and features a zero-second prepurge and a four-second trial-for-ignition.

• Microprocessor-controlled direct spark ignition
• Supports multiple gas types: Natural, LP, Manufactured
• Designed for industrial and commercial applications

Product Highlights

Fenwal's model is robust and versatile, designed to meet the rigorous demands of gas-fired equipment applications. It includes diagnostics capabilities and multiple mounting options to accommodate various installation needs.

Product Information

Standard Information

• Model: 35-705500-001
• Voltage: 120 Volts

Technical Specifications

• Ignition Type: Direct Spark
• Flame Sense: Minimum 1 mA
• Temperature Range: -40F to 175F
• Ignition Trials: Options for 1 and 3 tries
• Enclosure Options: Case/Cover, Open Board, Potted
• Connection Type: 1/4 inch quick connects and multi-pin connector
• Safety Features: Diagnostic LED with error codes, Polarity insensitive design
