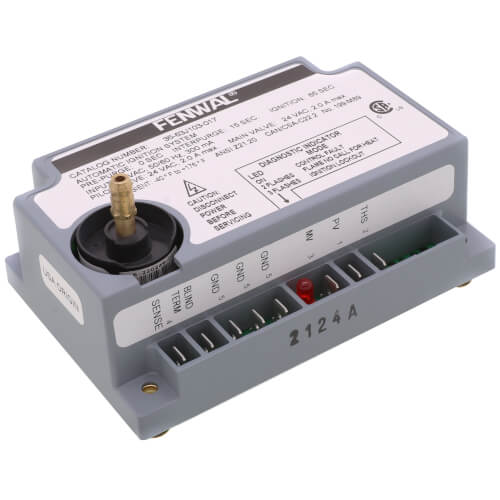

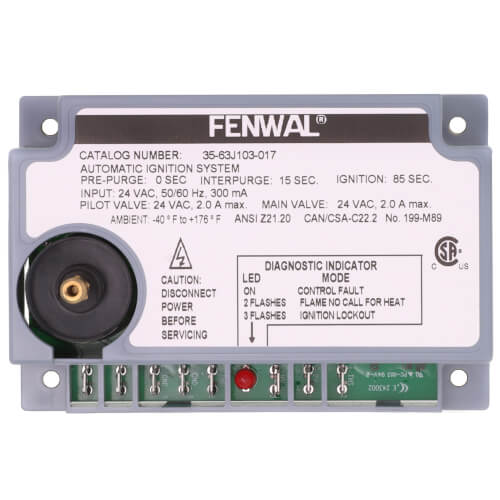

Fenwal 35-63J103-017 Johnson Replacement Ignition Control Module

Product Description

The Fenwal 35-63J103-017 serves as a direct replacement for Johnson Controls G77x series intermittent pilot ignition units, maintaining compatibility in mounting and connection setups. Engineered for robust and reliable ignition in various industrial applications, this product ensures efficient performance under varying conditions.

• Direct swap for JCI G77x series with identical installation convenience.
• Features like Safe Start, full-time flame sensing, and diagnostic LEDs enhance operational reliability.
• Flexible settings for prepurge and interpurge timings, multiple trials for ignition, and optional automatic reset post lockout.

Product Highlights

This ignition control module offers versatility with remote or local flame sensing capabilities and several grounding terminals for ease of installation. Its high precision flame sensing technology ensures reliable operation every time.

Product Information

Standard Information

• Brand: Fenwal
• MPN: 35-63J103-017

Technical Specifications

• Voltage: 24V
• Ignition Type: Intermittent Pilot
• Flame Sense: 0.3 Microampere minimal detectable
• Temperature Range: -40°F to 176°F
• Weight: 0.85 lbs
• Dimensions: 6.75 inches x 4.4 inches x 3.35 inches
