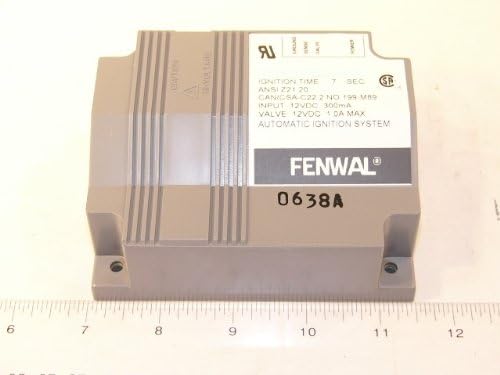

Fenwal 35-530501-003 Controls 35530501003 IGN MODULE RELACES 830-003

Product Description

The Fenwal Controls 35530501003 IGNITION MODULE is a microprocessor-based direct spark ignition control designed for heating applications. This model operates on twelve volts direct current and is built for reliable performance in various systems including RV gas furnaces and other appliances. It features an automatic reset and multiple ignition attempts to ensure effective operation. Its compatibility with older models highlights its utility in upgrading or replacing existing systems.

• Microprocessor-based ignition control
• Operates on twelve volts direct current
• Multiple ignition attempts and automatic reset feature

Product Highlights

This control unit integrates features such as combustion blower control and LED diagnostic output. The design allows it to monitor the gas burner operation continuously and apply necessary adjustments for optimal performance.

Product Information

Standard Information

• Brand: Fenwal
• MPN: 35-530501-003

Technical Specifications

• Electrical Rating: 12V DC, 300mA
• Ignition Attempts Before Lockout: One
• Safe Start: Yes
• Control Voltage: 9.0-15V DC
• Connection Type: Edge Connector
• Gas Valve Rating: 1.0 Amps @ 12V DC
• Dimensions: 6.5 inches x 6.5 inches x 2.7 inches
• Weight: 4 pounds
