Product Description

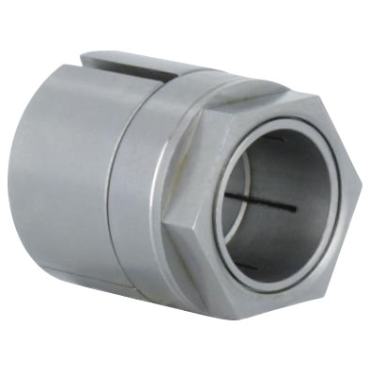

The Fenner Drives 6410050 Trantorque Mini features a self-centering style and internal locking type. It provides a strong, zero backlash connection that maintains optimal performance even under high torque conditions.
- Zero backlash frictional connection
- High torque capacity: 842 in lb
- Adjustable and easy installation with a single hex nut
Product Highlights
This product is ideal for applications requiring quick assembly and repositioning, particularly on small shafts. It minimizes downtime with exceptional concentricity and the ability to handle bending loads.
Product Information
Standard Information
-
Brand: Fenner Drives
-
MPN: 6410050
Technical Specifications
-
Type: Locking Device
-
Style: Self-Centering
-
Torque: 842 in lb
-
Locking Type: Internal Locking
-
Material: Steel
-
Standard: RoHS compliant
-
Hub Contact Pressure: 18535 psi
-
Overall Length: 1 inch
-
Inside Diameter (I.D.): 1/2 inch
-
Outside Diameter (O.D.): 7/8 inch
-
Weight: 0.11 lb
-
Thrust: 3057 lbf
-
Install Torque: 33 lb/ft
