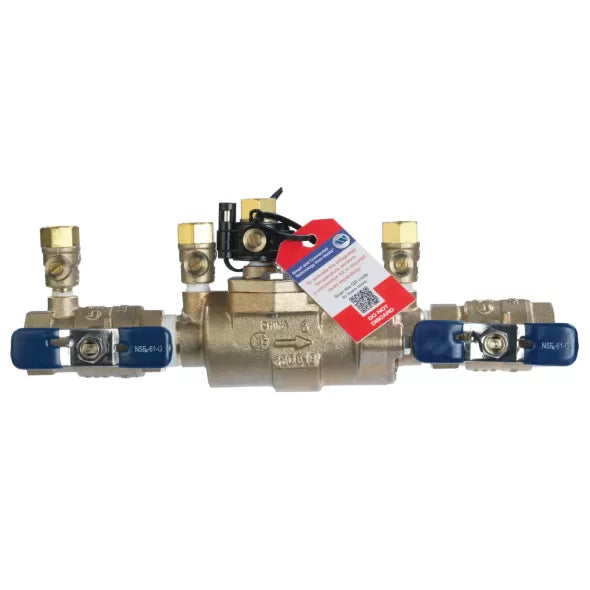

FEBCO T1114 850 Series Double Check Valve Assembly

Product Description

The FEBCO 850 Series Double Check Valve Assembly T1114 is engineered to prevent backflow in non-health hazard applications. This assembly features a robust bronze body that provides durability and reliability. The female threaded connections ensure a secure fit. The unit includes quarter-turn ball valve shutoffs, making it easy to operate. It also comes with top-mounted test cocks and two in-line independent positive seating check modules. A key feature is the freeze sensor designed for SentryPlus Alert technology, which notifies when temperatures approach freezing.

• Durable bronze body for longevity
• Includes freeze sensor for temperature monitoring
• Designed for easy installation with threaded connections

Product Highlights

The FEBCO T1114 assembly is ideal for backflow prevention in various applications. It provides effective protection against backpressure and backsiphonage.

Product Information

Standard Information

• Brand: FEBCO
• Product Type: Backflow Preventer

Technical Specifications

• Part Number: T1114
• Series: 850
• Connection Size: 1-1/4 inches
• Inlet Connection Type: Female Threaded
• Outlet Connection Type: Female Threaded
• Maximum Working Pressure: 175 PSI
• Temperature Range: 32°F to 140°F
• Weight: 16 lbs
