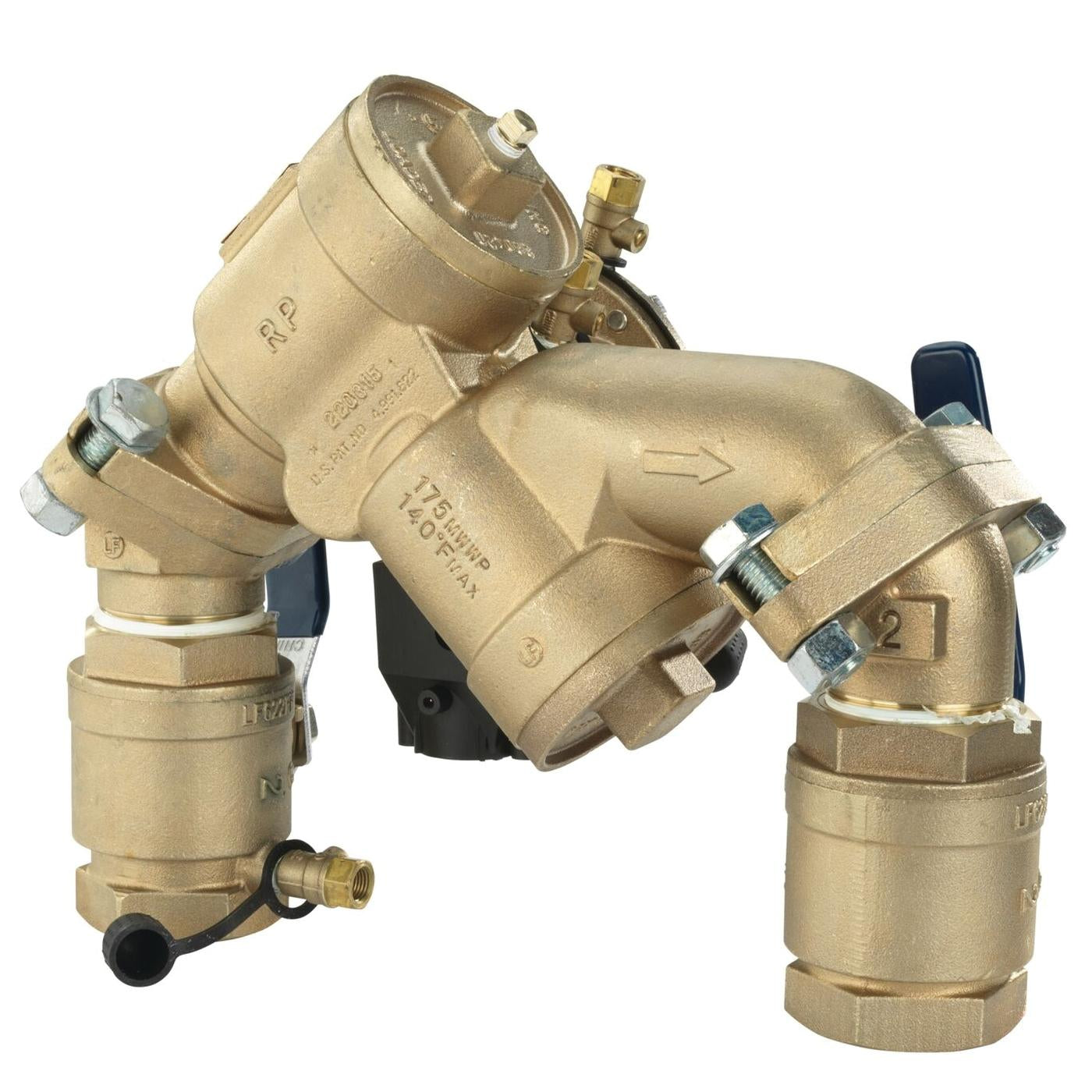

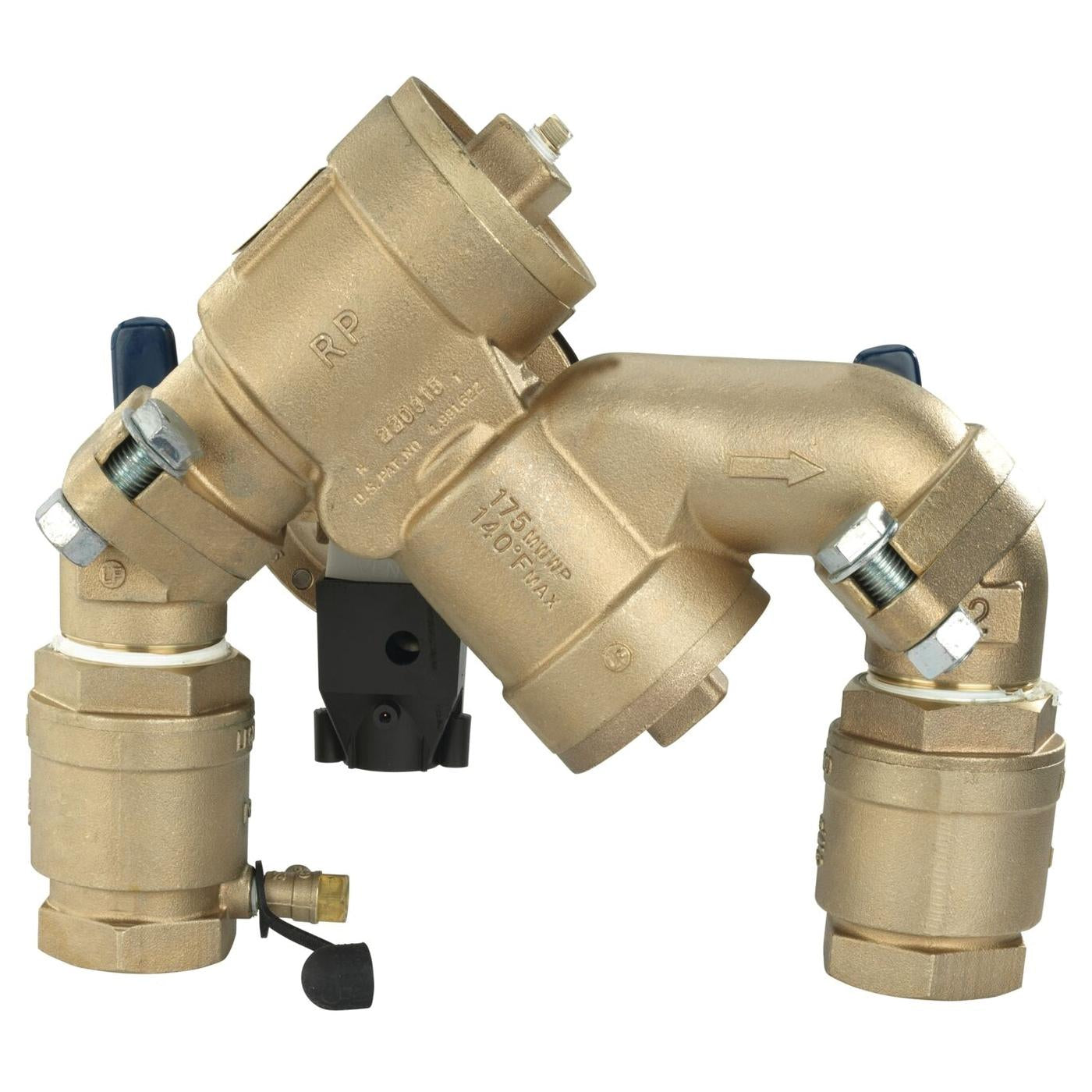

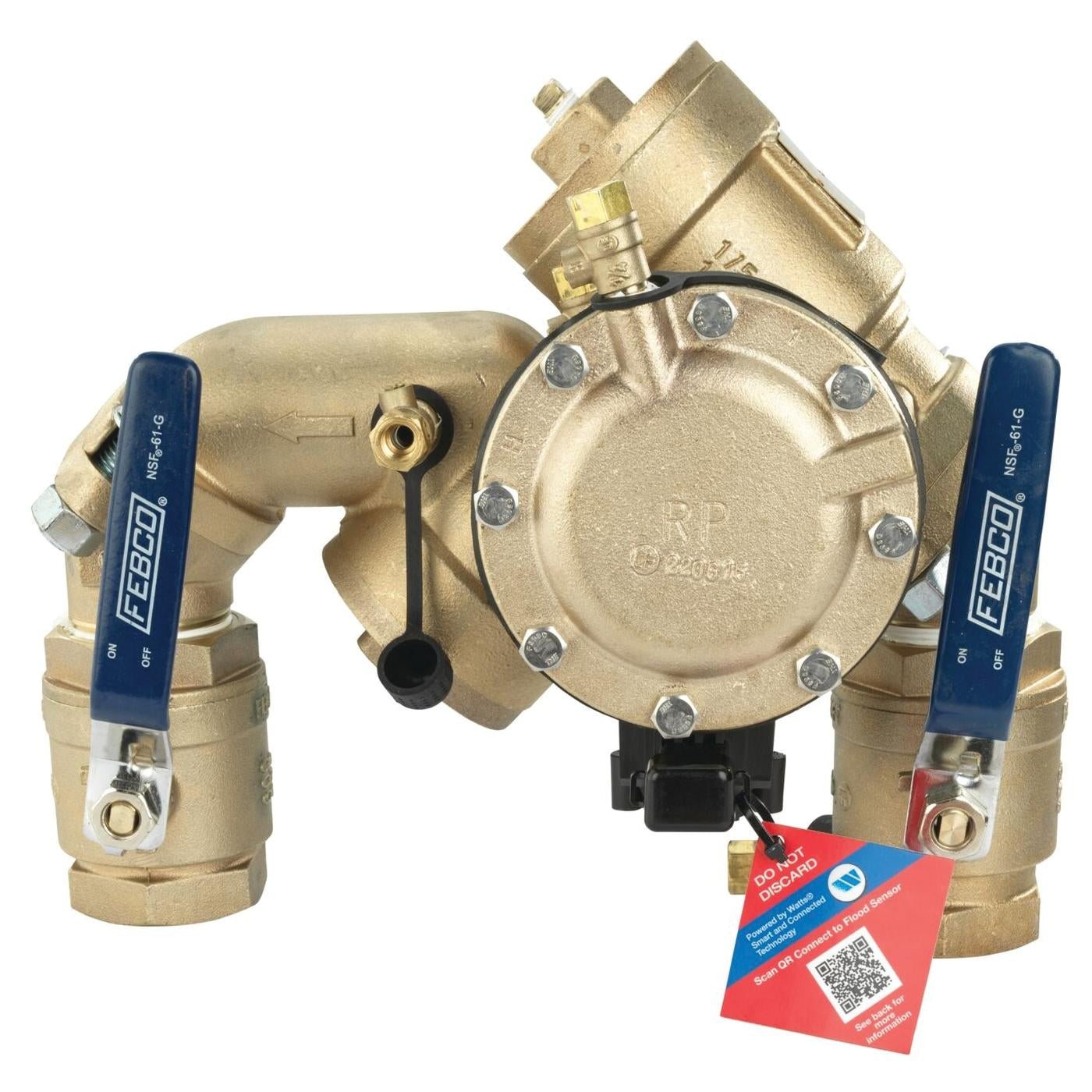

Febco F683014 LF825YA 2 inches Reduced Pressure Zone Backflow Preventer Assembly

Product Description

The FEBCO F683014 is a 2 inch lead free N shaped reduced pressure zone backflow preventer assembly. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage or backpressure. The compact design simplifies new and retrofit installations, advantageous in limited spaces. Includes quarter turn ball valves and flood sensor.

• Features a flood sensor with SentryPlus Alert technology to detect continuous discharge from the relief valve
• Add-on sensor connection kit to extend flood monitoring on compatible assemblies
• Sensor Control Monitor integrates smart devices with BAS via RS?485 Modbus or the Nexa platform through Wi-Fi

Product Highlights

This backflow preventer is designed for use in industrial plants, hospitals, chemical plants, irrigation systems, and boiler feed lines.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F683014

Technical Specifications

• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Cast Copper Silicon Alloy
• Body Material: Lead Free Bronze
• Body Pattern: Angle
• Brand: FEBCO
• Bypass: No
• Cap And Tether: No
• Disc Material: Nitrile
• EAN: 643925581799
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 51 MM
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.10
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Part Number: F683014
• Polymer Coating: No
• Protection Type: Backpressure
• Seat Material: Nitrile
• Series: LF825YA
• Strainer: Yes
• Technologies: Flood Detection
• Nominal Size: 2 in
• Operator Type: Quarter-Turn Ball Valve
• Pressure Rating: 175 psi
• Temperature Rating: 140 deg F
