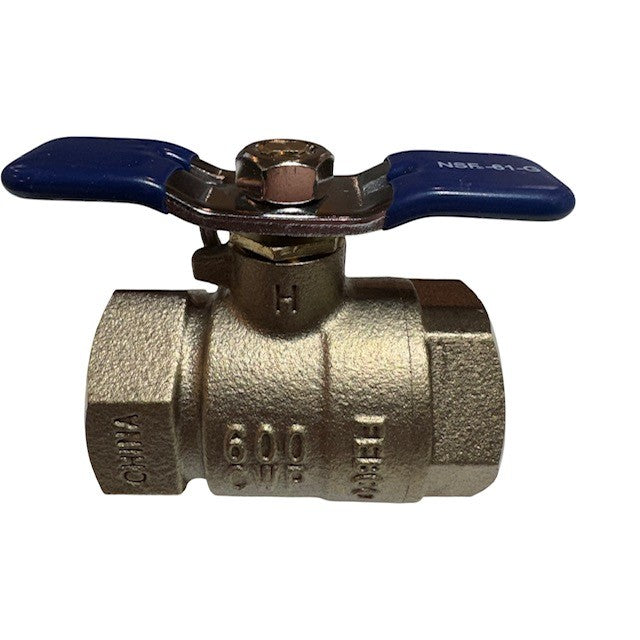

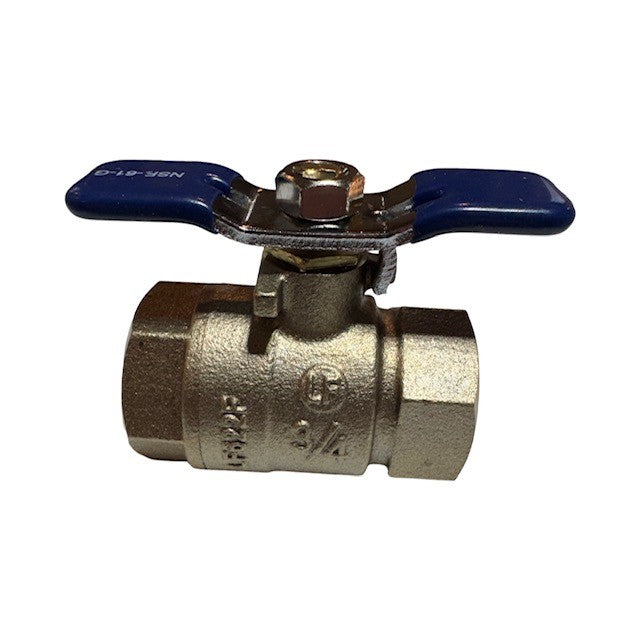

Febco 781048LL Non Tapped LF Ball Valve 3/4 Inch

Product Description

The FEBCO 781048LL is a 3/4 inch non-tapped lead-free full port ball valve. Designed for water service applications, it is suitable for throttling and balancing nonabrasive fluids. Its full port design ensures low pressure drop, featuring a PTFE stem packing seal, thrust washer, and seat. This valve has a maximum working pressure of 600 psi WOG.

• Non-tapped design for specific applications.
• Lead-free construction ensures safe water service.
• Full port design minimizes pressure drop.

Product Highlights

Lead-free full port ball valve with non-tapped design for efficient fluid control.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: 781048LL

Technical Specifications

• Manufacturer Part Number: 781048LL
• Nominal Size: 3/4 inch
• Valve Type: Non Tapped Lead Free Ball Valve
• Actuation: No
• Ball Material: Brass
• Body Finish: Bronze
• Body Material: Bronze
• Control Type: Tee Handle
• CV Rating: 30 GPM
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free Compliance: YES
• Maximum Temperature-Fahrenheit: 350
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Port Type: Full
• Seat Material: PTFE
• Series: LF622F
• Stem Packing Material: PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded
• Thrust Washer Material: PTFE
• Maximum Working Pressure (WOG): 600 PSI
• Connection: Threaded
