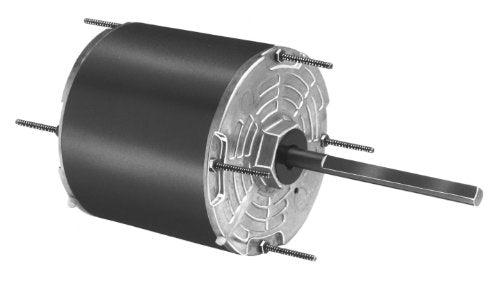

Fasco D713 Condenser 1/2 HP 5.6 Inch Frame Diameter

Product Description

The Fasco D713 is a condenser motor designed for various applications. This model features a five point six-inch frame diameter and operates at one half horsepower. It runs at eight hundred twenty-five revolutions per minute, making it suitable for a variety of cooling systems. The motor requires a voltage range of two hundred eight to two hundred thirty volts and has an amperage of three. It includes a sleeve bearing design for durability. The all-angle mount bearings provide flexibility in installation. Consider using a rain shield if the installation is in a moisture-prone area.

• Five point six-inch frame diameter
• One half horsepower
• Eight hundred twenty-five RPM

Product Highlights

Efficient motor performance with versatile mounting options.

Product Information

Standard Information

• Manufacturer: Fasco
• Model Number: D713

Technical Specifications

• Motor Type: Single Phase
• Speed: PSC, One Speed
• Rotation: Reverse
• Shaft Dimension: One half x six inches
• Motor Length: Five and one third inches
• Package Dimensions: Sixteen inches L x six inches W x six inches H
• Weight: One point five five pounds
• Electrical Rating: Two hundred eight to two hundred thirty volts
