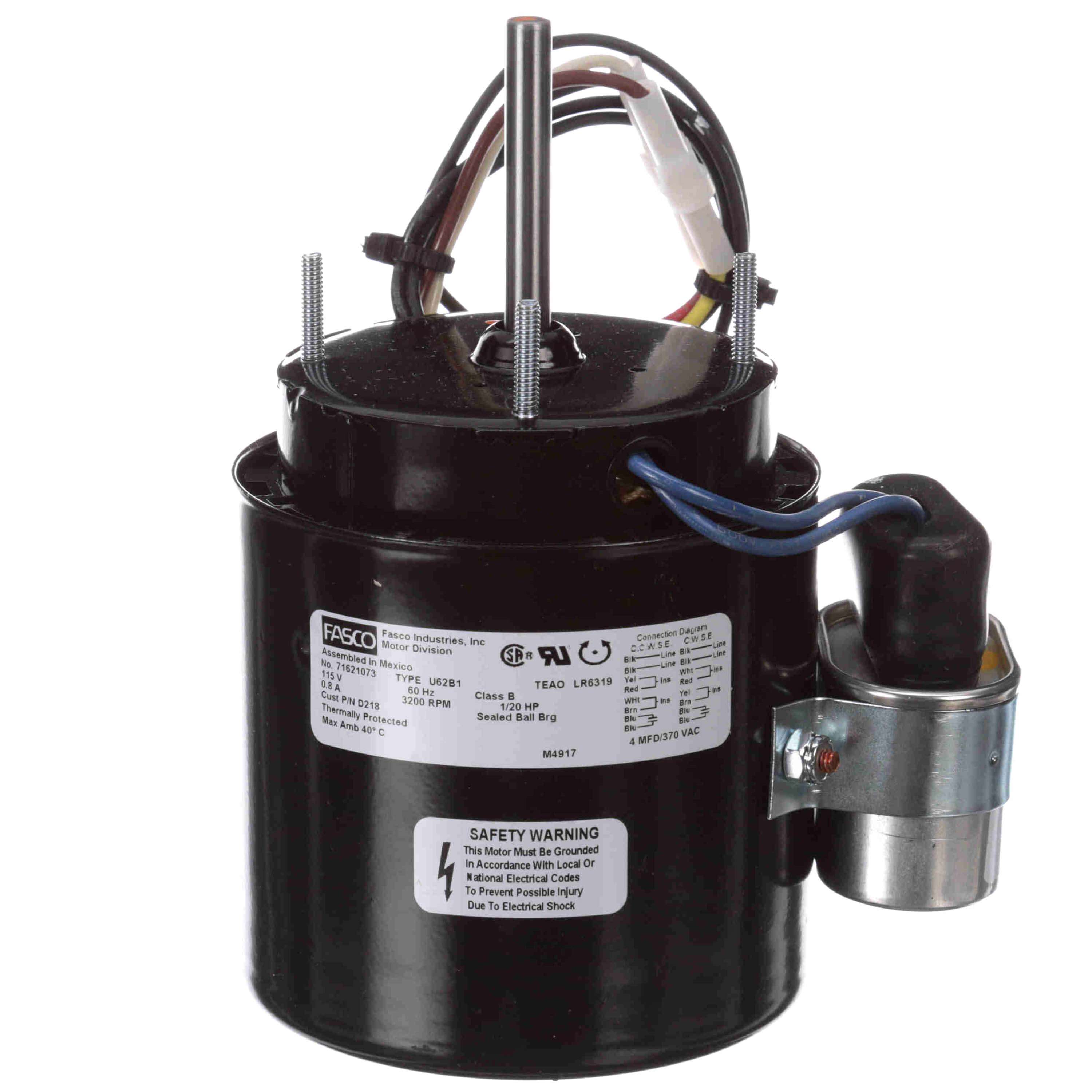

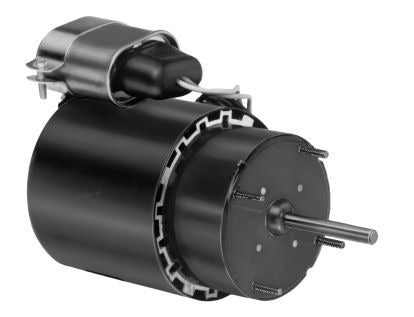

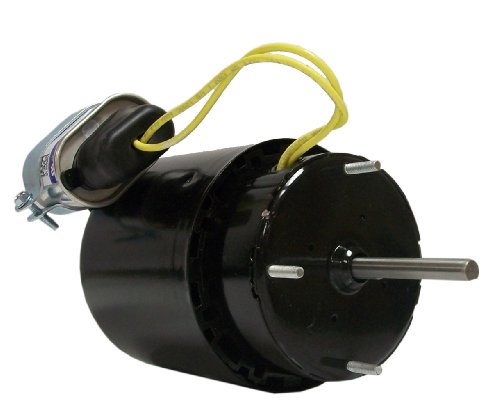

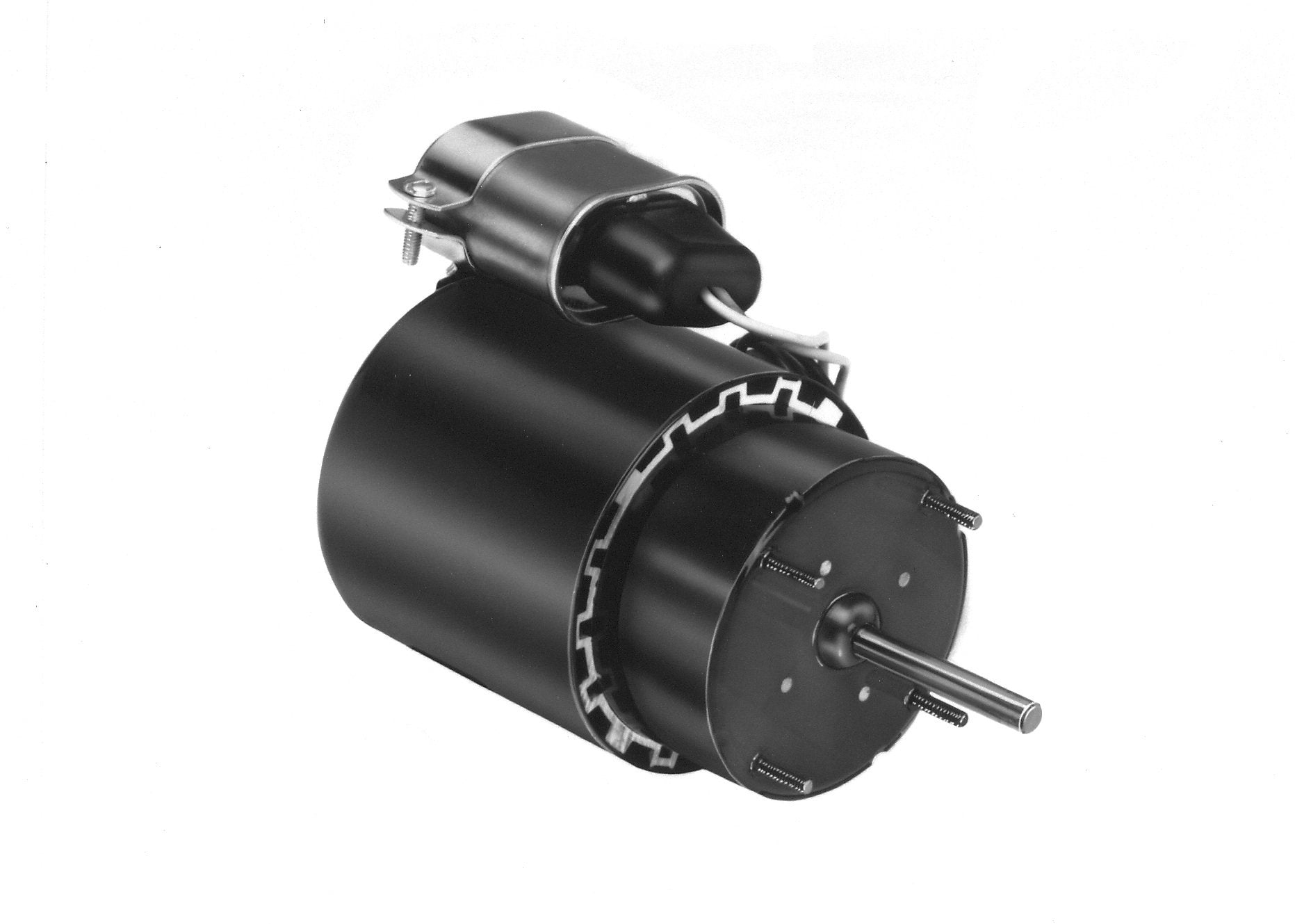

FASCO D218 HVAC Motor 1/20 HP 3.3

Product Description

The FASCO D218 HVAC motor is a 1/20 HP motor that operates at 115 volts. It achieves a speed of 3200 RPM, making it suitable for direct drive blower applications. The design is a single-phase permanent split capacitor type and includes automatic thermal protection for safe operation.

• 1/20 HP motor with 3200 RPM speed
• Operates at 115V, 60 Hz, single phase
• Totally enclosed air-over design with automatic thermal protection

Product Highlights

This motor is ideal for HVAC applications and guarantees reliable performance.

Product Information

Standard Information

• Weight: 5 pounds
• Frame Size: 3.3

Technical Specifications

• Speed: 3200 RPM
• Voltage: 115 volts
• HP: 1/20
• Hz: 60 Hz
• Duty: Continuous
• Item: Direct Drive Blower Motor
• Phase: Single
• Capacitor Included: 4 MFD 370VAC
• Body Diameter: 3 5/16 inches
• RPM Range: 3,001-3,600
• Standards: CSA Certified, UL Recognized
• Stud Size: #8-32
• Motor Application: HVAC/R
• Max Ambient Temp: 40 degrees C
• Motor Design: Permanent Split Capacitor
• Shaft Diameter: 5/16 inches
• Shaft Length: 2 1/4 inches
• Number of Speeds: 1
