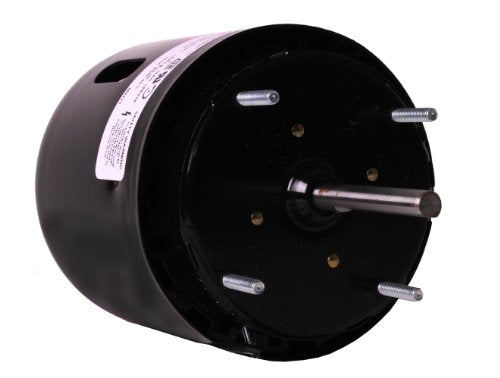

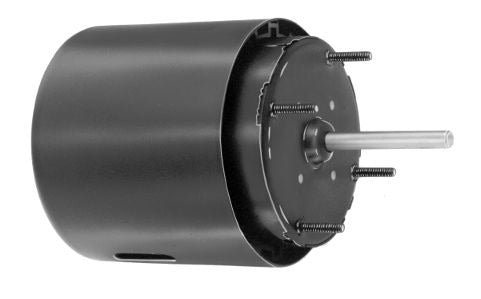

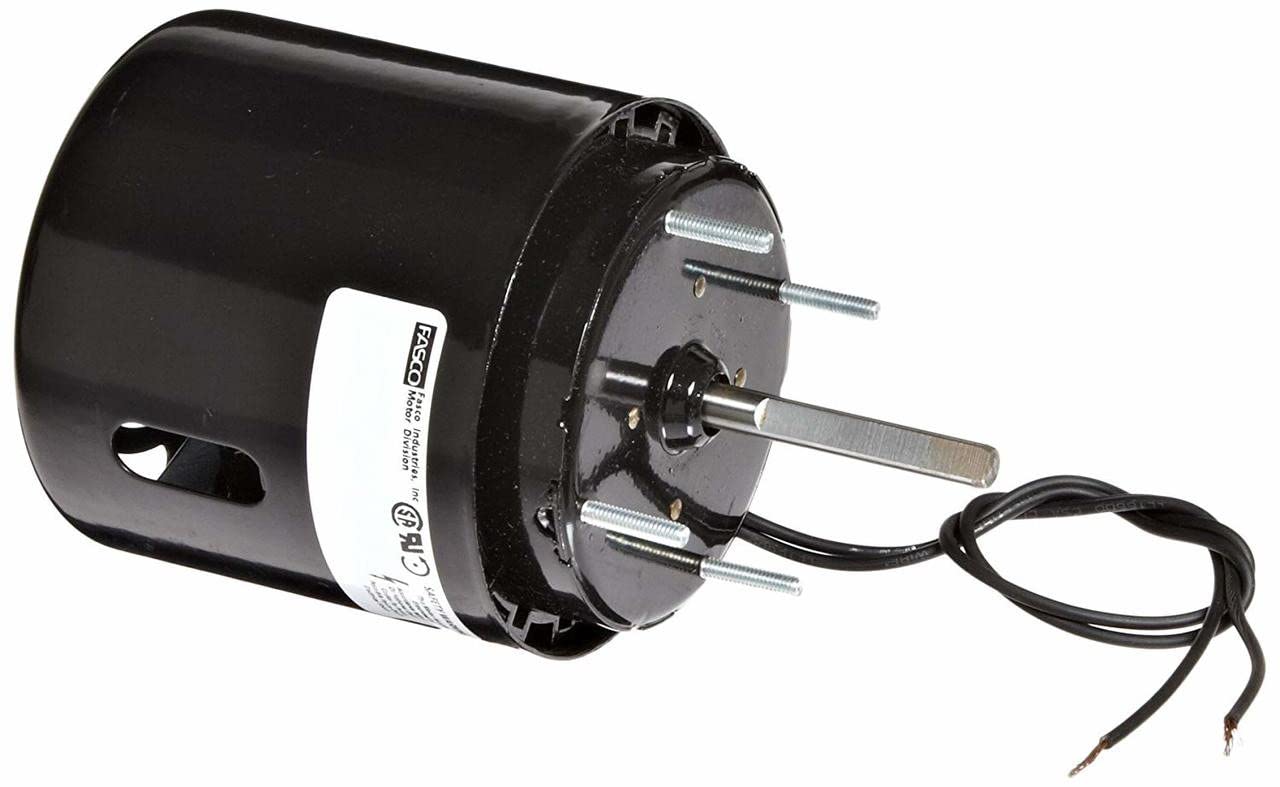

Fasco D135 Fan Motor 1/25 HP 1500 RPM 115 Volts

Product Description

The Fasco D135 fan motor is a reliable and efficient motor suitable for various cooling applications. This motor is designed for single-phase operation and features shaded pole technology.

• 3.3-inch frame diameter
• 1/25 HP
• 1500 RPM

Product Highlights

The Fasco D135 fan motor includes a shaded pole electrical type, counterclockwise shaft end rotation, and is thermally protected. It is ideal for use in HVAC systems and other fan applications.

Product Information

Standard Information

• Amperage: 1.7
• Voltage: 115 Volts
• Phase: Single
• Frame Diameter: 3.3 inches

Technical Specifications

• Motor Name: D135
• Power Rating: 0.04 kW
• Frequency: 60 Hz
• Insulation Class: B
• Enclosure: Totally Enclosed Air Over
• Bearings Type: Sleeve
• Mounting Type: Extended Studs
• Shaft Type: Flat
• Shaft Extension: 2.3 inches
• Motor Length: 7.75 inches
• Motor Width: 3.75 inches
• Motor Height: 3.75 inches
• Weight: 5 pounds
