Fantech RSK6,Damper RSK Series 6 inches Backdraft Damper

Product Description

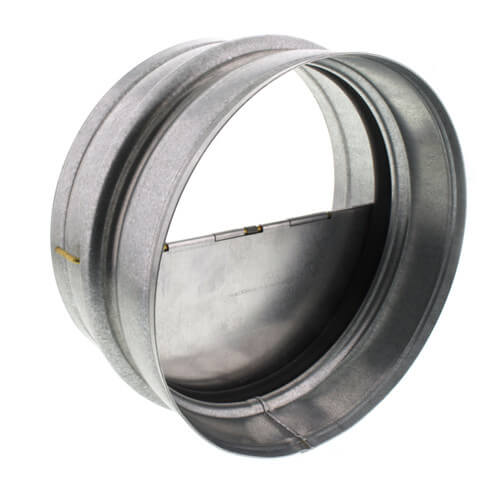

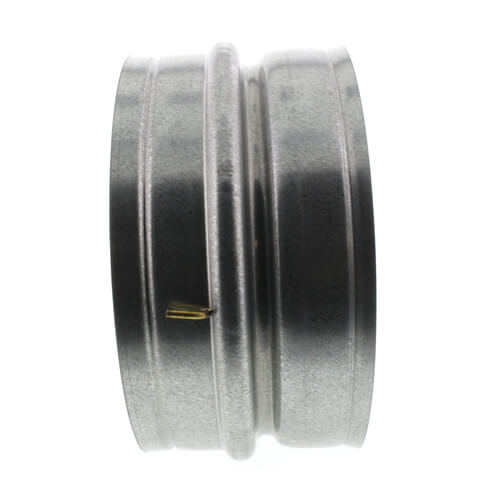

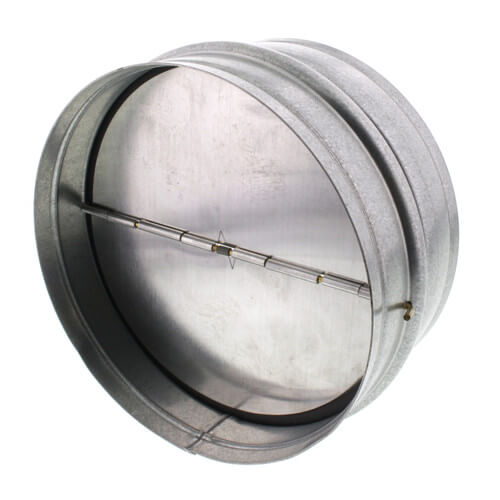

The FANTECH RSK6,Damper is a backdraft damper for circular ducts, manufactured from galvanized sheet metal. The damper features two spring-loaded blades and is built with performance in mind. It keeps air from blowing back into the space when the fan is turned off. The damper can be mounted vertically.

• Manufactured from 24 Gauge G90 Steel
• Features spring loaded blades
• Can be mounted vertically

Product Highlights

The FANTECH RSK6,Damper backdraft damper is designed to prevent air backflow in circular ducts, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: RSK6,Damper

Technical Specifications

• CATALOG NUMBER: RSK6,Damper
• Category: HVAC/R & Fans
• Item: Damper
• Type: Circular
• Opening Size: 6 Inch
• Overall Size: 3-1/8 Inch Length
• Material: 24 Gauge G90 Steel
• Finish: Galvanized
• Central Rod Size: 3/32 Inch
• Mounting Type: Vertical
• Manufacturer Name: Fantech
• Manufacturer Part Number: 411114
• Manufacturer Part Number Additional: RSK-6
• Series/Model: RSK
• UNSPSC Code: 40101504
• UPC: 650737690601
• Material (Damper Blade): Aluminum H14
• Material (Central Rod): Brass
• Material (Torsion Spring): Stainless Steel
• Material (Gasket): EPBM Synthetic Rubber
• Duct Size: 6"
