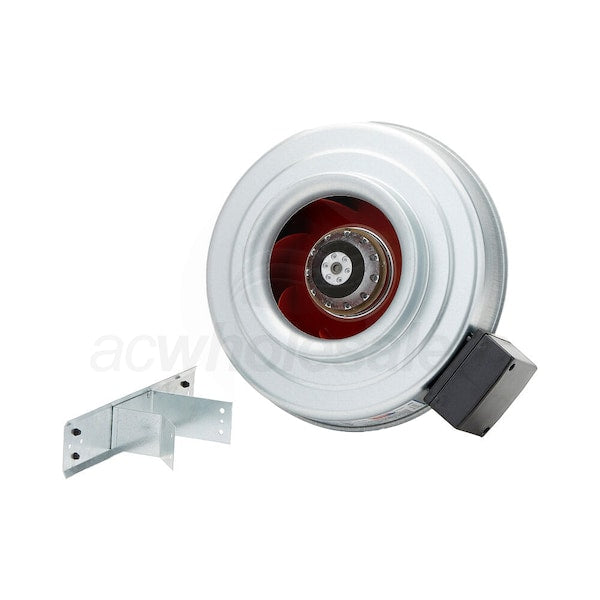

Fantech FG8 Centrifugal Inline Fan with 8 Inch Duct Opening

Product Description

The Fantech FG8 is a centrifugal inline fan with an eight-inch duct opening. It features a galvanized steel housing for durability, ensuring optimal airflow in various ventilation applications. This fan operates at 120 volts and can achieve a maximum airflow of four hundred sixty-one CFM. Designed for installation in duct work, it helps improve ventilation effectively.

• Maximum airflow of four hundred sixty-one CFM
• Rated for air temperatures up to one hundred forty degrees Fahrenheit
• Includes mounting bracket for easy ceiling or wall installation

Product Highlights

This inline duct fan is suitable for outdoor use and suitable for various HVAC applications. It is equipped with features like thermal overload protection, ensuring safety and longevity.

Product Information

Standard Information

• Brand: Fantech
• MPN: FG8

Technical Specifications

• Power Supply: 120V, 5A
• Max. Air Flow: 461 CFM
• Impeller Design: Backward curved
• Dimensions: 13 3/8 inches diameter
• Shipping Weight: 12 pounds
• Electrical Phase: 1
• Certification: UL Listed, CSA Listed
• Warranty: 5 years parts warranty
