Fantech 474049 MUAS 8 Unitary Makeup Air

Product Description

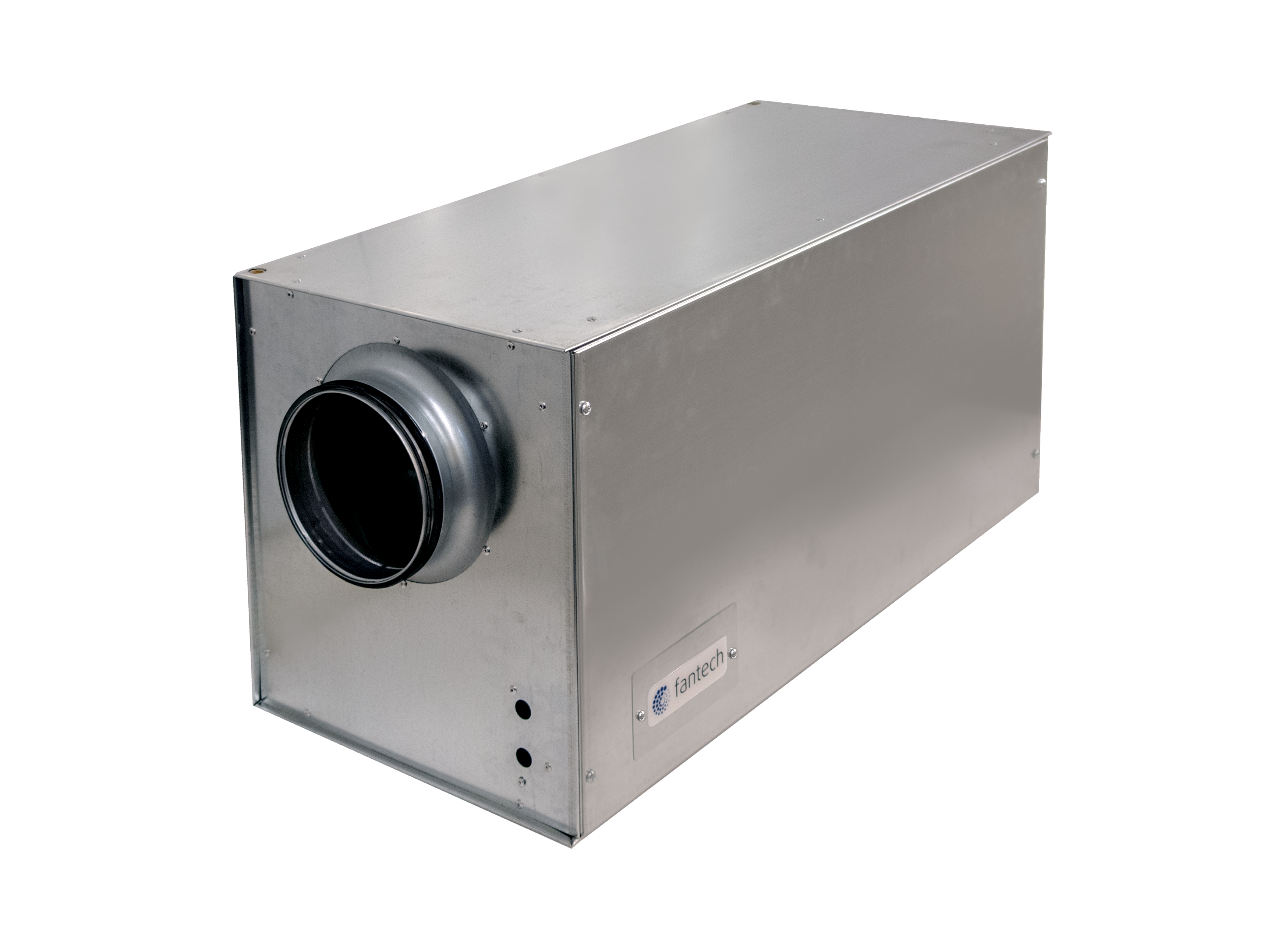

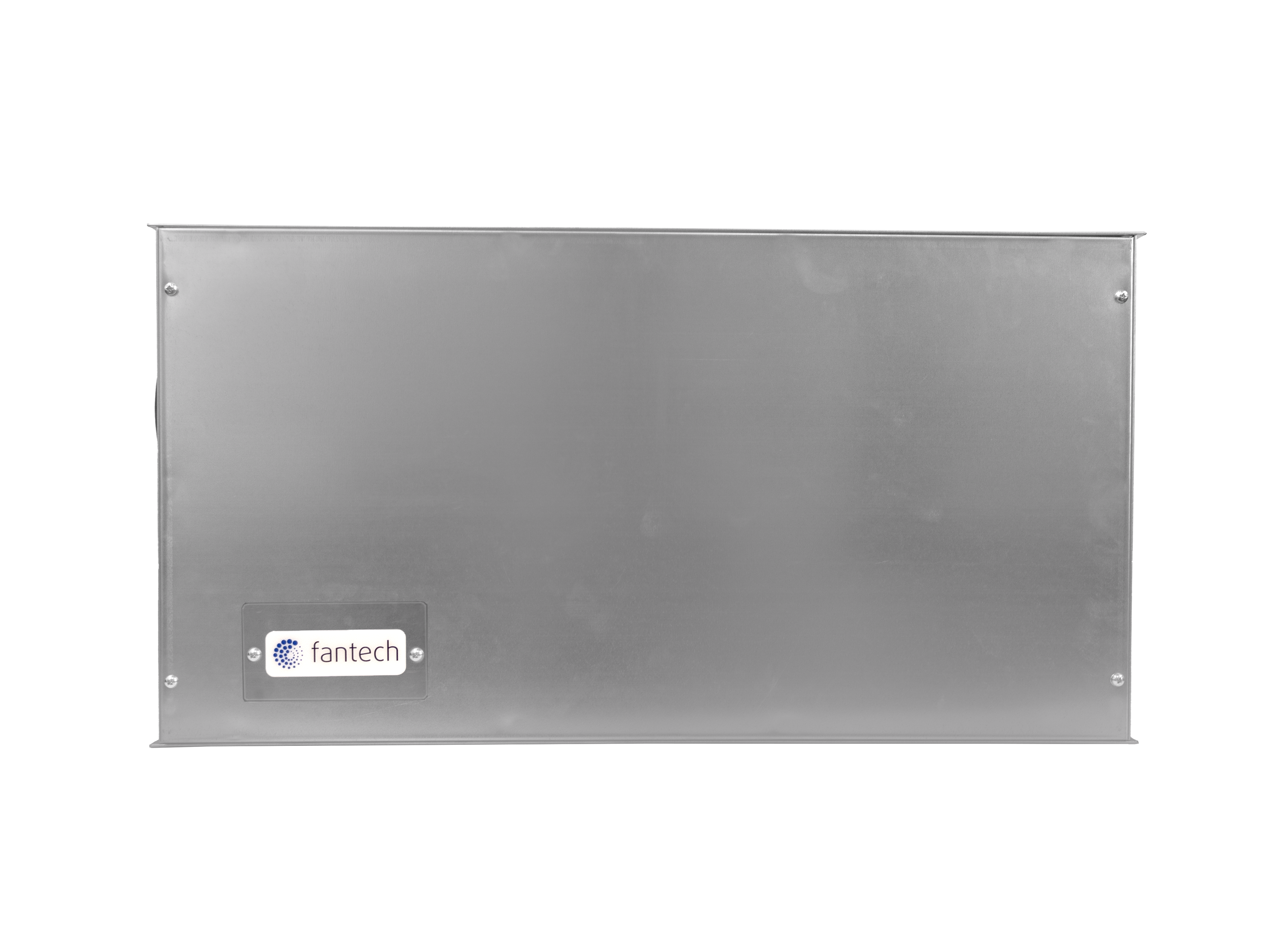

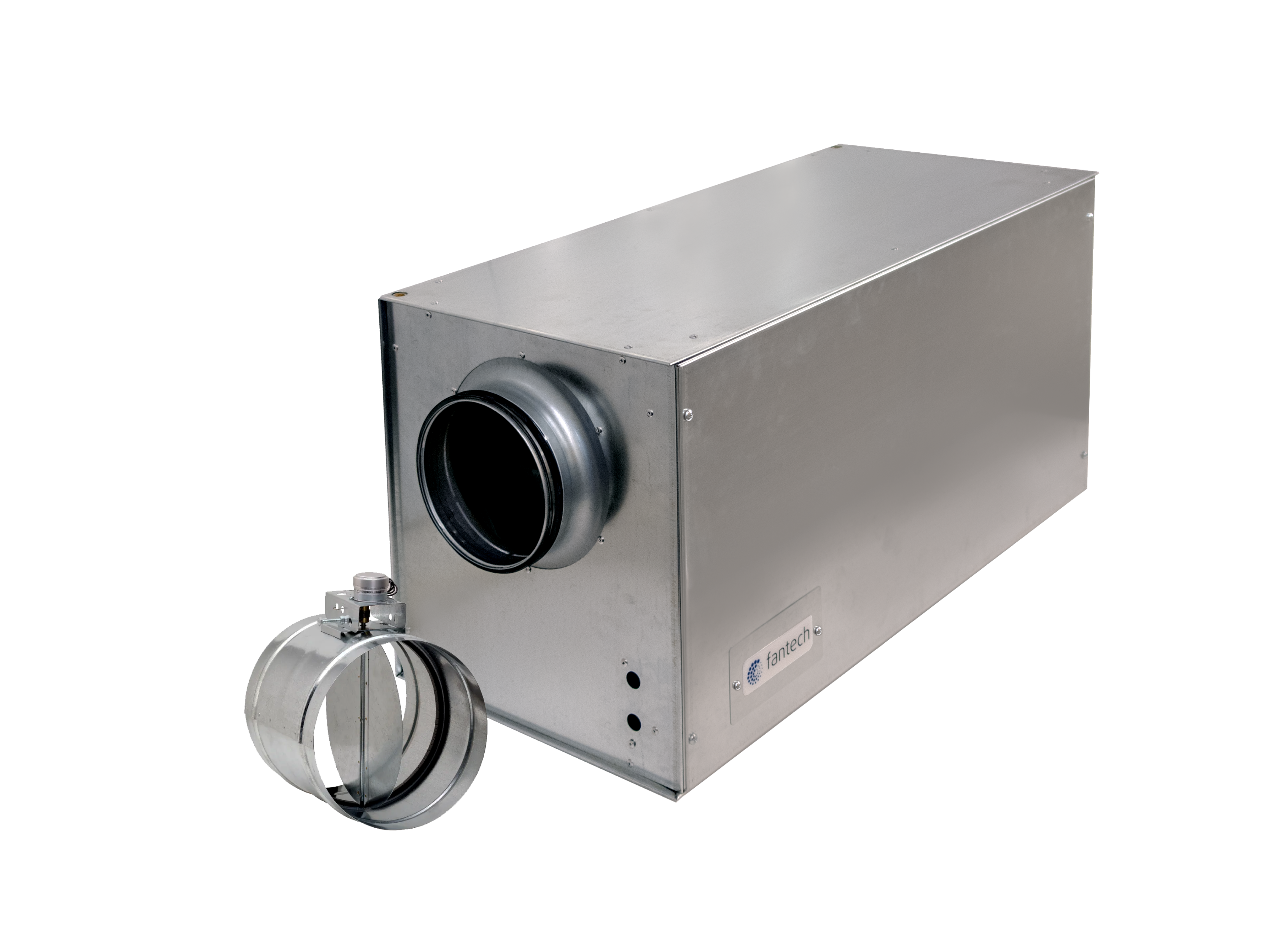

The FANTECH 474049 MUAS 8 Unitary Makeup Air system balances residential kitchen exhaust by variably adjusting supply airflow in proportion to the exhaust. It filters outdoor particles before delivering fresh air and includes a Fantech Makeup Air Controller (FMAC) for automatic operation. The system can be installed in a linear or snake-like formation.

• Automatic Airflow Adjustment
• Enhanced Indoor Air Quality
• Versatile Installation

Product Highlights

Balances residential kitchen exhaust, filters outdoor particles, and provides automatic operation with the included controller.

Product Information

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: 474049
• Country of Origin: USA

Technical Specifications

• Item name: MUAS 8 Unitary Makeup Air
• Item number: #474049
• Input Voltage: 120 V
• Frequency: 60 Hz
• Phases: 1~
• Input power: 180 W
• Input Current: 2.49 A
• Air flow: max. 757 cfm
• Insulation class: B
• Certificate: HVI-916, UL 507
• Static Pressure (In. Wg.): 0.20
• Rated Airflow (CFM): 690
• Rated Power (Watts): 179
• Duct connection type: Circular
• Motor type: EC
• Air Flow (CFM): 700
• Maximum Voltage: 120V
• Makeup Air System: MUAS
• Duct Inlet: 8-10 inch
• Duct Outlet: 8-10 inch
• Insulation: 1-inch eco-friendly mineral wool
• Motor: Electronically commutated (EC) motor
