Product Description

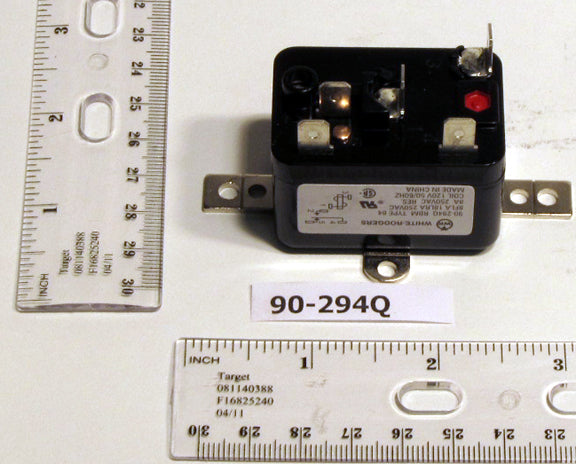

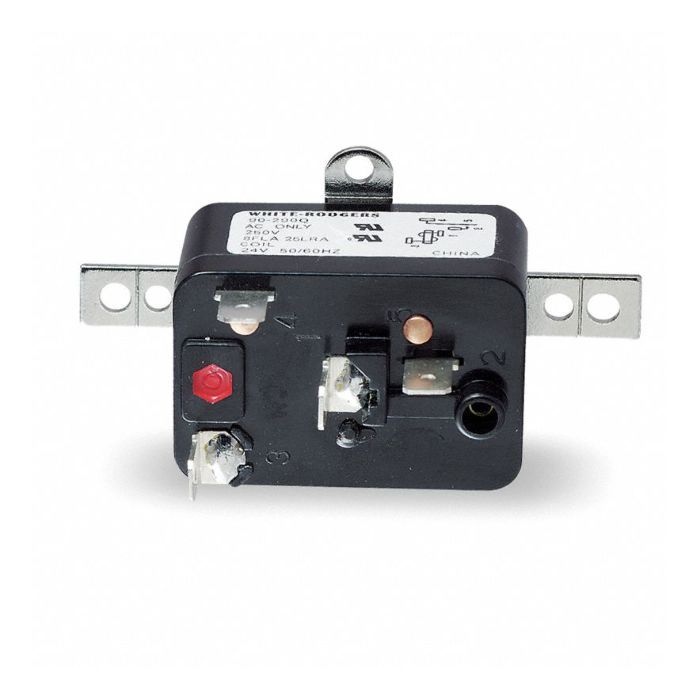

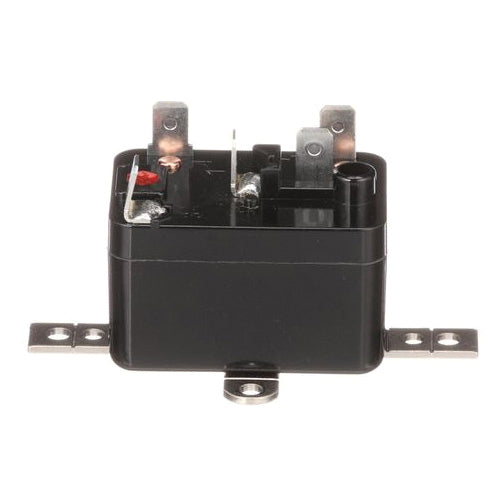

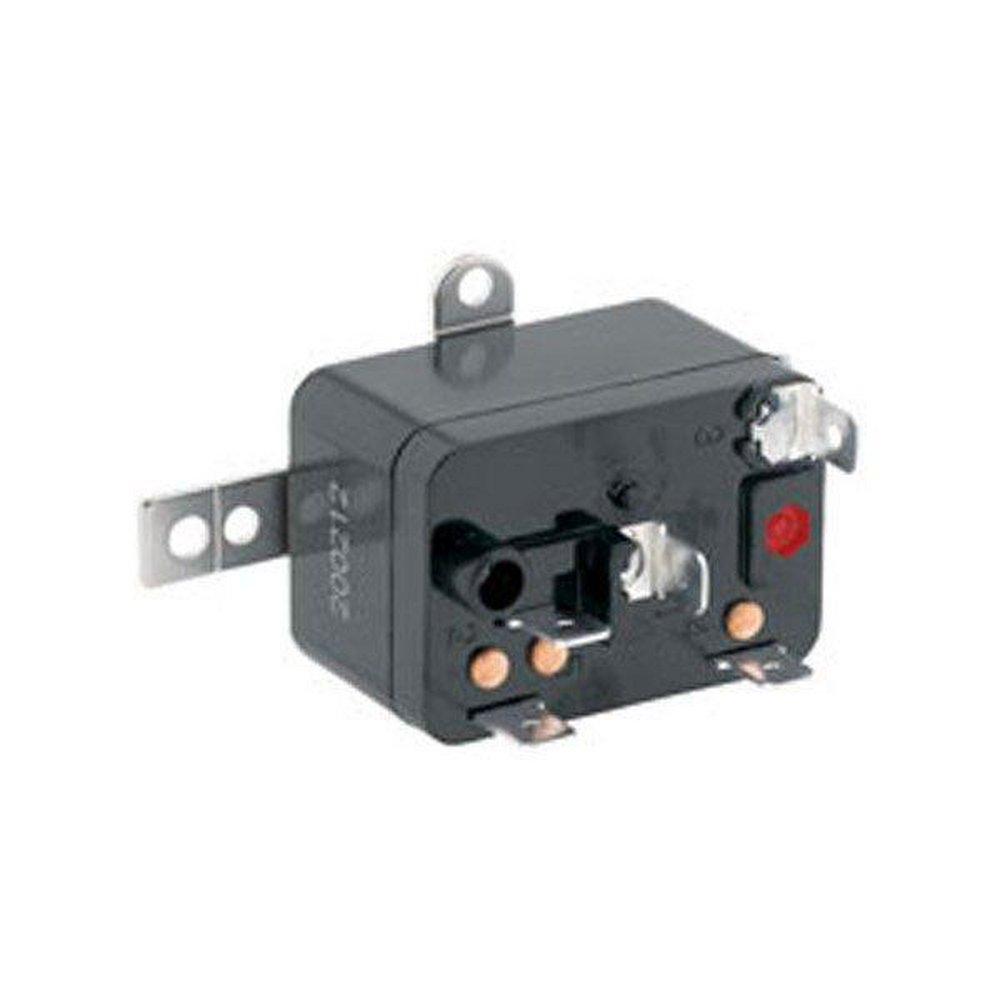

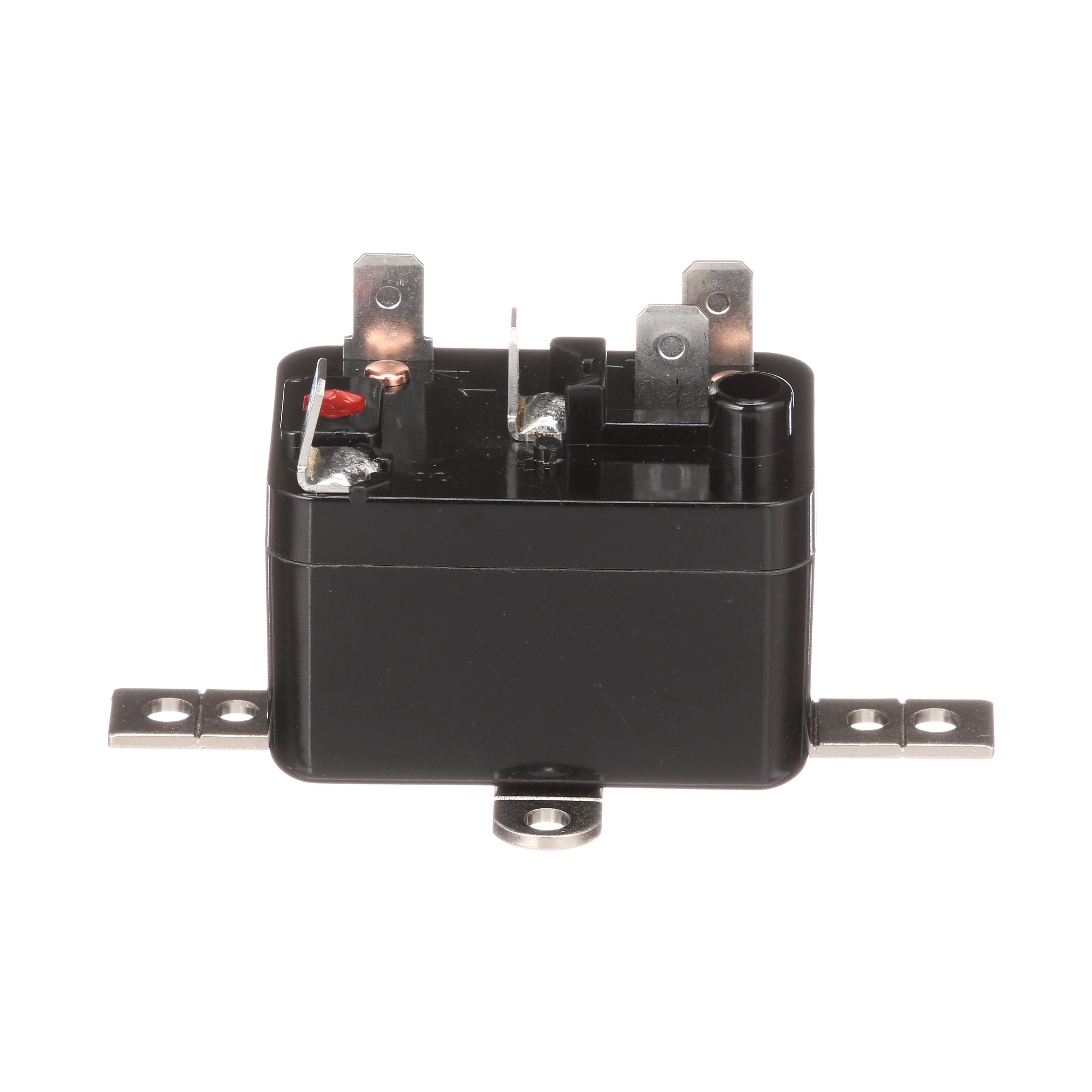

The White-Rodgers 90-294Q is a fan relay with a 115/120 VAC coil. This SPDT relay features a totally enclosed design and is suitable for switching single or two-speed fan motors and solenoids. It has quick-connect electrical connections and a coil resistance of 2,000 ohms.
- Totally enclosed design
- Quiet operation
- Suitable for resistive loads, single or two-speed fan motors, and solenoids
Product Highlights
This White-Rodgers fan relay is designed for general-purpose switching applications. It is ideal for use with resistive loads, fan motors and solenoids.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 90-294Q
-
Country of Origin: China
Technical Specifications
-
Manufacturer: White-Rodgers / Emerson
-
Item Model Number: 90-294Q
-
Type: Type 84
-
Sealing: Enclosed
-
Features: Totally Enclosed Design, Quiet
-
Includes: Quick Connect Push On Terminals
-
Mounting: Universal
-
Frequency: 50/60 Hz
-
Standards: CSA/CUS Certificate No. LR13360, UR/CUR File No. E12139
-
Body Depth: 1.88 in
-
Body Width: 2.13 in
-
Coil Voltage: 115/120 VAC
-
Application: For Switching Single or Two-speed Fan Motors, Solenoids, Relays, Resistive Loads and other General-purpose Switching
-
Body Height: 2.25 in
-
Switch Type: SPDT
-
Contact Form: SPDT
-
For Use With: Resistive Loads, Single or Two Speed Fan Motors, Solenoids
-
Input Voltage: 120V AC
-
Current Rating: 25 mA
-
Mounting Style: Universal
-
Coil Resistance: 2,000 ohm
-
Agency Compliance: UL
-
Coil Voltage Type: AC
-
Operating Current: 8 A at 125/250V AC (Inductive Load), 8 A at 125/250V AC (Resistive Load)
-
Power Consumption: 3 VA
-
Contact Rating (AC): 25 A @ 125/250V
-
Relay Mounting Style: Surface
-
Electrical Connection: Quick-Connect
-
Resistive Amps @ 120V: 16.0
-
Resistive Amps @ 240V: 16.0
-
Resistive Amps @ 277V: 6.0
-
Full Load Amps @ 120VAC: 8
-
Full Load Amps @ 240VAC: 8
-
Environmental Protection: Enclosed
-
Electrical Connection Type: Tab
-
Maximum Operating Temperature: 150 Degrees F
-
Minimum Operating Temperature: -40 Degrees F
-
Electrical Operating Durability: 100,000
-
Mechanical Operating Durability: 1,000,000
-
Country of Origin (subject to change): China
-
Coil Data: 2,000 Ohms Dc Resistance, 25 Ma (Nominal), 3 Va (Nominal), 4 Va (Inrush)
-
Contact Rating: 125 / 250 Vac, Inductive: 8 Amps, Continuous
-
Accessory Type: Fan Relay
-
Frequency Rating: 50/60 Hz
-
Manufacturer Name: Emerson Electric
-
Configuration: SPDT (Single Pole Double Throw)
-
Temperature Range (F): -40°F to 150°F
-
Voltage: 120v
-
Electric Connection: 1/4" Quick-Connect Terminals
-
Coil Data DC Resistance: 2,000 Ohms
-
Coil Data Nominal: 25 mA, 3 VA
-
Coil Data Inrush: 4 VA
-
Contact Rating Inductive: 8 Amps Continuous, 25 Amps Inrush
-
Contact Rating Resistive: 16 Amps Continuous
-
Brand: White-Rodgers
-
Model / MPN: 90-294Q
-
Product Type: RELAY
-
Contact Current Rating: 25 A
-
Contact Voltage Rating: 240 VAC
-
Mounting Type: Surface Mount
-
Relay Type: Electromechanical
-
Series: 90 Series
-
Termination: Screw terminal
-
Coil Data VA (Nominal): 3 VA
-
Coil Data VA (Inrush): 4 VA
-
Inductive: 8 Amps Continuous, 25 Amps Inrush
-
Resistive: 16 Amps Continuous
