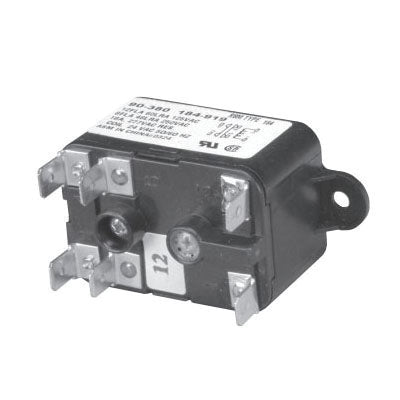

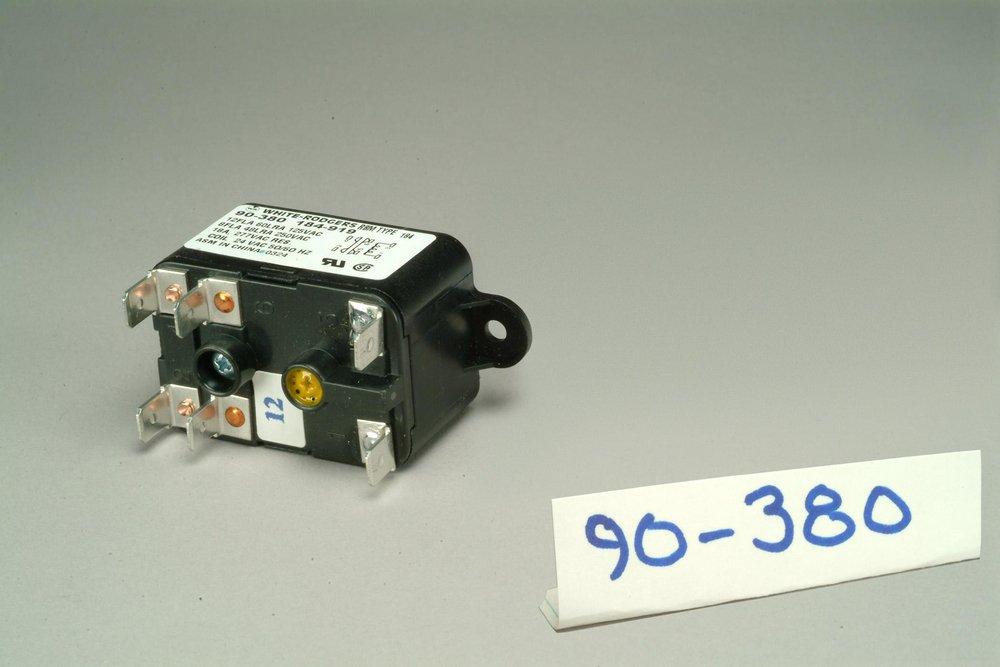

White-Rodgers 90-380 25 Amp 24V Type SPNO-SPNC Heavy Duty Fan Switching Relay

Product Description

The White-Rodgers 90-380 25 Amp 24V Type SPNO-SPNC Heavy Duty Fan Switching Relay is designed for reliable operation in various HVAC systems. It features a compact, totally enclosed design suitable for both heating and cooling applications and general switching tasks.

• Reliable operation in any position
• Quiet and economical performance
• Suitable for heating and cooling applications

Product Highlights

This relay is perfect for controlling fans in HVAC systems, ensuring dependable performance and long-lasting functionality.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 90-380

Technical Specifications

• Type: Heavy Duty
• Dimensions: 1.265 in L x 1.265 in W x 2.67 in H
• Coil Voltage: 24 VAC
• Contact Form: NO-NC SPST
• Terminal Type: Quick-Connect
• Contact Rating: 12/60 A at 125 VAC, 8/48 A at 250 VAC, 18 A at 277 VAC
• Enclosure Type: Totally Enclosed
• Amperage Rating: 1 mA
• Number of Poles: 1
• Frequency Rating: 50/60 Hz
• Country of Origin: CN
• Manufacturer Name: Emerson Electric
• Temperature Rating: -40 to 150 deg F
