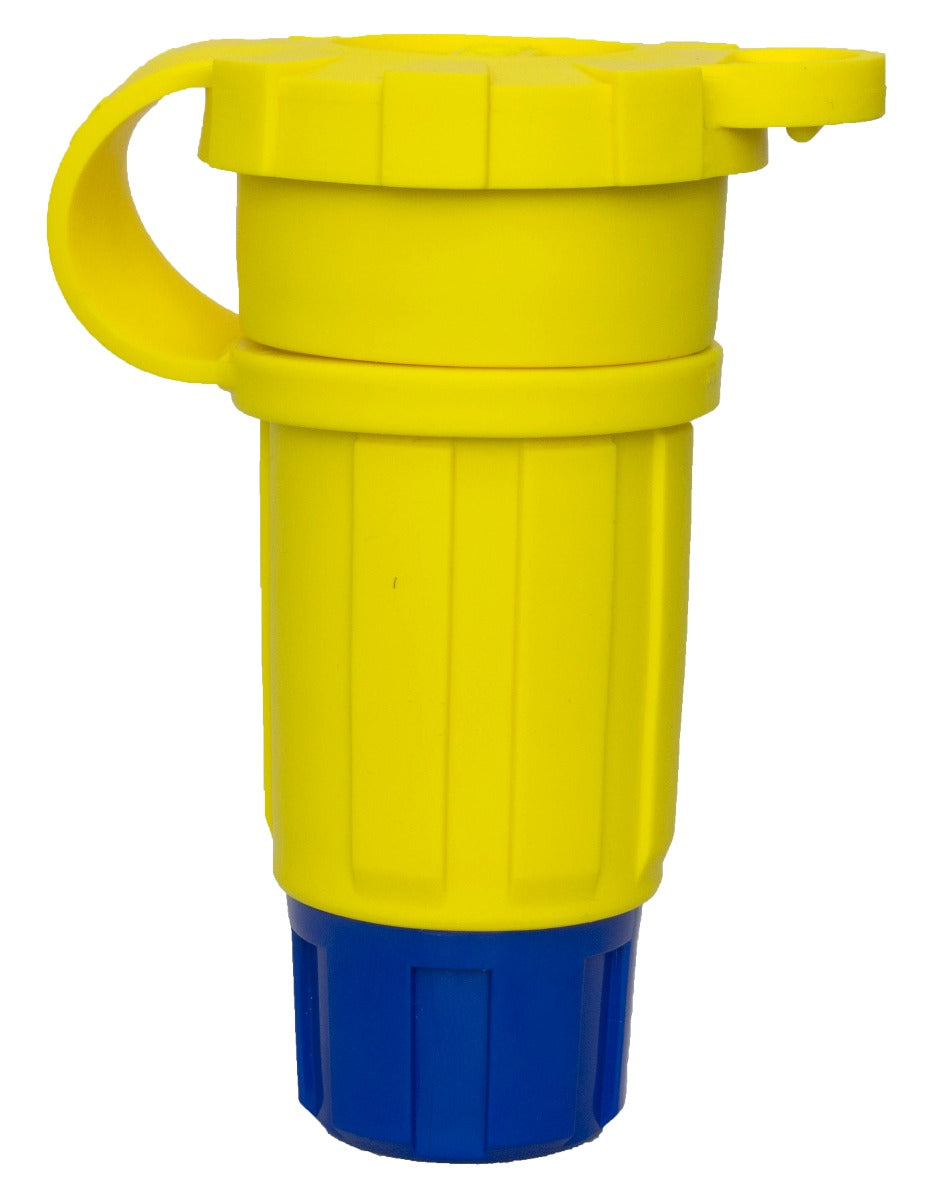

Ericson 1624-CW6P Connector 15AMP-277VAC Locking Type

Product Description

The Ericson 1624-CW6P is a Perma-Tite Locking Blade Connector designed for efficient electrical service. This connector operates at 277 VAC and is rated for 15 Amperes. It features a grounding mechanism and supports two poles with three wires, making it suitable for various applications.

• Meets NEMA L7-15 rating for safe use.
• Designed for environments requiring NEMA 4, 4X, 6, 6P, and IP67 protection.
• Durable construction with high visibility colors.

Product Highlights

This connector is built for industrial settings and is resistant to corrosion, chemicals, and high-pressure washdowns. It fits within the demanding requirements of food processing, refineries, and marine applications.

Product Information

Standard Information

• Manufacturer: Ericson Manufacturing
• UPC: 78286282491

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 15 A
• Application: Food Processing, Pulp and Paper Mills, Refineries, Petrochemical Facilities, Utilities
• Color: Blue/Safety Yellow
• Dimensions: 1.81 in Diameter x 4.01 in Length
• Enclosure Rating: NEMA 4/4X/6/6P/IP67
• Material: Polybutylene Terephthalate
• NEMA Rating: NEMA L7-15
• Number of Wires: 3
• Number of Poles: 2
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL Listed
