ERICO CWP2J Water/Gas Pipe Ground Clamp 1 1/4-2 Pipe #10 Solid-#2 Stranded

Product Description

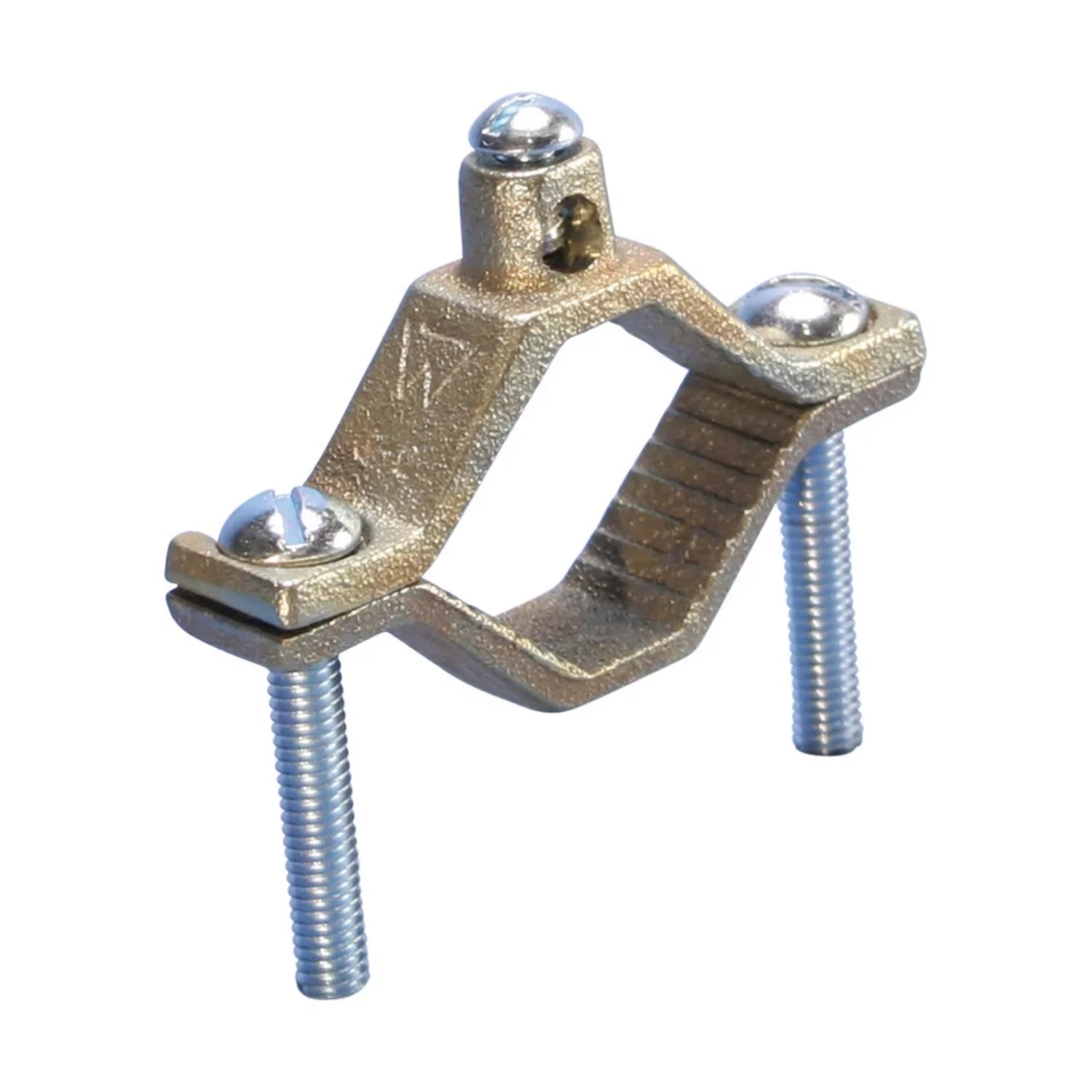

The ERICO CWP2J is a water and gas pipe ground clamp designed for use on pipes ranging from one and one quarter inches to two inches. It accommodates conductors from ten AWG solid to two AWG stranded, making it versatile for different electrical applications. This ground clamp is made of high-strength silicon bronze, which provides durability and resistance to corrosion.

• Compatible with copper conductors for effective grounding.
• Meets NFPA 54 and NEC standards for safe installation.
• Suitable for both indoor and outdoor applications.

Product Highlights

The clamp connects copper wires to metallic pipes or ground rods securely, ensuring a reliable grounding for gas piping systems.

Product Information

Standard Information

• Manufacturer: ERICO INC
• Type: Gas/Water

Technical Specifications

• Conductor Size: 10 AWG Solid to 2 AWG Stranded, 6 to 25 sq-mm Stranded
• Conductor Type: Solid/Stranded
• Material: Silicon Bronze
• Pipe Size: 1-1/4 to 2 in
• Standards: cULus Listed, CSA File No. 234283
