EPCO 15245 SPIDERBOX Junction Box with Glue-in Hubs

Product Description

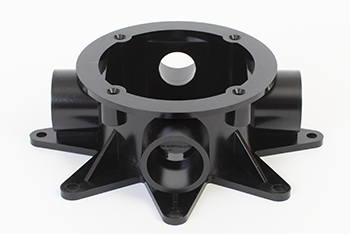

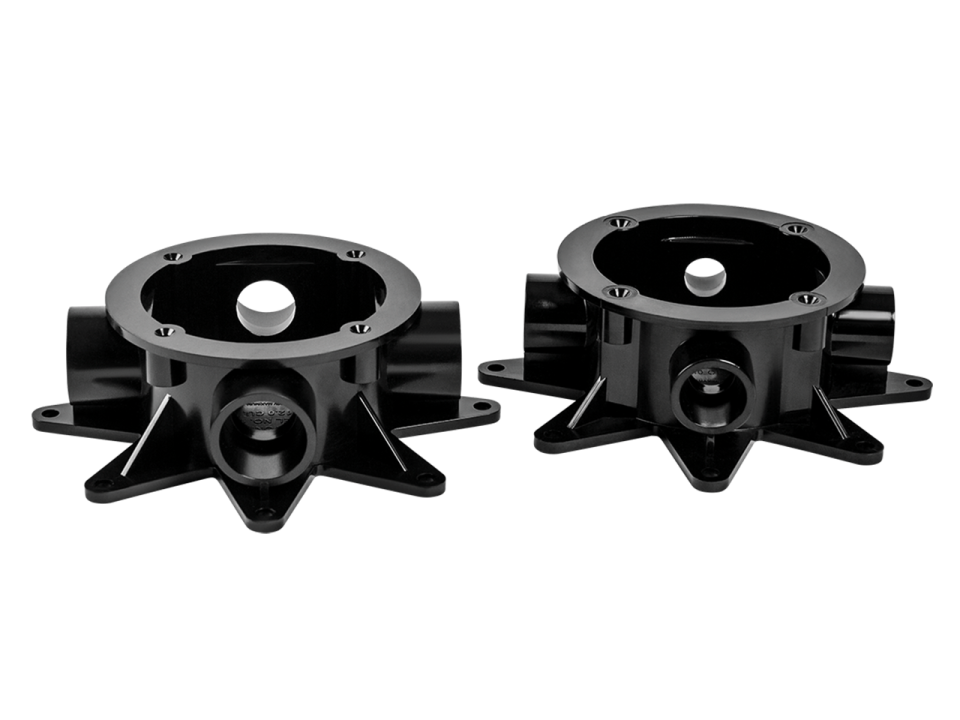

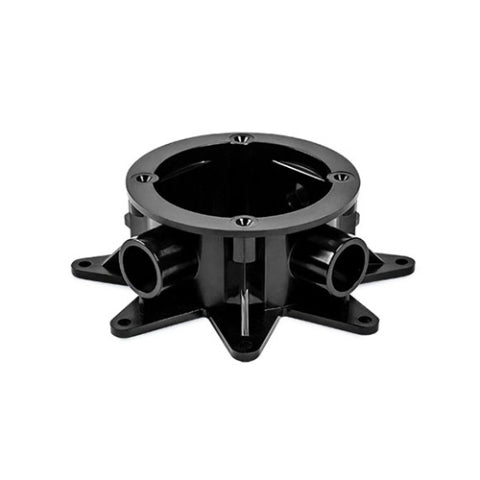

The EPCO SPIDERBOX Junction Box, MPN 15245, simplifies the installation of schedule 40 PVC conduit. This junction box allows for a direct connection without the need for a male terminal adapter. Made from durable UL94-VA thermoplastic, it is designed to last.

• Features four glue-in hubs; two open and two closed.
• Compatible with three quarter inch or half inch schedule 40 PVC conduit.
• Appropriate for dry, damp, and wet locations.

Product Highlights

The junction box is ideal for various lighting applications, supporting EPCO's ProSeries and ProSeries Junior LED Utility Luminaires, along with the 15000 Series Utility Light Fixtures.

Product Information

Standard Information

• Volume: 12 Cubic Inches
• Ports: 4 (2 Open, 2 Closed)

Technical Specifications

• Port Size: 3/4 or 1/2 Trade Size
• Conduit Compatibility: 3/4 or 1/2 PVC
• Mounting: #8 Screws
• Fixture Mounting: #8 x 3/4 Screws
• Material: UL94 - VA Thermoplastic
• Safety Certifications: cETLus Listed to UL 5A
• Application: Dry, Damp, and Wet Locations
• Operating Temperature: -4°F (20°C) to 122°F (50°C)
• Warranty: 1 Year
• Packaging: 24 per Carton (BULK)
