Enerpac SCR506H Hand Pump Maintenance Set 50 Ton (6.25 in Stroke)

Product Description

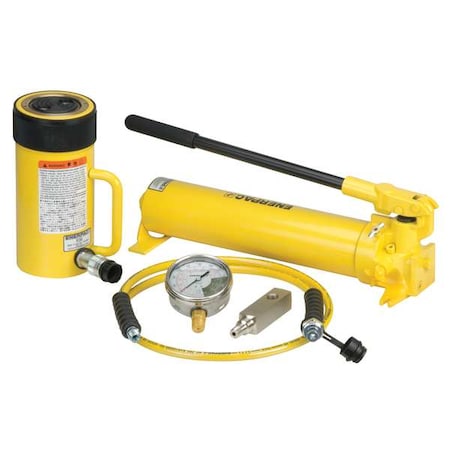

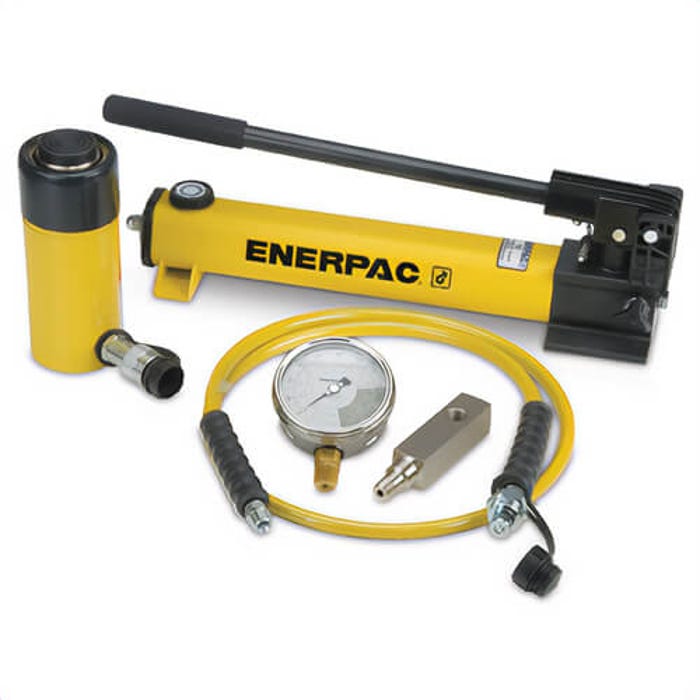

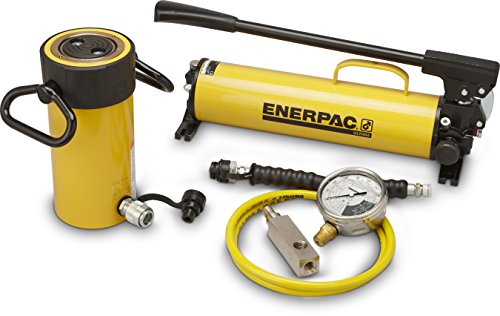

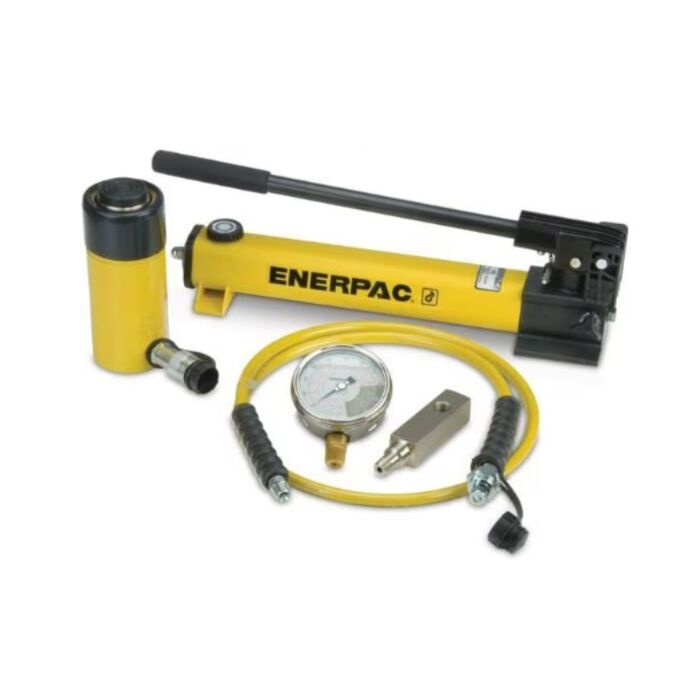

Enerpac SCR506H is a hydraulic hand pump maintenance set that pairs an RC-506 single-acting cylinder with a P-80 two-speed hand pump for 50 ton nominal capacity and a 6.25 in stroke. The set is rated to 10,000 psi and includes a calibrated gauge, gauge adapter, and hose for immediate use. Typical applications include lifting, pressing, pulling, and other industrial force tasks.

• 50 ton nominal cylinder capacity with 6.25 in stroke and 11.13 in retracted height
• Two-speed P-80 hand pump rated to 10,000 psi; hand pumps are two-speed for rapid advance and high-force output
• Includes RC-506 single-acting cylinder, calibrated gauge, gauge adapter, and hose (6 ft hose on several sources)

Product Highlights

50 ton single-acting RC series cylinder with P-80 two-speed hand pump, 6.25 in stroke, 10,000 psi rating, includes gauge, adapter, and hose.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SCR506H
• Country of Origin: China

Technical Specifications

• Brand: Enerpac
• Manufacturer Part Number: SCR506H
• Product Name: Hand Pump Maintenance Set
• Capacity: 50 ton
• Stroke: 6.25 in
• Retracted Height: 11.13 in
• Maximum Operating Pressure: 10,000 psi
• Pump Type: Hand, two-speed
• Cylinder Type: Single-acting RC series
• Included Items: RC-506 single-acting cylinder; P-80 two-speed hand pump; calibrated gauge; gauge adapter; hose
• Hose Length: 6 ft
• Max Handle Effort: 104 lb
• Weight: 90.0 lb
• UPC / EAN: 662005804313
• Country of Origin: China
• Series: SCR (RC Series cylinder)
