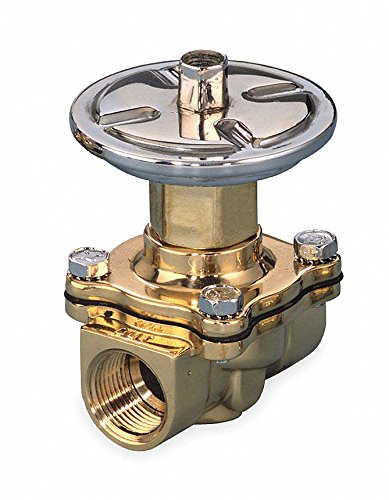

CAI - ASCO P210C093 Air Operated Valve Power 5/8 Orifice Dia

Product Description

The CAI - ASCO P210C093 is an air operated valve designed for efficiency in controlling fluid flow. This normally closed valve features a 5/8 inch orifice diameter, making it suitable for various applications in HVAC and plumbing systems. The valve operates within a range of thirty to one hundred twenty-five psi and can withstand fluid temperatures up to one hundred eighty degrees Fahrenheit.

• Pipe Size: 3/8 inch
• Coefficient of Volume: 2.8
• Body Material: Brass

Product Highlights

Designed for reliable operation with a minimal operating pressure differential of zero psi and a maximum of one hundred twenty-five psi. The valve's compact dimensions make it suitable for tight installations.

Product Information

Standard Information

• Manufacturer: CAI - ASCO
• Valve Design: 2-Way

Technical Specifications

• Operating Pressure Range: 30 to 125 psi
• Fluid Temperature: Max 180 Degrees F
• Air Inlet: 1/8 FNPT
• Gasket Material: NBR
• Seat Material: NBR
• Center Line Pipe Center Size: 3-7/16 inches
• Overall Length: 2-3/4 inches
• Overall Width: 2-9/32 inches
• Overall Height: 4 inches
