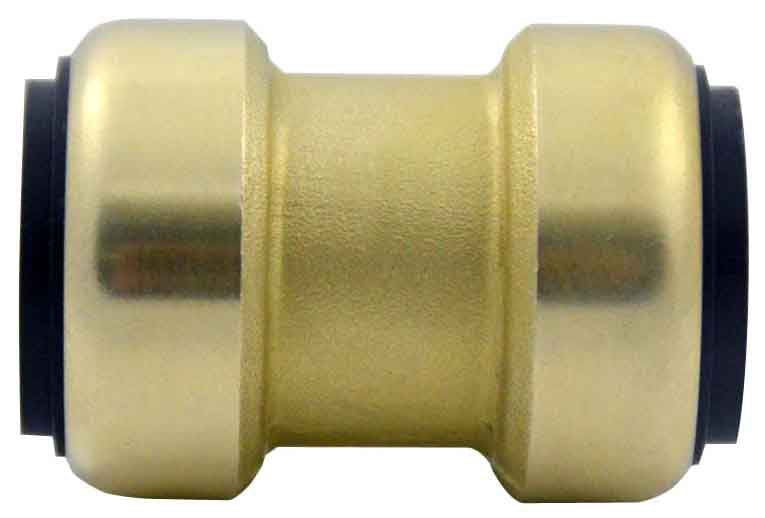

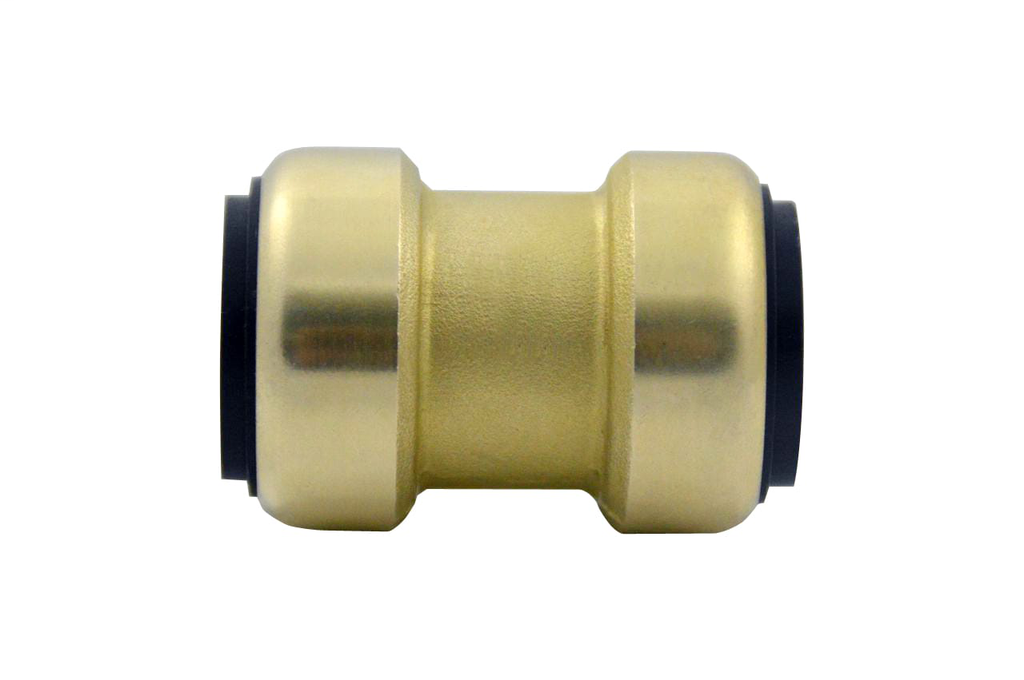

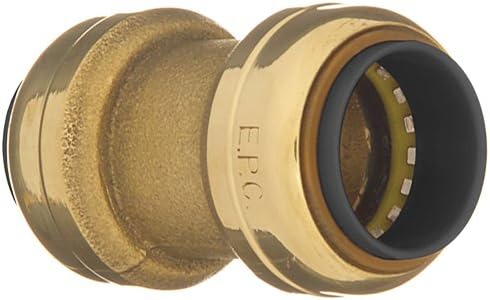

Elkhart Products 10155454 Coupling With Stop 3/4 Inch

Product Description

The Elkhart Products 10155454 coupling fitting features a stop, with size A and size B both at 3/4 inch. Constructed from brass, it uses a push-to-connect end connection on both sides. Suitable for industrial and residential applications, it has a pressure rating of 200 PSI and a temperature rating of 32 to 250 Deg F.

• No Special Tools Required for Installation
• Reduced Installation Time
• No Wire Brush, No Flux, No Solder, No Flame

Product Highlights

This lead-free coupling fitting includes a nylon guide ring and a 316 stainless steel grab ring. It is for use with various tubing types.

Product Information

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10155454
• Country of Origin: Hungary

Technical Specifications

• Applicable Standard: ASME B16.22/B16.18, NSF/ANSI 61/14, ASSSE 1061, IAPMO, CUPC, IPC
• Application: Industrial, Residential
• Brand Name: TECTITE
• End Connection: Push-to-Connect x Push-to-Connect
• Gasket Details: EPDM
• Gasket Supplied: Yes
• Material: Brass
• Pressure Rating: 200 PSI
• Product Sub-Type: Coupling Fitting
• Product Type: Coupling
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Temperature Rating: 32 to 250 Deg F
• Type: Stop
• Length: 1.23"
• Width: 2.26"
• Height: 1.23"
• Dimensions: 1.23" x 2.26" x 1.23"
• Product Line: TECTITE
• Industry: Industrial/Residential
• Compatible Model: 10155454
• Item Package Quantity: 1
• Measurement System: inch
• Part Number: 10155454
• Brand: Elkhart
• MPN: 10155454
