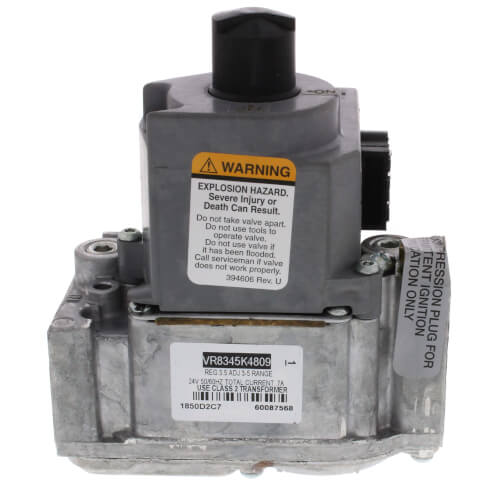

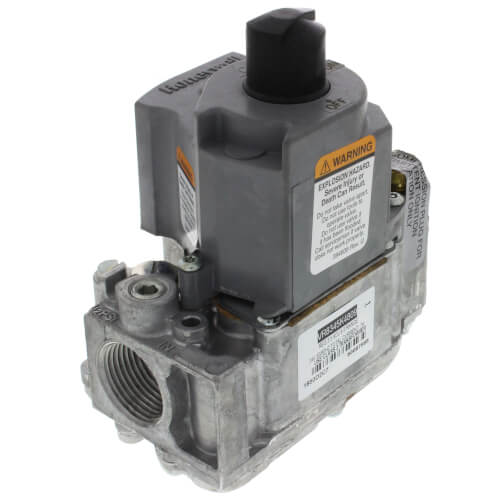

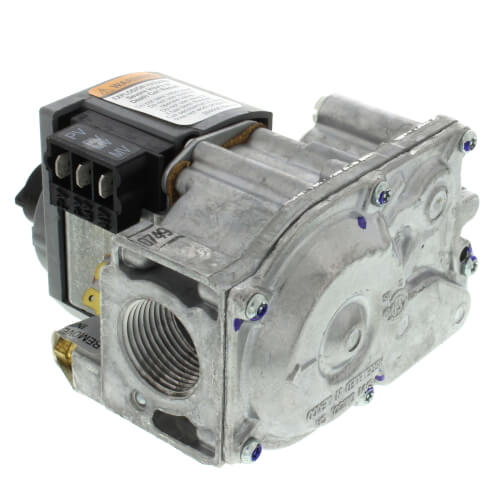

Resideo VR8345K4809 Electronic Ignition Gas Valve w/NG to LP Conversion Kit 24 VAC 3/4 x 3/4

Product Description

The Resideo VR8345K4809 is an electronic ignition gas valve equipped with a natural gas to liquid propane conversion kit. This 24 VAC valve features a 3/4 inch inlet and outlet, making it suitable for various heating applications.

• Electronic ignition
• Natural to propane conversion
• 3/4 inch inlet and outlet

Product Highlights

The Resideo VR8345K4809 is ideal for use with intermittent pilot, hot surface ignition, and direct spark ignition. It comes with convenient features such as 1/8 inch NPT inlet and outlet taps on top of the valve for easy adjustments and multipoise mounting, allowing for installation at any angle from 0 to 90 degrees.

Product Information

Standard Information

• BTU: 200,000
• Type: Electronic ignition

Technical Specifications

• Voltage: 24
• Ignition Type: Intermittent
• Fuel Type: Natural/LP Gas
• Inlet Connection: 3/4
• Outlet Connection: 3/4
• Opening Style: Standard
• Pressure Setting Range: 3.5 in wc NAT. GAS
• Max. Inlet Pressure: 1/2 psi
• Ambient Temp. Range: -40 to 175 Degrees F
