Eemax SPEX-55-TML LavAdvantage 5.5kW

Product Description

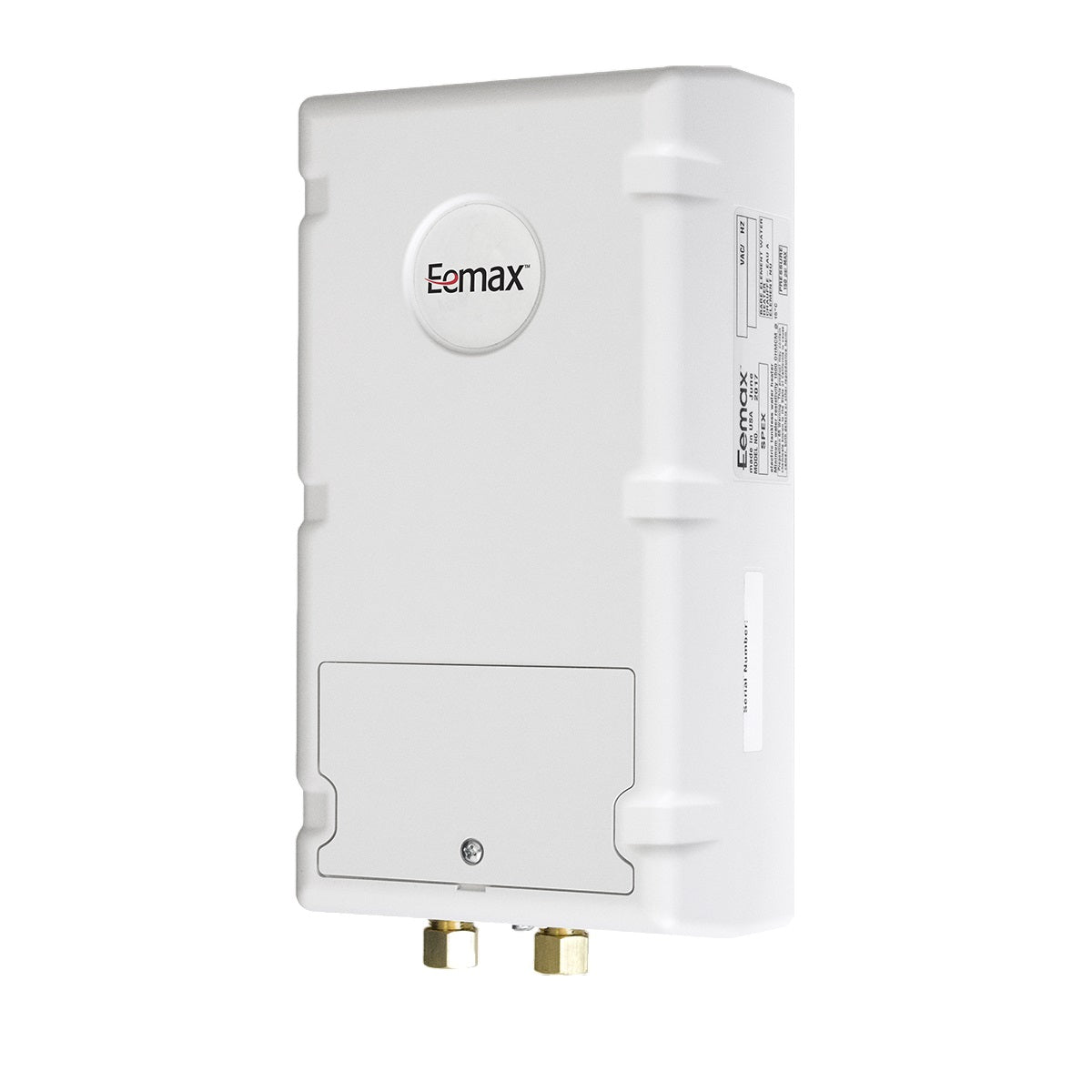

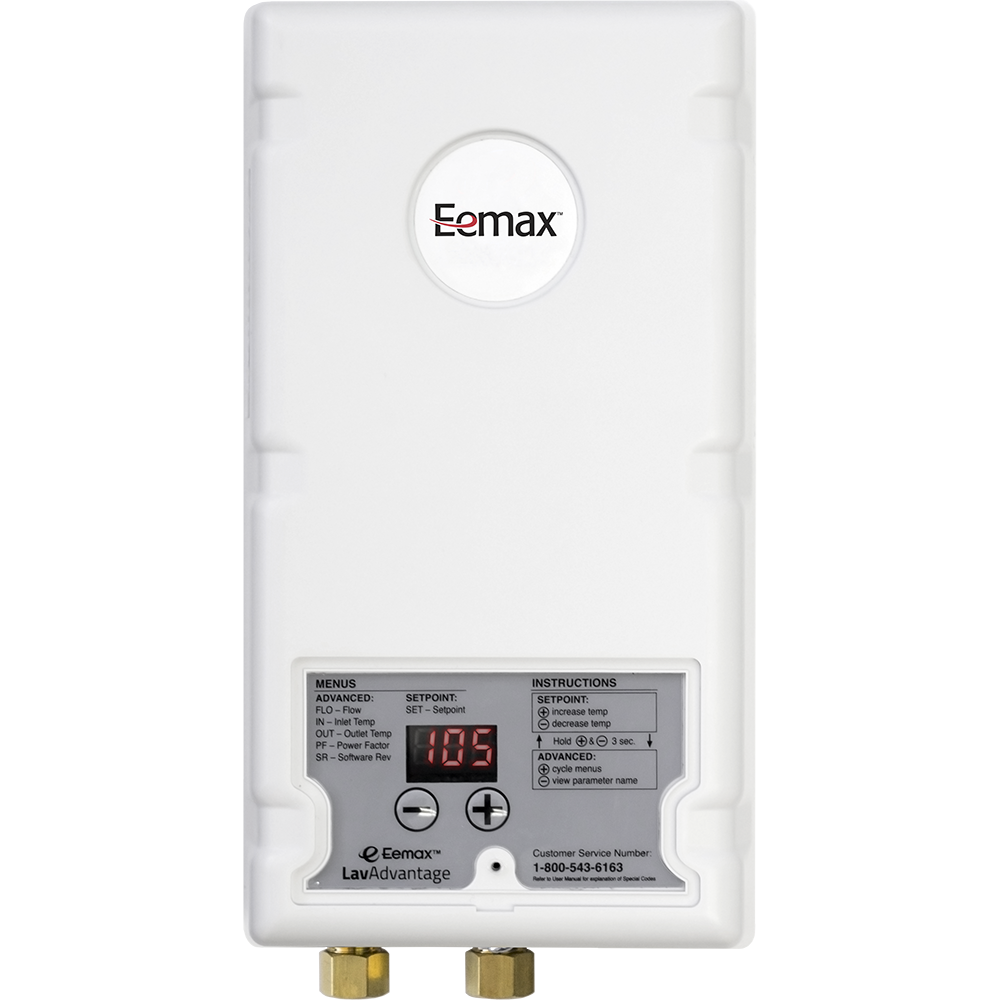

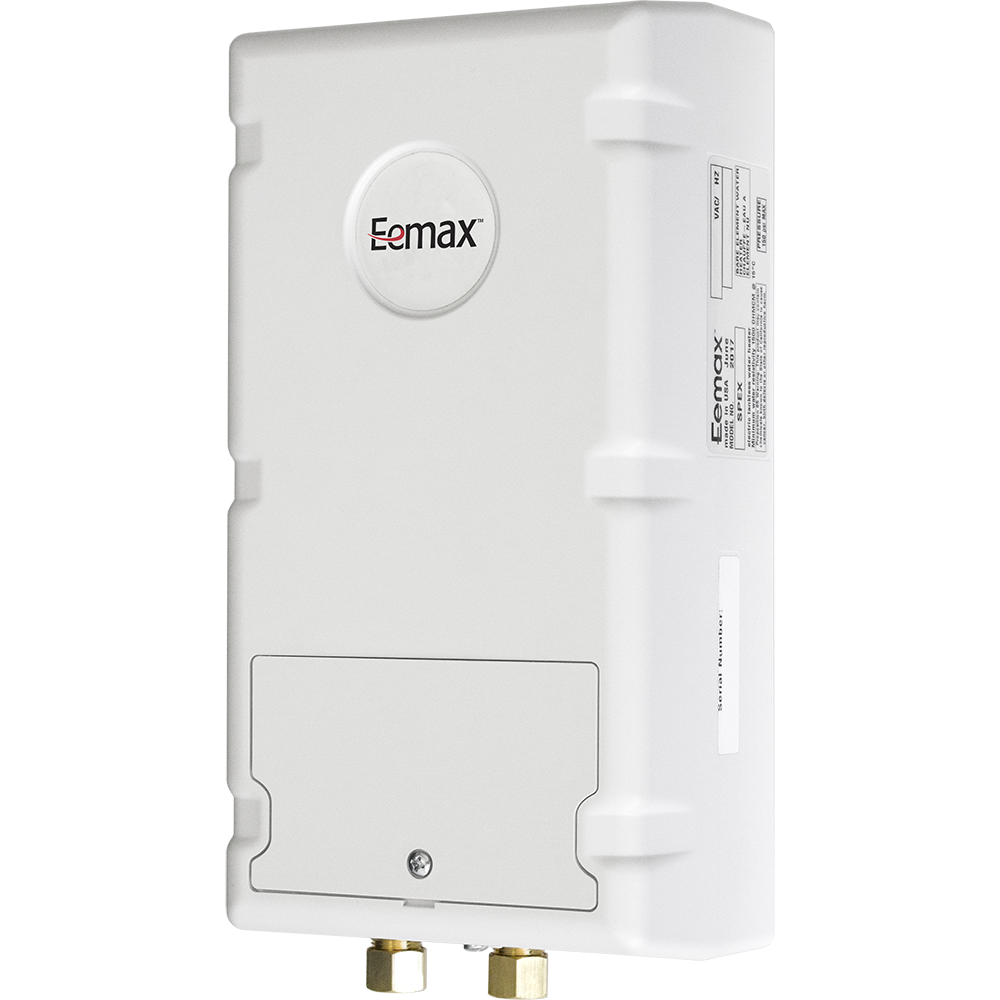

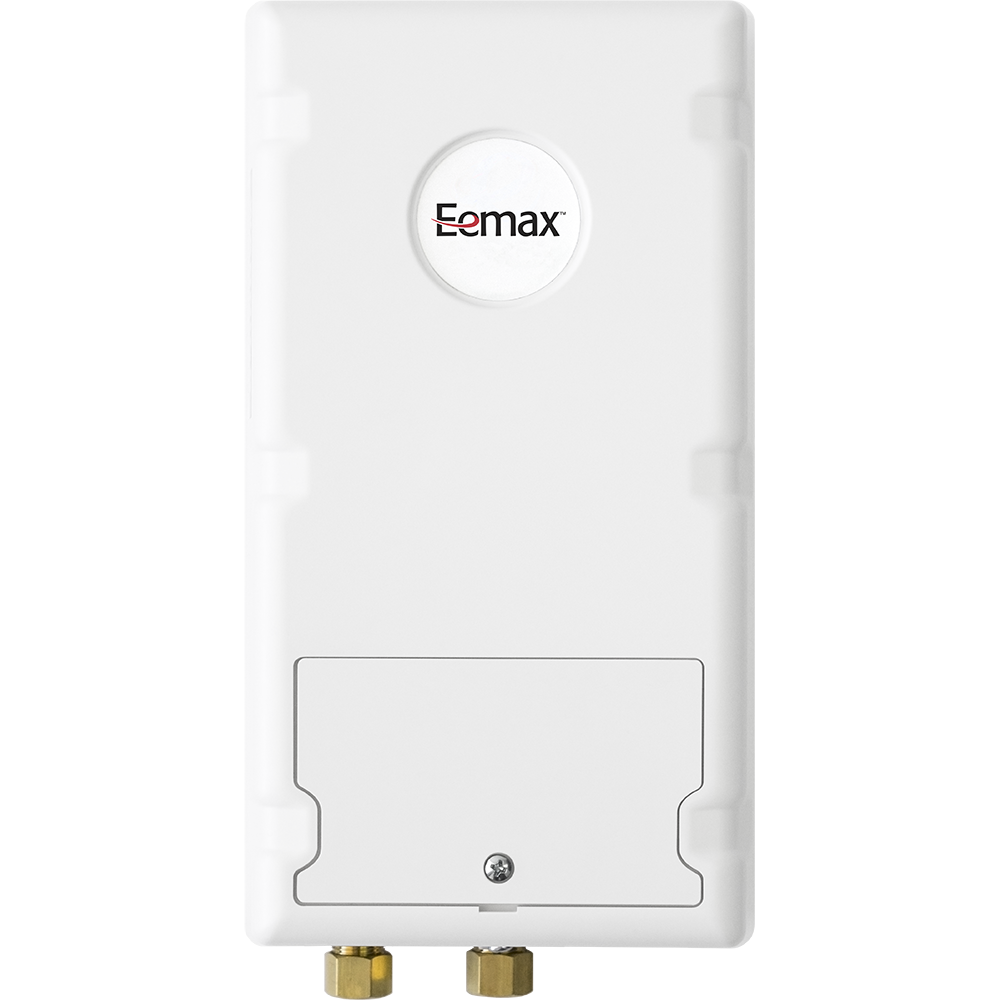

The EEMAX SPEX-55-TML LavAdvantage is a 5.5kW, 240V electric tankless water heater. This thermostatic heater is ideal for fixed or variable flow applications and features low flow activation with a 0.2 GPM turn on flow rate. It can be mounted in any orientation for flexible installation.

• Thermostatic heater ideal for fixed or variable flow applications
• Low flow activation with 0.2 GPM turn on flow rate
• Mounts in any orientation for a flexible installation

Product Highlights

Provides on-demand hot water with thermostatic control and flexible installation options, suitable for various lavatory applications.

Product Information

Standard Information

• Brand: EEMAX
• Manufacturer Part Number: SPEX-55-TML

Technical Specifications

• Power: 5.5kW
• Volts: 240V
• Phase: 1
• Recommended Wire Size: 12 AWG
• GPM Turn On: 0.2
• Minimum Operating Temp: 70
• Max Operating Temp: 140
• Minimum Operating Pressure: 35 PSI
• Max Pressure Rating: 150 PSI
• Height: 9 inches
• Width: 5 inches
• Depth: 3 inches
• Cover Material: ABS-UL 94 5VA Rated
• Element Type: Replaceable cartridge - bare wire
• Element Material: Nichrome
• Adjustable Thermostat: True
• Water Connection: 3/8"
• NPT or Compression: Compression
• Plumbing Configuration: Mutli-directional feed
• Hot or Cold Feed: Pre-heated or cold water feed
• # of Aerators Supplied: 0
• GPM Flow Rate of Aerator Supplied: 3
• Element: EX1050
• Board: EX384-240
• Relay/Contactor: EX255B
• Eco: EX278A
• Manufacturer: Eemax
• Series: LavAdvantage
• Kilo Wattage: 5.5 KW
• Working Pressure: 150 PSI
• Voltage: 240 V
• Connection Size (Inches): 3/8"
• Fitting Connection: Compression
