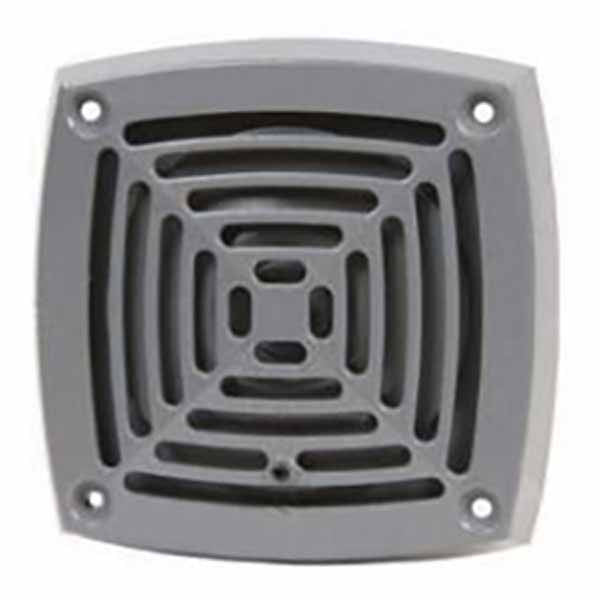

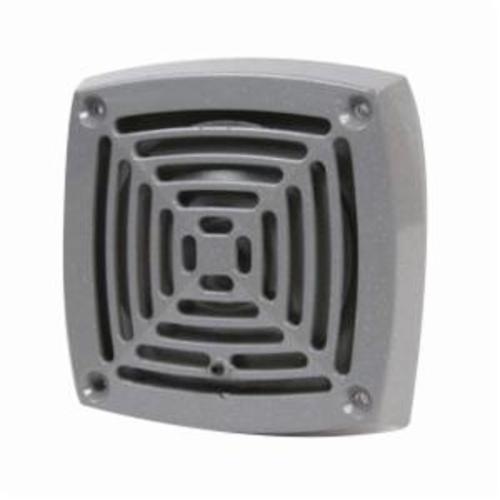

Edwards 870P-G5 Horn 24Vac Panel Mount

Product Description

The EDWARDS 870P-G5 is a low-current, high decibel AC panel mount vibrating horn designed for heavy-duty use. It features a volume adjustment and is UL listed to NEMA 4X enclosure requirements. The unit has a corrosion-resistant epoxy finish and a heavy-duty die-cast construction.

• Heavy-duty, high-decibel vibrating horn
• Corrosion-resistant epoxy finish
• Volume adjustable

Product Highlights

The EDWARDS 870P-G5 horn provides a loud, prominent tone suitable for indoor use. It operates at 24VAC and features a NEMA 4X rating.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 870P-G5
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 870P-G5
• Manufacturer: EDWARDS
• Type: Horn
• Application Type: Indoor
• Input: 24 VAC
• Mount: Panel
• Brand: EDWARDS SIGNALING
• Product Type: Horn
• Sound Style: Horn
• Overall Depth: 1-7/8 in
• Overall Length: 4-5/8 in
• Overall Width: 4-5/8 in
• Operating Voltage: 24V AC
• Operating Current: 0.630 A
• Volume Selection: Selectable
• Mounting Style: Surface Mount
• For Location: Indoor
• IP Rating: NEMA 4X
• NEMA Rating: NEMA 4X
• Sound Principle: Vibrating
• Finish: Corrosion Resistant
• Vibration: Vibrating
• Standards: UL Listed
• Alarm Volume @ 1 m - Maximum: 113 dB
• Alarm Volume @ 10 ft - Maximum: 103 dB
• Number of Sound Patterns: 1
• Current Rating: 0.63 A
• Decibel Range: 88 to 113 dB
• Decibels at 1 Meter: 113 dB
• Family Name: AdaptaHorn Family
• Features: Corrosion Resistant
• Mounting Type: Panel Mount
• Operation: Siren
• Power Rating: 15.1 VA
• Primary Type: Horn
• Series: 870/71 Series
• Sound Level: 103 dB @ 10 ft. dB
• Supply Voltage: 24 VAC
• Termination: Wire Lead
• Tone: Siren
• Model: 870P-G5
• MPN: 870P-G5
• Product Family: 870P/871P Series
• Product Category: Safety Equipment
• CUSTOM_Product Type2: Horns
