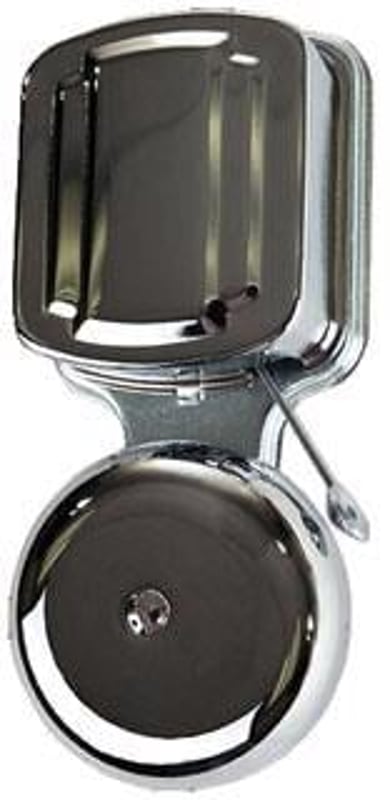

EDWARDS 740 Vibrating Bell 8-16 VAC

Product Description

The Edwards 740 is a general-purpose vibrating bell designed for use in various residential and commercial applications. This unit operates at a voltage rating of eight to sixteen VAC and can also function with three to six VDC. It has a current rating of one ampere and a power rating of seven VA. The sound intensity is measured at one hundred decibels at one meter and at ninety decibels at ten feet, making it suitable for environments requiring a loud signal.

• Application: Ideal for residential, commercial, and plant settings.
• Durable metallic housing with a chrome finish.
• Compact dimensions: 2.5 inches wide, 1.25 inches deep, and 5.75 inches high.

Product Highlights

The Edwards 740 features a high sound output and is constructed for reliability in demanding environments.

Product Information

Standard Information

• Brand: EDWARDS
• UPC: 78264025620

Technical Specifications

• Voltage Rating: 8-16 VAC, 3-6 VDC
• Current Rating: 1 A
• Power Rating: 7 VA
• Sound Intensity: 100 dB at 1 M, 90 dB at 10 Ft
• Size: 2.5 inches W x 1.25 inches D x 5.75 inches H
• Housing Material: Metallic
• Application: Residential, Commercial, Plant, OEM
• DC Coil Resistance: 1.5 Ohm
