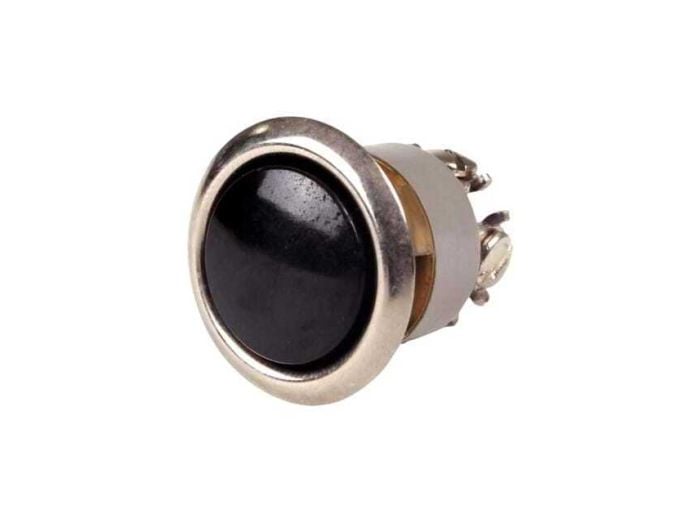

Edwards 255 Push Button SPDT LV

Product Description

The EDWARDS 255 is a low voltage, high amperage push button designed for use where the simultaneous breaking of one circuit and the making of another is required. Use wherever a low voltage, high amperage, economical push button is required. It is designed for simultaneous operation of two or three devices from one central point.

• For use wherever a low voltage, high amperage, economical pushbutton is required
• Fully insulated
• Multiple contacts

Product Highlights

The EDWARDS 255 push button is ideal for applications requiring simultaneous circuit breaking and making. Its multiple contacts and fully insulated design ensure reliable and safe operation.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 255
• Country of Origin: TW

Technical Specifications

• Manufacturer Part Number: 255
• Manufacturer: Edwards Signaling Company
• Family Series: Edwards Signaling Switches
• Description: Pushbutton
• Illuminated: No
• Mounting: 19 mm
• Max Voltage: 48 VAC
• Current Rating: 0.5 A
• Bezel: Metal Round
• Lens/Button Shape: Round Flush
• Operator Color: Black
• Terminal Type: Screw
• Comments: Screw
• Brand: Edwards Signaling
• Bezel/Housing: Metal Round
• Contact Configuration: 1NC-1NO, 1NO-1NC
• Contact Mode: Momentary
• Contact Rating: 12 V at 6 A AC, 2 A DC, 24 V at 4 A AC, 1 A DC, 48 V at 2 A AC, 0.5 A DC
• Country of Origin: TW
• Finish: Nickel Plated
• Manufacturer Name: United Technologies
• Series: 250
• Item model number: 255
