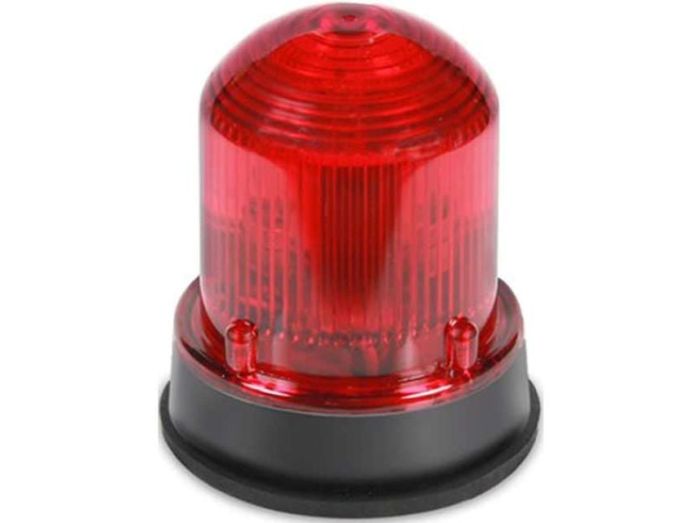

Edwards 125INCFR120A 120V Incan Beacon

Product Description

The EDWARDS 125INCFR120A is a 120V Incandescent beacon suitable for indoor and outdoor applications. This Class Incandescent beacon features a corrosion-resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from 33% glass-filled nylon, providing high resistance to heat and chemicals. The lens is made of shatter-resistant polycarbonate.

• Available in Flashing or Steady Burning Versions
• Available in 24 VDC or 120 VAC
• PLC Compatible

Product Highlights

The Edwards 125INCFR120A beacon is UL and cUL listed. It operates between -31°F to 150°F and is ideal for applications requiring a robust visual signaling device.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 125INCFR120A
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 125INCFR120A
• Manufacturer: Edwards Signaling
• Product Series: 125-INCANDESCENT
• Family Series: Edwards Signaling Visual Signaling Devices, 125-INCANDESCENT Series
• Description: Beacon, 120VAC, Red, Flashing, Gray Base, N4X, 125 Class
• Operation: Flashing
• Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Color: Red
• Lamp Type: Incandescent
• Mounting: Conduit, Panel
• Hazardous Location: No
• Explosion Proof: No
• Current Rating: 0.51 A
• Operating Temperature: -31-150 °F
• NEMA Rating: NEMA 4X
• Approvals: cUL, UL
• UNSPSC Code: 32120000
• Brand: Edwards Signaling
• Series: 125 Class Series
• Supply Voltage: 120 VAC
• Type: Flashing Light
• Connection: (1) 1/2 in. Internal and 3/4 in. External Conduit Hub
• Lens Material: Polycarbonate
• Housing: Gray Nylon Base
• Flash Rate - fpm: 65 FPM
• Rating - Voltage: 120V AC 50/60Hz
• Light Source: Incandescent
• Enclosure Application, Rating: Indoor, Outdoor
