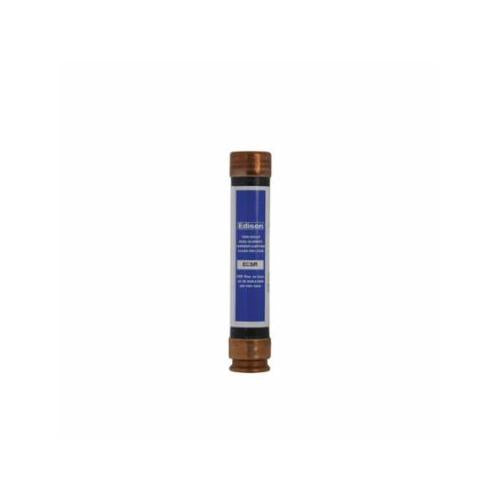

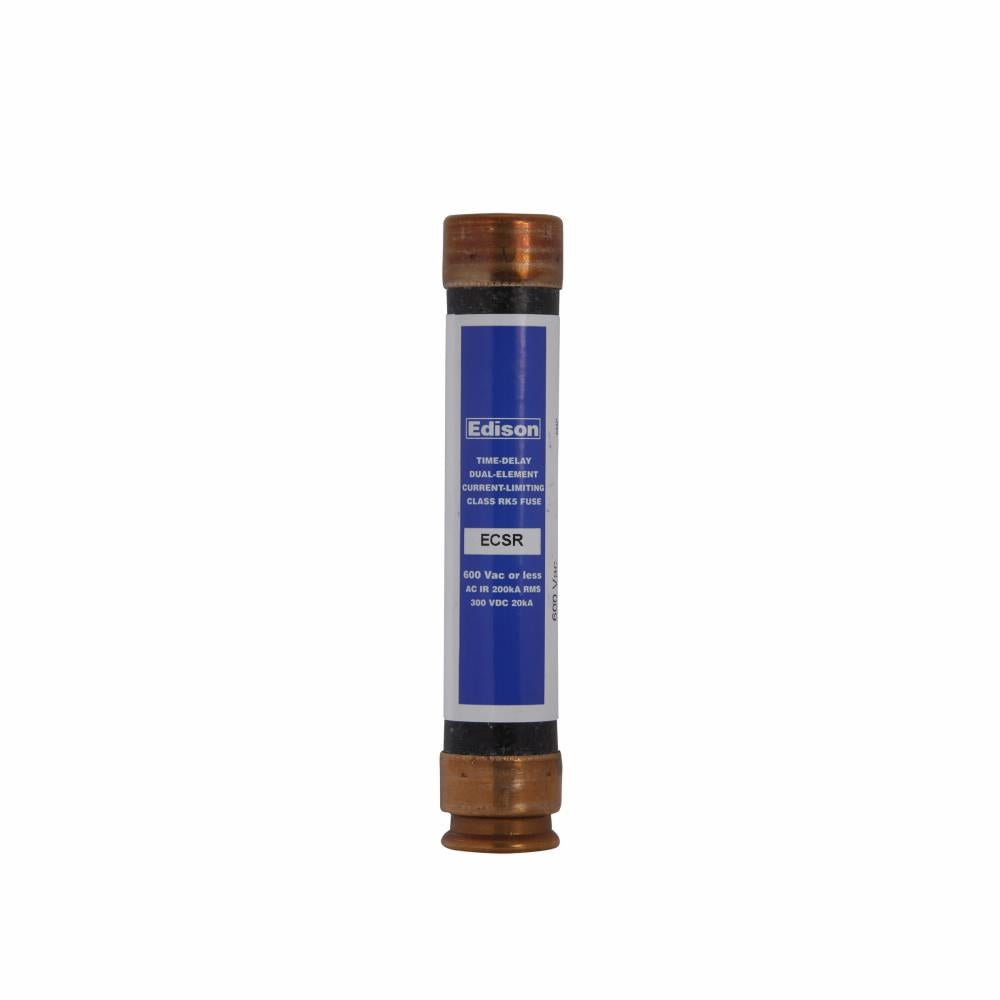

Edison ECSR50 Current Limiting Time Delay Fuse 50 Amp 600 Volt AC Bullet

Product Description

Edison's ECSR50 is a current limiting time delay fuse rated at fifty amps and six hundred volts. This fuse is designed for overcurrent protection in various electrical applications.

• Rated for AC power distribution, feeders, and branch circuits.
• True dual-element construction allows for reduced fuse ratings near full load amps.
• Response time of ten seconds at five hundred percent load.

Product Highlights

This fuse provides superior overload protection and is used widely in circuits with inductive loads. It features fiberglass construction and a ferrule terminal connection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Edison

Technical Specifications

• Body Size: 1.06 inches diameter x 5.5 inches length
• Element Type: Dual
• Indication: Non-Indicating
• Material: Fiberglass
• Mounting Type: Holder
• Response Time: 10 seconds at 500%
• Voltage Rating: 600 volts
• Amperage Rating: 50 amps
• Interrupt Rating: 200 kAIC
• Fuse Class: RK5
• Body Type: Cartridge
