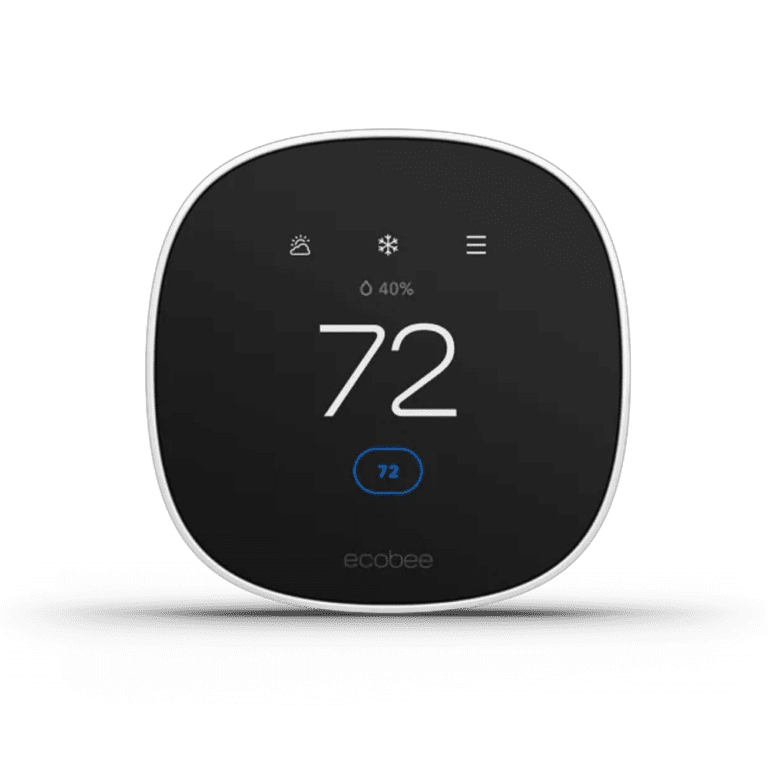

Ecobee eb-state7p-01 Smart Thermostat Lite 24V Programmable

Product Description

The ECOBEE eb-state7p-01 is a low-voltage programmable smart thermostat designed for residential HVAC applications where simplicity, reliability, and contractor-friendly installation are priorities. Hardwired and powered by 24 VAC with a power consumption of less than 3.5 VA, this thermostat operates on a touchscreen interface and supports 7-day programmable scheduling with auto changeover. It is built from thermoplastic construction and includes integrated Wi-Fi for remote access and system monitoring. Licensed HVAC technicians are the primary installer for this device, particularly in heat pump and dual-fuel system configurations requiring multi-stage control.

The eb-state7p-01 is suited for residential heat pump systems, dual-fuel setups, and conventional gas, oil, or electric heating and cooling systems. It supports up to 4 heat and 2 cool stages, making it appropriate for multi-stage system configurations. The thermostat mounts horizontally and includes humidity control capability. Its exclusive availability to trade professionals makes it a practical stock item for HVAC contractors servicing a broad range of residential equipment.

Key Features

• 7-day programmable scheduling with auto changeover for flexible temperature management
• Dual fuel compatibility supports heat pump systems paired with gas, oil, or electric backup heat
• Multi-stage control up to 4 heat and 2 cool stages
• Integrated Wi-Fi enables remote access and system diagnostics
• Touchscreen user interface for straightforward homeowner operation
• Humidity control built in for enhanced indoor comfort management
• Low power draw under 3.5 VA reduces parasitic load on the 24 VAC control circuit

Compatibility

Designed for use with heat pump systems, dual-fuel systems, and conventional gas, oil, or electric HVAC equipment requiring a 24 VAC low-voltage programmable thermostat with multi-stage heating and cooling support.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring. Always disconnect power to the air handler or furnace control board before removing the existing thermostat and making new wire connections. Verify the system wiring configuration matches the terminal designations on the eb-state7p-01 base before powering the system back on. Follow local mechanical and electrical codes, including any applicable NEC requirements for low-voltage wiring.

Technical Specifications

• Power Supply: 24 VAC
• Power Consumption: Less than 3.5 VA
• Voltage: 24 volts
• Programmability: Programmable 7 Day
• Stages: 4 Heat / 2 Cool
• Application: Heat Pump, Dual Fuel, Gas, Oil, Electric
• Changeover: Auto
• Humidity Control: Yes
• Wireless: Wi-Fi Enabled
• User Interface: Touchscreen
• Mount: Horizontal
• Material: Thermoplastic

Standard Information

• Brand: ECOBEE
• Manufacturer Part Number: eb-state7p-01
