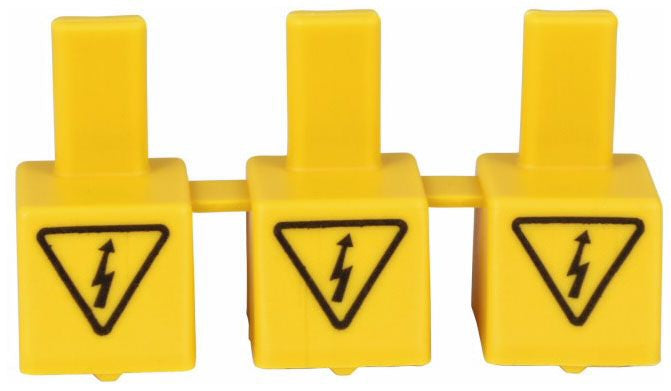

Eaton ZV-BS-UL Busbar Shroud

Product Description

The EATON ZV-BS-UL is a busbar shroud designed to provide insulation and protection for exposed busbar conductors in electrical panelboards and distribution equipment. Busbar shrouds reduce the risk of accidental contact with energized conductors during panel servicing and help meet safety requirements for electrical enclosures. This component is intended for use by licensed electricians and qualified electrical contractors working on commercial or industrial power distribution systems.

Busbar shrouds are used in panelboards, switchboards, and load centers where exposed busbars present a shock or arc-flash hazard. The ZV-BS-UL fits within EATON distribution equipment configurations where conductor insulation barriers are required by code or by the panel manufacturer. It is a common component in new panel builds and in retrofit or service situations where additional conductor protection is needed.

Key Features

• Provides insulation barrier over exposed busbar conductors
• Reduces risk of accidental contact with energized conductors during service
• UL-recognized component suitable for listed electrical assemblies
• Designed for use in panelboards and power distribution enclosures
• Compatible with EATON distribution equipment requiring busbar insulation

Compatibility

Designed as an OEM-style busbar shroud for use with EATON electrical panelboards and distribution equipment where busbar insulation barriers are required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel before handling any busbar components. Verify the shroud is fully seated and covers all intended conductor surfaces before restoring power. Follow the panel manufacturer documentation for proper placement within the enclosure.

Technical Specifications

• UPC: 01508104714

Standard Information

• Brand: EATON
• Manufacturer Part Number: ZV-BS-UL
