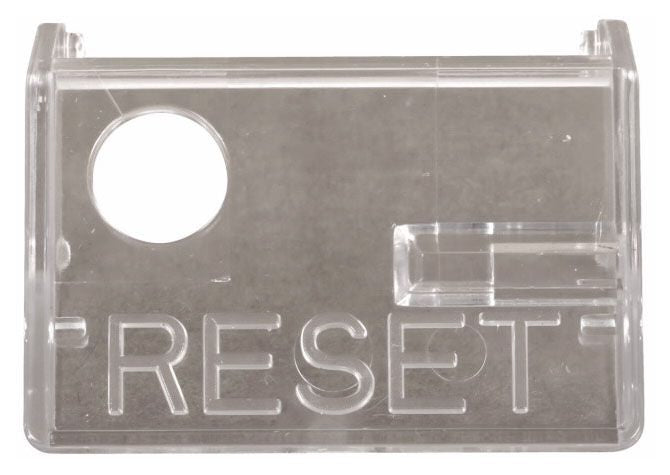

Eaton ZEB-XRB Reset Bar Type Overload Relay

Product Description

The EATON ZEB-XRB is a reset bar type accessory designed for use with overload relays in industrial and commercial electrical control systems. This component provides manual reset functionality, allowing technicians to restore overload relay operation after a trip event without requiring full disassembly of the control panel. It is a compact, low-profile part that integrates directly with compatible EATON overload relay assemblies. Licensed electricians and industrial control technicians are the primary installers of this accessory in motor control center and panel-mounted applications.

The ZEB-XRB reset bar is suited for use in motor control applications where manual reset of an overload relay is required after a fault condition. It fits within panel-mounted or DIN rail-mounted control assemblies and is appropriate for both new installations and field replacement on existing overload relay setups. The part measures 4.000 inches in length, 2.500 inches in width, and 1.000 inch in height, making it a compact fit for tight enclosure spaces.

Key Features

• Manual reset bar function restores overload relay operation after a trip event
• Compact dimensions: 4.000 x 2.500 x 1.000 inches for space-constrained enclosures
• Lightweight at 0.100 pounds for easy handling during installation
• OEM-style accessory designed for direct integration with compatible EATON overload relays

Compatibility

Designed as an OEM-style replacement or supplemental accessory for compatible EATON overload relay assemblies. Refer to the EATON product documentation for confirmed compatible relay series before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before servicing any overload relay component. Verify the reset bar seats fully and engages the relay mechanism before restoring power. Do not force the reset bar into position if resistance is felt, as this may indicate an underlying fault condition that has not been resolved.

Technical Specifications

• Dimensions (L x W x H): 4.000 x 2.500 x 1.000 inches
• Weight: 0.100 pounds
• UPC: 78668542362

Standard Information

• Brand: EATON
• Manufacturer Part Number: ZEB-XRB
