Eaton XTSC001BBA Manual Motor Controller 0.63 – 1.0 Amps

Product Description

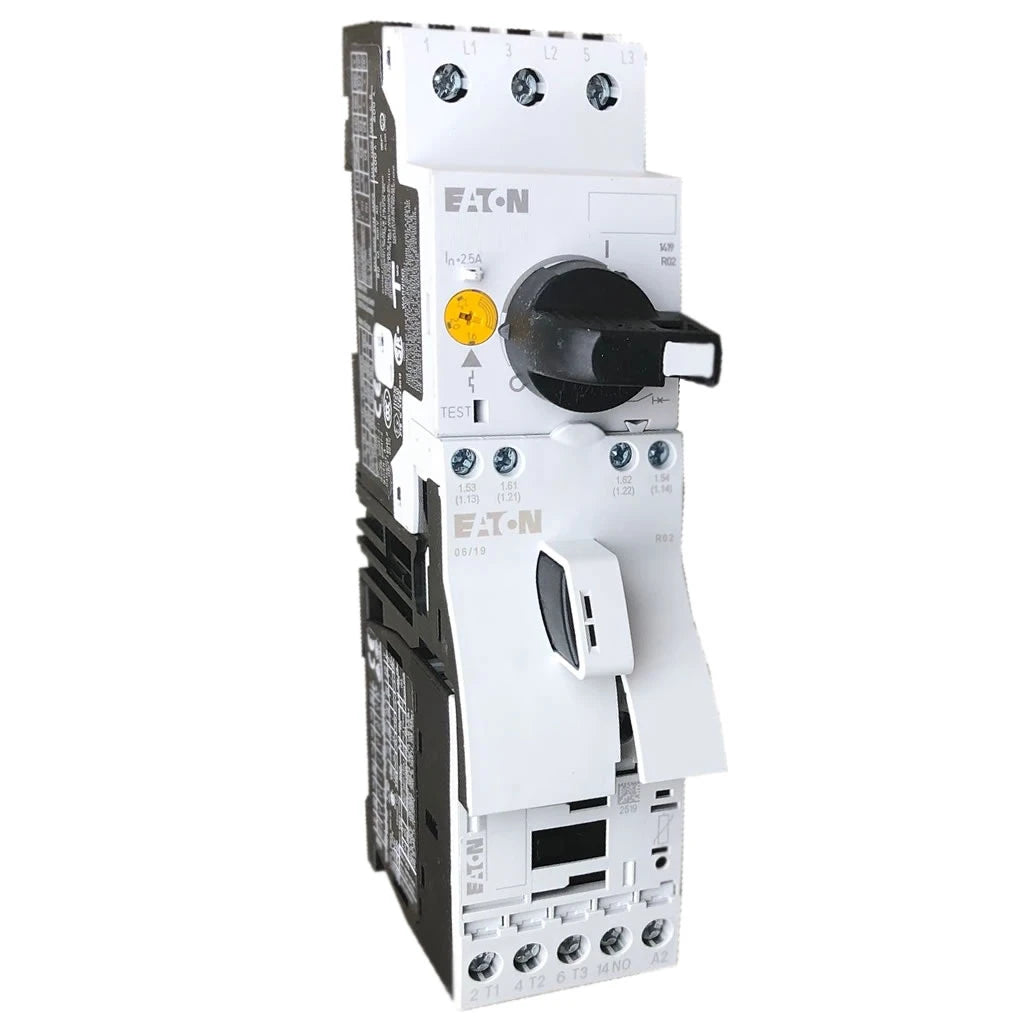

The Eaton XTSC001BBA is a factory-assembled XT IEC combination motor starter. This non-reversing manual motor controller integrates a manual motor protector with a 3-pole contactor to provide a complete motor protection solution, combining motor disconnect, thermal overload protection, and remote control in a single 45mm frame.

• Integrated Assembly: Comprised of the XTPR001BC1 Manual Motor Protector and the XTCE007B10A 7A Contactor.
• Advanced Motor Protection: Features Class 10 thermal overload protection and phase loss sensitivity to ensure maximum motor life.
• Safety Focused: Built-in ON/OFF rotary handle with lockout/tagout (LOTO) provisions and visible trip indication.

Product Highlights

The Eaton XTSC001BBA manual motor controller provides a complete motor protection solution with its integrated design and safety features. It is certified under UL 508, CSA, CE, and IEC/EN 60947 standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTSC001BBA
• Country of Origin: United States

Technical Specifications

• FLA Adjustment Range: 0.63 – 1.0 Amps
• Coil Voltage: 110V 50Hz / 120V 60Hz AC
• Phase: 3-Phase
• Auxiliary Contacts: 1 N.O. / 1 N.C. (Front Mounted)
• Short Circuit Release: 14 Amps
• Frame Size: 45 mm (B-Frame)
• Brand: Eaton - Cutler Hammer
• Contact Configuration: 1 NO, 1 NC
• Control Voltage: 110 V
• Enclosure Type: Open
• Family Name: XT IEC Power Control Family
• For Use With: 3-Phase Motors
• Frame Type: B Frame (45mm)
• Horsepower Rating: 1/2 hp
• Horsepower, Max, 3 Phase, at 480 V: 0.5
• Horsepower, Max, 3 Phase, at 600 V: 0.5
• IP Rating: IP20
• Manufacturer Part Number: XTSC001BBA
• Motor FLA Range: 0.63-1 A
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Overall Depth: 178.5 mm
• Overall Length: 45 mm
• Overall Width: 95.7 mm
• Power Rating: 250 W
• Primary Type: DOL Starter
• Series: XT IEC Series
• Special Features: Visible Trip Indication
• Standards: CE, IEC, UL
• Starter Type: IEC Starter
• Supply Voltage: 120 VAC
• Type: Motor
• UPC Code: 782116602384
• Voltage Rating: 690 V
• UNSPSC: 39121521
• Reset Type: Manual
• Connection Type: Mechanical
• Frequency Rating: 50/60
• Includes: XTPAXTPCB Mechanical Connection Element
• Control Type: ON/OFF Rotary Handle
• Amperage Rating: 1
