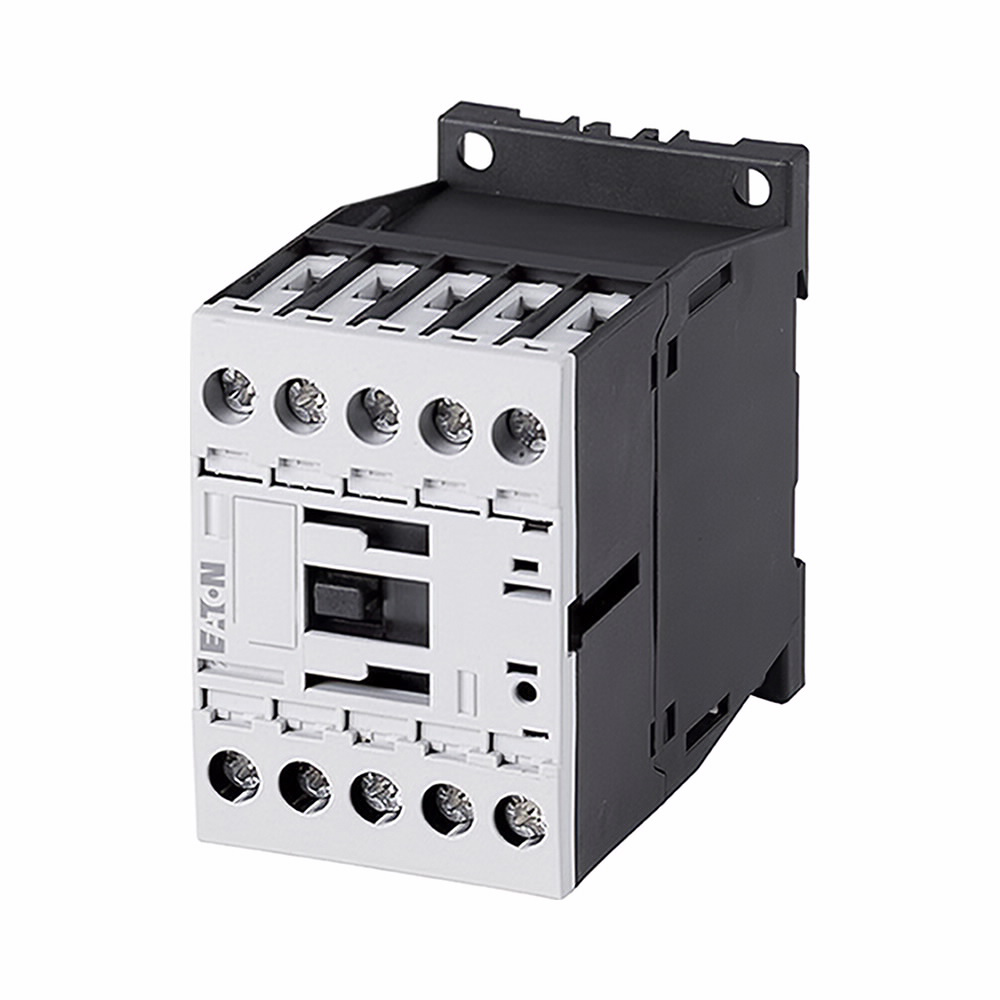

Eaton XTRM10A40TD Mini Control Relay 10A 4NO 24VDC

Product Description

Eaton XTRM10A40TD Mini Control Relay is designed for use in various control applications. The relay features a miniature design with screw terminals, making it suitable for tight spaces. It operates on a twenty-four volt direct current and has a thermal rating of ten amperes. This model includes a contact configuration of four normally open (NO) contacts and supports different voltages for various applications.

• Mini control relay with screw terminals
• 4NO contact configuration
• 24 VDC coil voltage

Product Highlights

This relay can be used in commercial and institutional buildings. It allows control of larger contactors directly from a PLC, which is essential for reliable automation.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: XTRM10A40TD

Technical Specifications

• Frame Size: 45 mm
• Height: 2 inches
• Length: 2.5 inches
• Weight: 0.3 lb
• Coil Voltage: 24 VDC
• Contact Configuration: 4 NO
• Amperage: 10 Amps, 6 Amps at 220/240 VAC
• Operating Temperature: -13 to 122 degrees Fahrenheit
