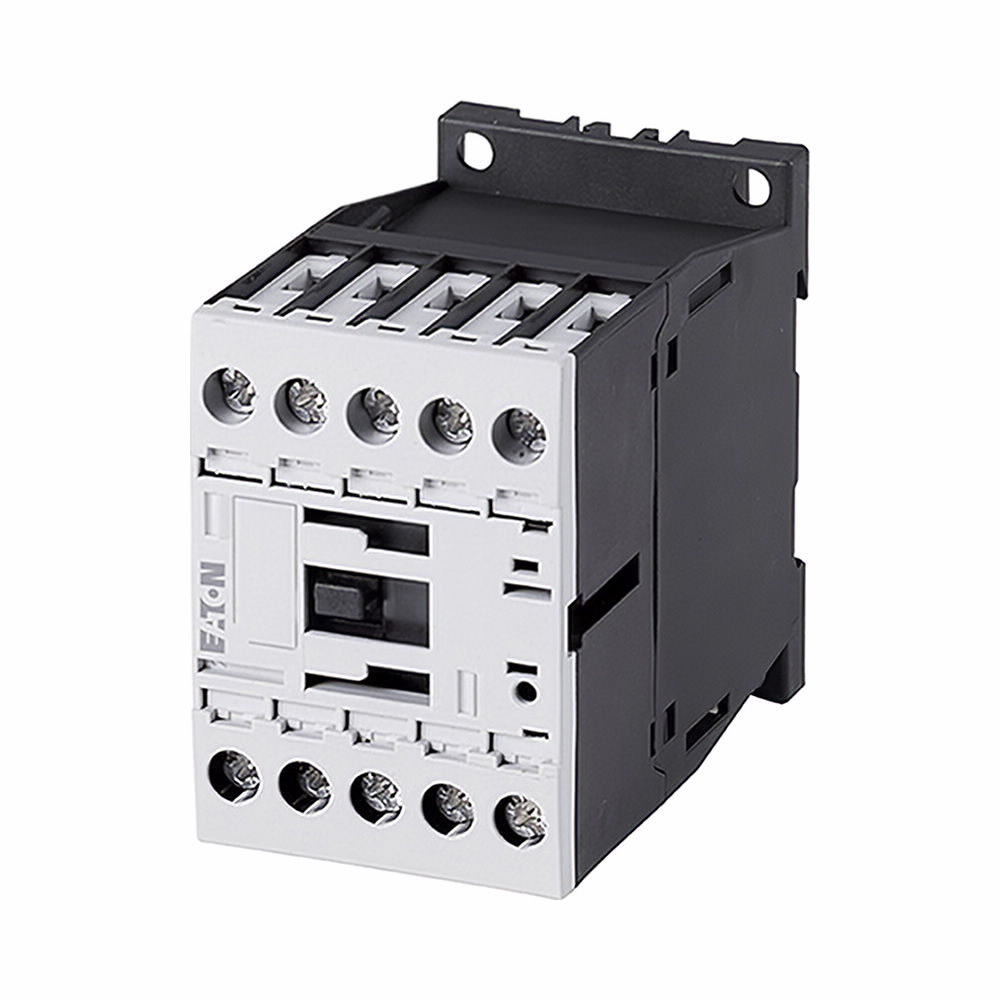

Eaton XTRM10A22B Mini ctl rl 10A FR A

Product Description

The Eaton XTRM10A22B is a miniature control relay designed for efficient operation in industrial settings. It features a screw terminal design and has a frame size of 45 mm.

• 10 amp thermal rating
• 2 normally open and 2 normally closed contact configuration
• Coil voltage options of 220 volts at 50 Hz or 240 volts at 60 Hz

Product Highlights

This control relay is suitable for various applications, including commercial and institutional buildings. Its compact size and ease of installation make it a reliable choice for controlling circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: XTRM10A22B

Technical Specifications

• Type: Miniature
• Frame Size: 45 mm
• Width: 2.165 inches
• Height: 1.811 inches
• Length: 2.362 inches
• Weight: 0.4 lb
• Coil Voltage: 220/240 VAC
• Contact Configuration: 2NO, 2NC
• Amperage Rating: 10 A
• Mounting Type: DIN Rail
• Contact Rating: 6 A at 240 VAC, 2.5 A at 24 VDC
• Frequency Rating: 50/60 Hz
• Temperature Rating: -13 to 122 degrees Fahrenheit
• Number of Pins: 10
• Enclosure Type: IP20
• Series: XT Series
