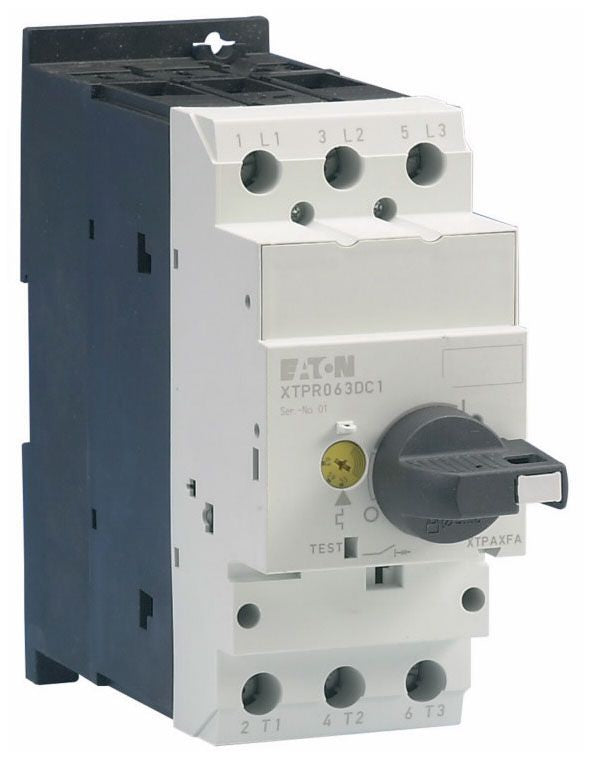

Eaton XTPR063DC1 Manual Motor Protector

Product Description

The EATON XTPR063DC1 is a manual motor protector designed to provide overcurrent and short-circuit protection for three-phase and single-phase motors in industrial and commercial electrical systems. Manual motor protectors combine the functions of a circuit breaker and a motor disconnect switch in a single compact device, allowing a licensed electrician or industrial maintenance technician to isolate and protect motor branch circuits without requiring a separate overload relay. The XTPR063DC1 fits into motor control applications where reliable, direct manual operation and built-in trip protection are required.

This manual motor protector is suited for use in motor control centers, control panels, and machinery enclosures across light industrial, commercial, and process control environments. It is typically installed as part of a motor starter assembly or as a standalone motor branch circuit protective device. Electricians and panel builders use this type of device where NEC Article 430 motor branch circuit protection requirements must be met in a compact, integrated format.

Key Features

• Combines manual disconnect and overcurrent protection in a single device
• Suitable for three-phase and single-phase motor branch circuit applications
• Direct manual operation with a rotary handle mechanism
• Compact form factor for use in motor control centers and control panels
• Provides short-circuit and overload trip protection for connected motors

Compatibility

Designed as an OEM-style manual motor protector for use in industrial motor control and panel board assemblies requiring branch circuit motor protection.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC Article 430 and all applicable local codes. Disconnect and lock out all upstream power sources before mounting, wiring, or servicing this device. Verify that the motor full-load amperage and short-circuit current rating of the installation are within the device ratings before energizing. Do not exceed the device ratings or bypass the built-in trip mechanism.

Technical Specifications

• UPC: 01508154844

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTPR063DC1
