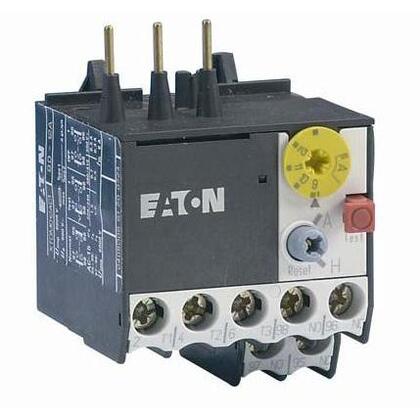

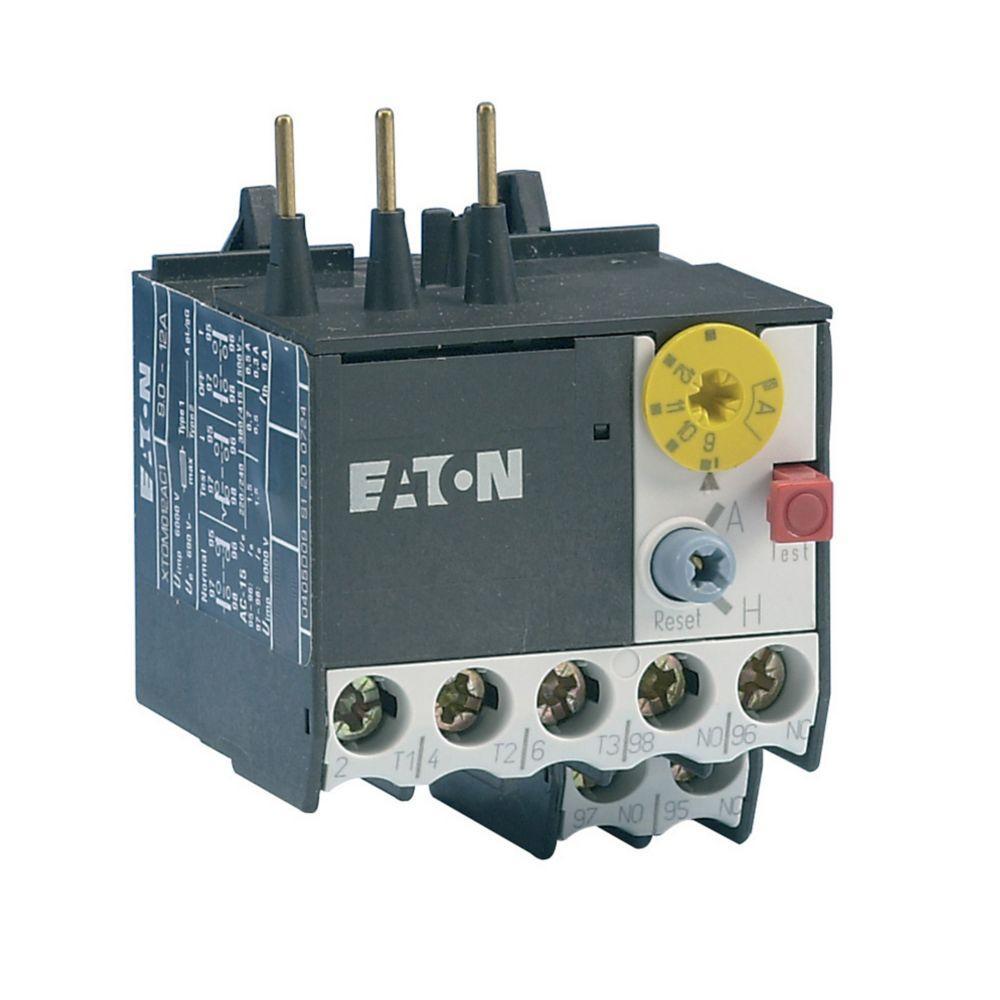

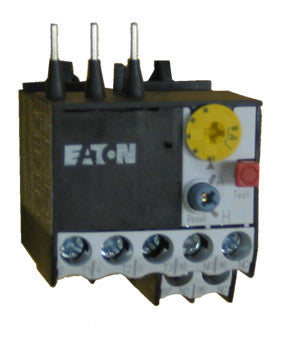

Eaton XTOM006AC1 XT IEC control relay 4-6A

Product Description

The Eaton XTOM006AC1 XT IEC control relay with an adjustable AMP range from 4 to 6 AMPS. It is for use with the 3 pole Eaton XTMC9A10 and XTMC9A01 miniature contactors. Each overload comes standard with an automatic or manual reset, push-to-test button and screw terminals for easy installation.

• Phase failure sensitivity
• Direct mount to XTMC and XTMF mini contactors
• Trip Class 10

Product Highlights

The XTOM006AC1 includes auxiliary contacts, one normally open and 1 normally closed, that can be wired for signaling purposes or to cut power to the coil in an overload situation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOM006AC1
• Country of Origin: United States

Technical Specifications

• Catalog Number: XTOM006AC1
• EAN: 4015080145653
• Product Length/Depth: 1.85 in
• Product Height: 2.36 in
• Product Width: 2.56 in
• Product Weight: 0.2 lb
• Compliances: RoHS Compliant, ATEX Compliant, CE Marked
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Product Type: Control relay
• Type: Thermal, IEC, Overload Relay
• AMP Range: 4 to 6 AMP
• Reset: Manual or Automatic
• Auxiliary contacts: 1 N.O. / 1 N.C.
• Terminals: Screw
• Mounts to: XTMC9A10 or XTMC9A01
• Series: XT IEC Series
• Amperage Rating: 4 to 6 A
• Contact Form: 1NC-1NO
• Contact Rating: 1.5 A at 240 VAC
• Mounting Type: Surface
• Enclosure Type: IP20
• Temperature Rating: 23 to 122 deg F
• Dimensions: 2.55 in H x 1.77 in W
• Manufacturer Part Number: XTOM006AC1
• Manufacturer: Eaton - Cutler Hammer
• Minimum Operating Temperature: -5 °C
• Maximum Operating Temperature: 50 °C
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Style: Panel Mount
• UPC Code: 4015080145653
• Special Features: Manual and Automatic Reset by Selector Switch, Test or Off Button, Trip- Free Release
• Temperature Operating Range: -5 to 50°C °C
• Relay Type: Mini Overload
• Alternate Mfr Part Number: XTA291935
• Function: Overload
• Contacts: 1 NO-1 NC
• Current Rating: 4-6 A
• For Use With: XTMC Mini Contactor, XTMF Mini Contactor
• Family Name: XT IEC Power Control Family
• Contact Configuration: 1 NO, 1 NC
• Amps: 6
• Poles: 3
• Amps Range: 4 - 6
