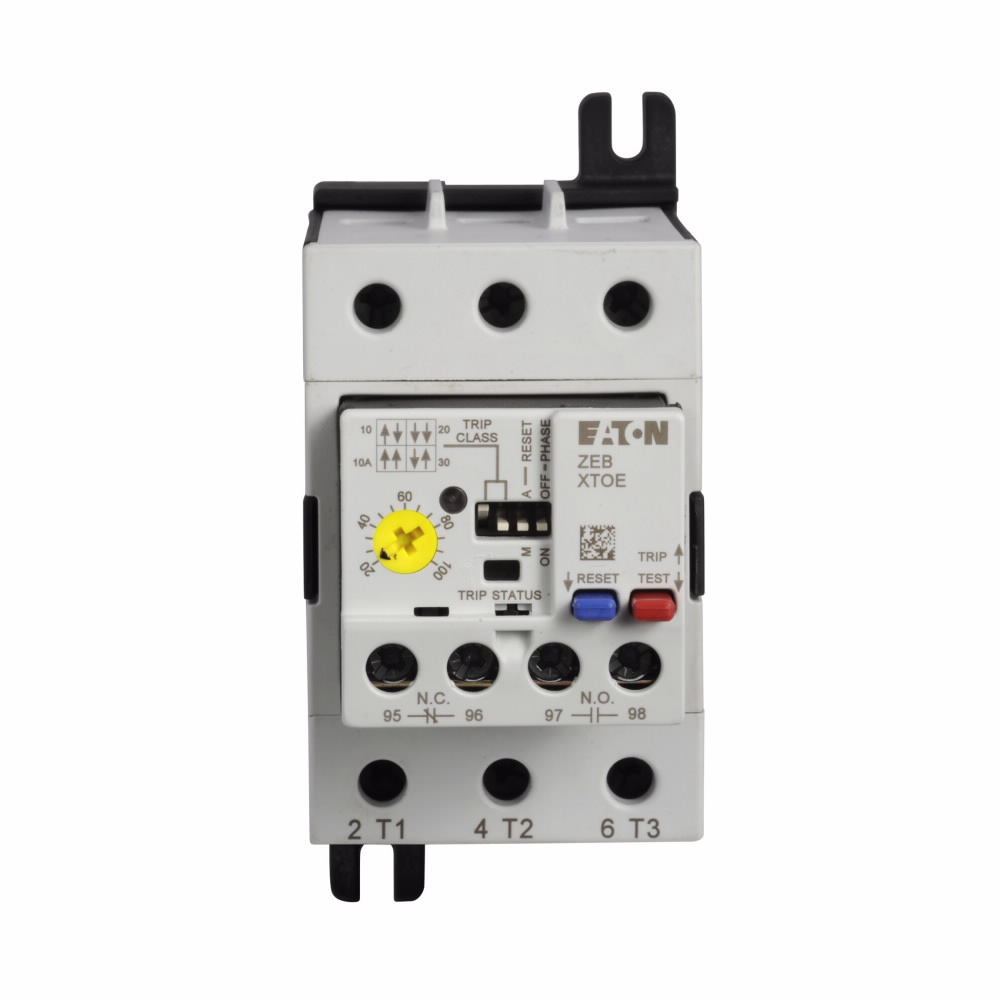

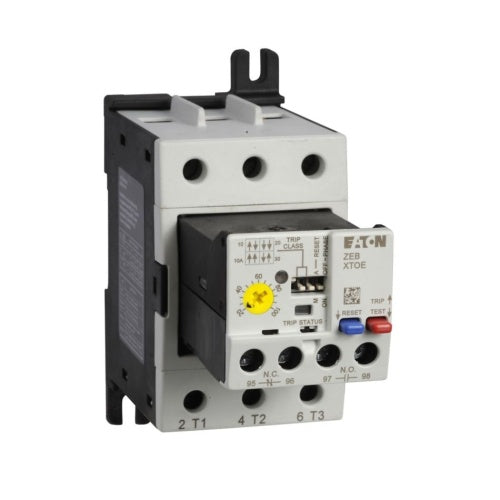

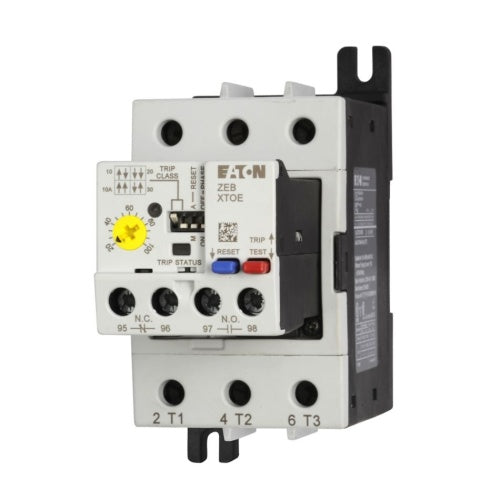

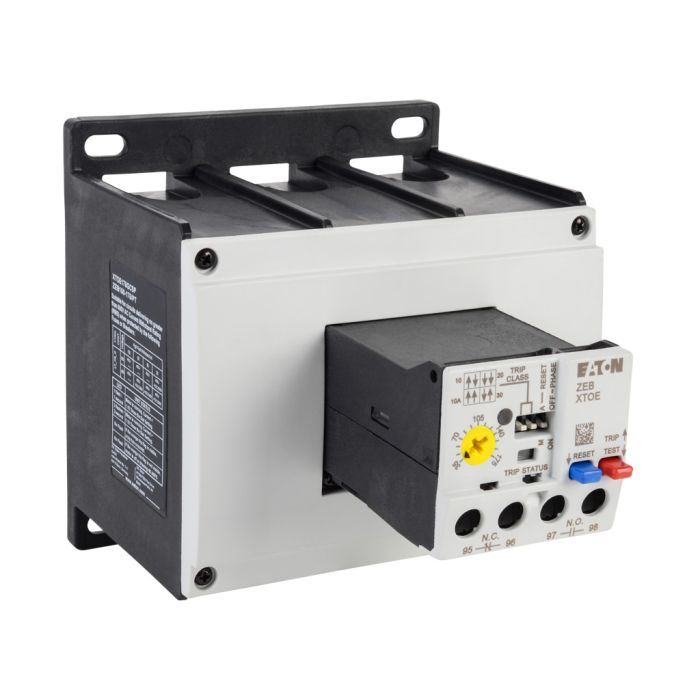

Eaton XTOE175GCSP Electronic Overload Relay 35 to 175 A

Product Description

The Eaton XTOE175GCSP is a C440 electronic overload relay from the XT series. This IEC relay offers reliable and accurate electronic motor protection. Designed for easy selection, installation, and maintenance, it provides a flexible and intelligent solution for various applications. It has a 35-175A adjustable range and a 105mm frame.

• Electronics accurately identify excessive current or phase loss
• Integral ground fault protection supporting true simultaneous ground fault protection and communications
• Wide FLA adjustment (5:1) and selectable trip class improves return on investment

Product Highlights

Provides reliable, accurate, and value-driven protection and communications capabilities in a single compact device.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOE175GCSP
• Country of Origin: DOMINICAN REPUBLIC

Technical Specifications

• Type: Electronic Overload Relay
• Brand: Eaton
• Frame: 105 mm
• Height: 6 Inch
• Length: 6.2 Inch
• Trip Type: Selectable 10 A, class 10 ,20, 30
• Product UPC: 78668553326
• 12-Digit UPC: 786685533261
• Applications: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Mounting Type: Pass Through/Separate
• Catalog Number: XTOE175GCSP
• Product Length/Depth: 6.2 in
• Product Width: 4.33 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Electronic overload relay
• Overload range: 35-175A
• Mounting method: Separate
• Relay Load Amperage: 10 Amp
• Manufacturer: Eaton
• Relay UL Rating: CSA Certified
• Relay Mounting: Separate
• Component: Electronic Overload Relay
• UNSPSC: 39122330
• Application: Commercial, Institutional Buildings and Structures
• Coil Voltage: 600 VAC 12 VDC
• Display Type: LED
• Terminal Type: Screw
• Contact Rating: 5 A at 690 VAC
• Enclosure Type: NEMA 4/IP20
• Frequency Rating: 50/60
• Temperature Rating: -13 to 149
• Series: XTOE
• Dimensions: 6.2 in L x 4.33 in W x 6 in H
• Amperage Rating: 35 to 175
